6-69
3-11. FE OSC CHECK
Purpose : Check the oscillating frequency and level of
the flying erase (FE) signal.
Adjustment error : If REC-PAUSE recording is repeated, un-
erased area is left in the junctions between the
editings which results in increase of noise or
previous picture can be seen.
Mode CAM-REC
Signal Any signal
Measurement Point CN101 pin !§
Measuring Instrument Oscilloscope and frequency counter
Adjustment Page —
Adjustment Address —
Specification Value A=7.0Vp-p or more (MP mode)
A=6.0 ± 1.0Vp-p (ME mode)
f=7.2 ± 0.5MHz (MP/ME mode)
Adjustment procedure:
Order Page Address Data Procedure
1 Insert a normal MP type tape.
2 Make a recording.
3 Check that the FE signal level satisfies the specification.
4 Check that the FE signal frequency satisfies the specification.
5 Insert a normal ME type tape.
6 Make a recording.
7 Check that the FE signal level satisfies the specification.
8 Check that the FE signal frequency satisfies the specification.

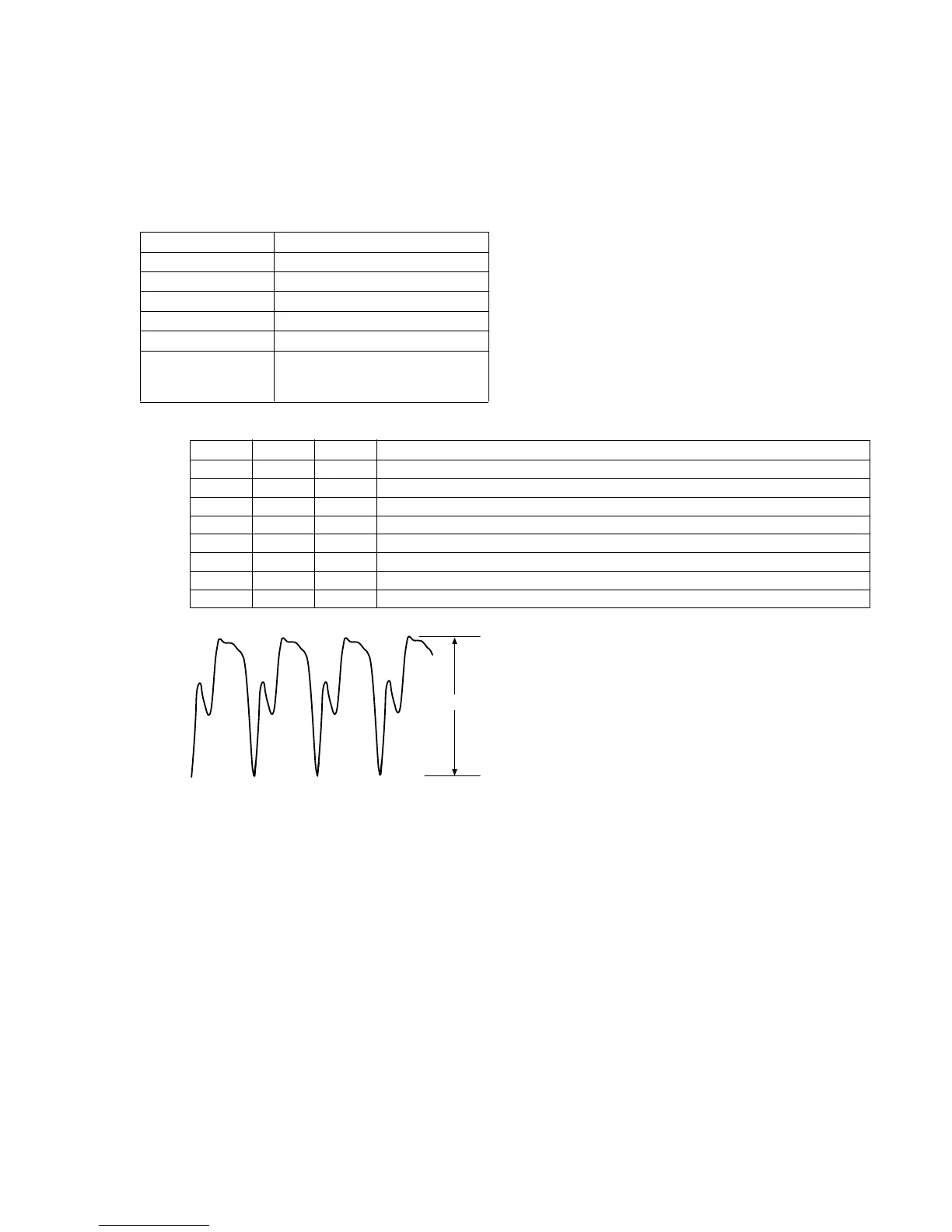

A
f=7.2 ±0.5MHz
To Next Page
