Sony CCD-TRV32 - 1). Removal of Evf Block Assembly

2-5

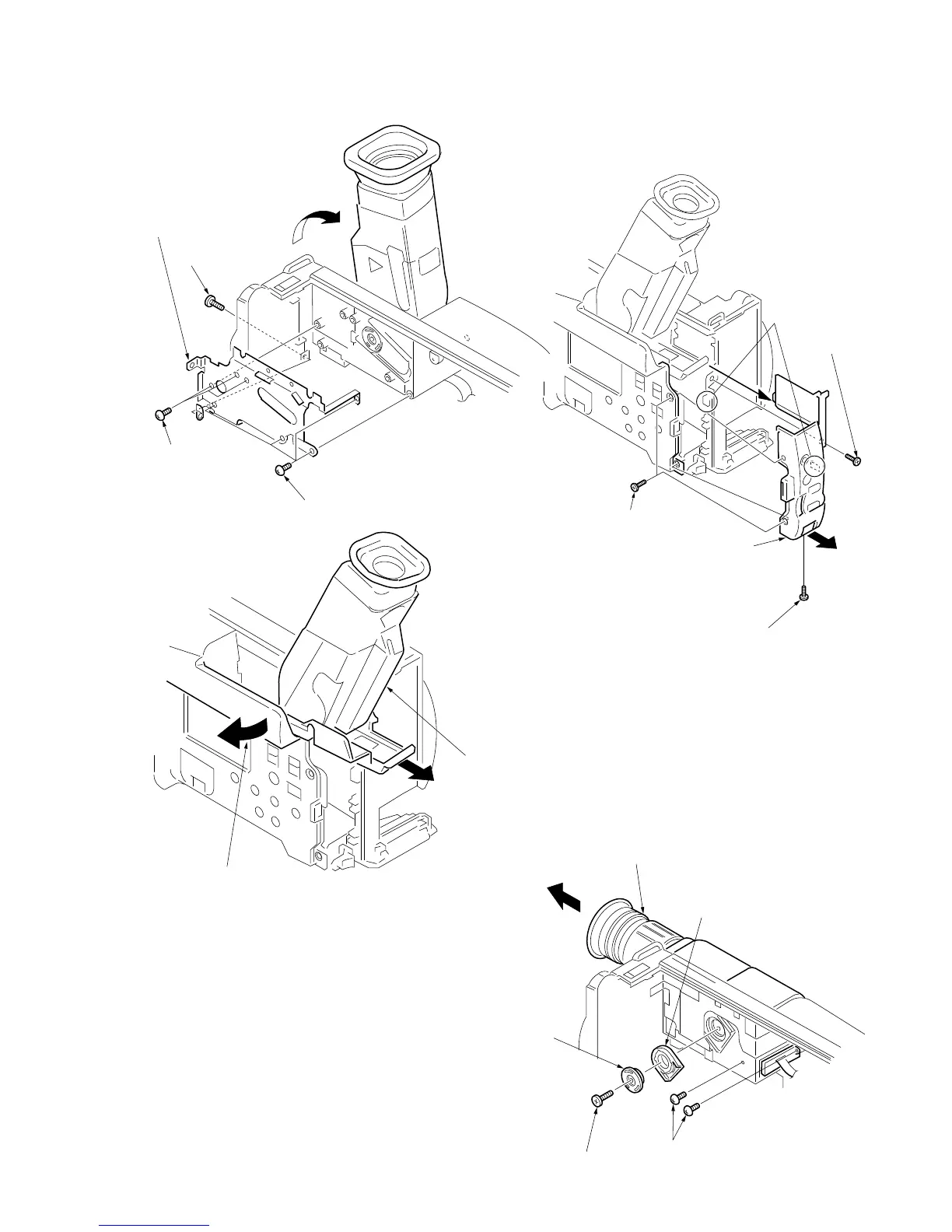

2-8(1).REMOVAL OF EVF BLOCK ASSEMBLY (EXCEPT TRV14E/TRV24E MODEL)
5
3
Screws (B2 × 5)
2 Screws (B2 × 5)
7 Screws (M2 × 4)
6 Screw
(M2
× 4)
EVF block
assembly
!º Remove the EVF block assembly by 
opening here slightly in the direction af arrow.
9 Sub cabinet (R)
assembly
(It is locked by a claw.)

8
Screw (M2 × 4)
claw
1 Screw (M2 × 4)
4 Tilt reinforcement
2-8(2).REMOVAL OF EVF BLOCK
ASSEMBLY (TRV14E/TRV24E MODEL)
5 EVF block assembly
2 Rotary
flange
1 Screws (B2 × 8)
3 Screw
(B2
× 5)
4 Slider flange
