Sony CCD-TRV32 - 1). Removal of Pd-76;77 Board (Except Trv14 E;Trv24 E Model); 2). Removal of Sd-24;25 and Pd-74;75 Board

2-9

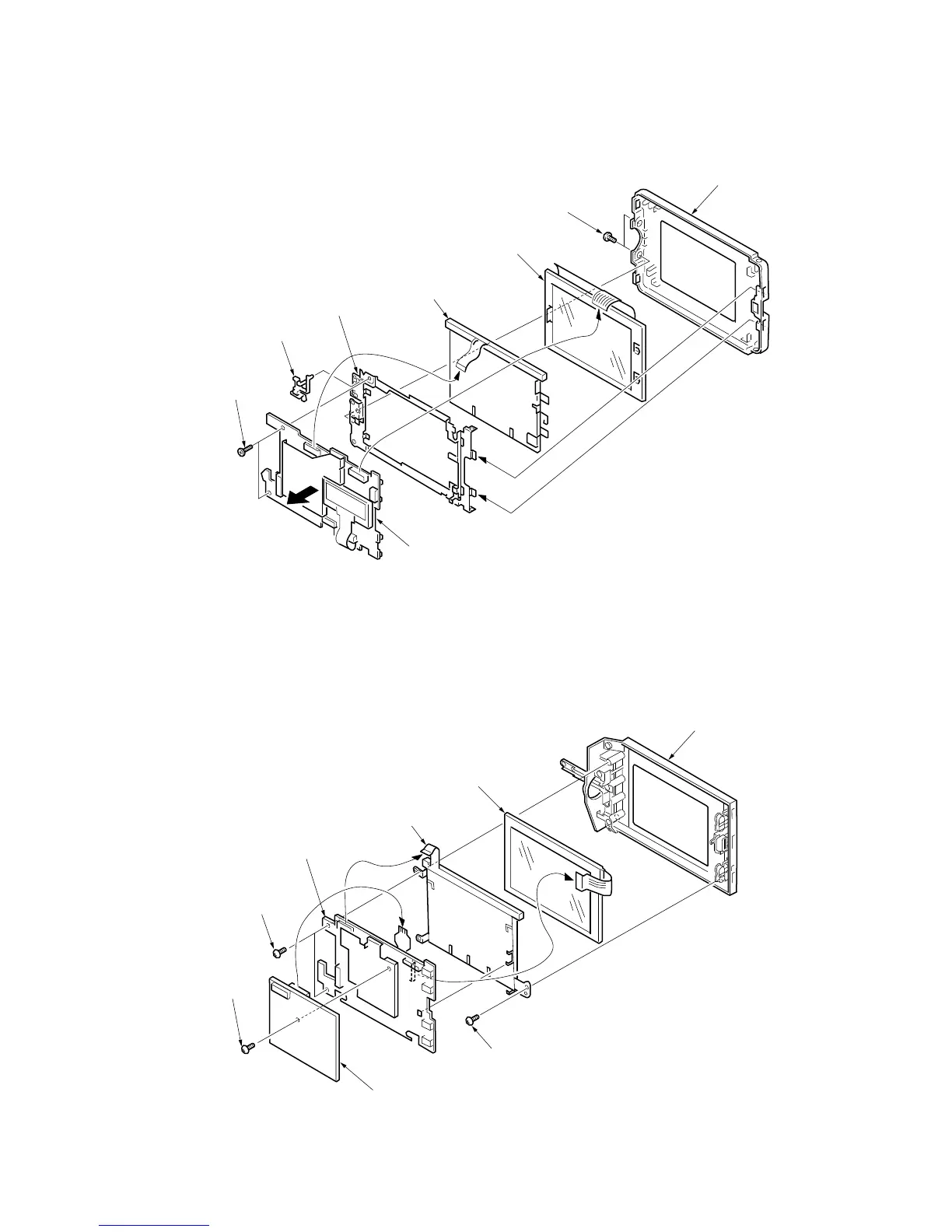

2-11(1). REMOVAL OF PD-76/77 BOARD (EXCEPT TRV14E/TRV24E MODEL)
2-11(2). REMOVAL OF SD-24/25 AND PD-74/75 BOARD (TRV14E/TRV24E MODEL)
2 Screws
(M2
× 3)
3
9
PD-76/77 board
8 Tilt sensor
7 Panel frame
6 Fluorescent cold 
cathode tube
5 Liquid cryst 
indicator module
1 Screws
(M2
× 4)
4 P cabinet (M) assembly
SD-24
SD-25
BOARD
PD-74
PD-75
1 Screw
(M2
× 3)
2 SD-24/25 board
3 Screws
(B2
× 5)
8 PD-74/75 board
7 Fluorescent cold 
cathode tube
6 Liquid cryst 
indicator module
4 Screw
(B2
× 5)
5 P cabinet (M) assembly
