Sony CCD-TRV32 - Page 35

2-10

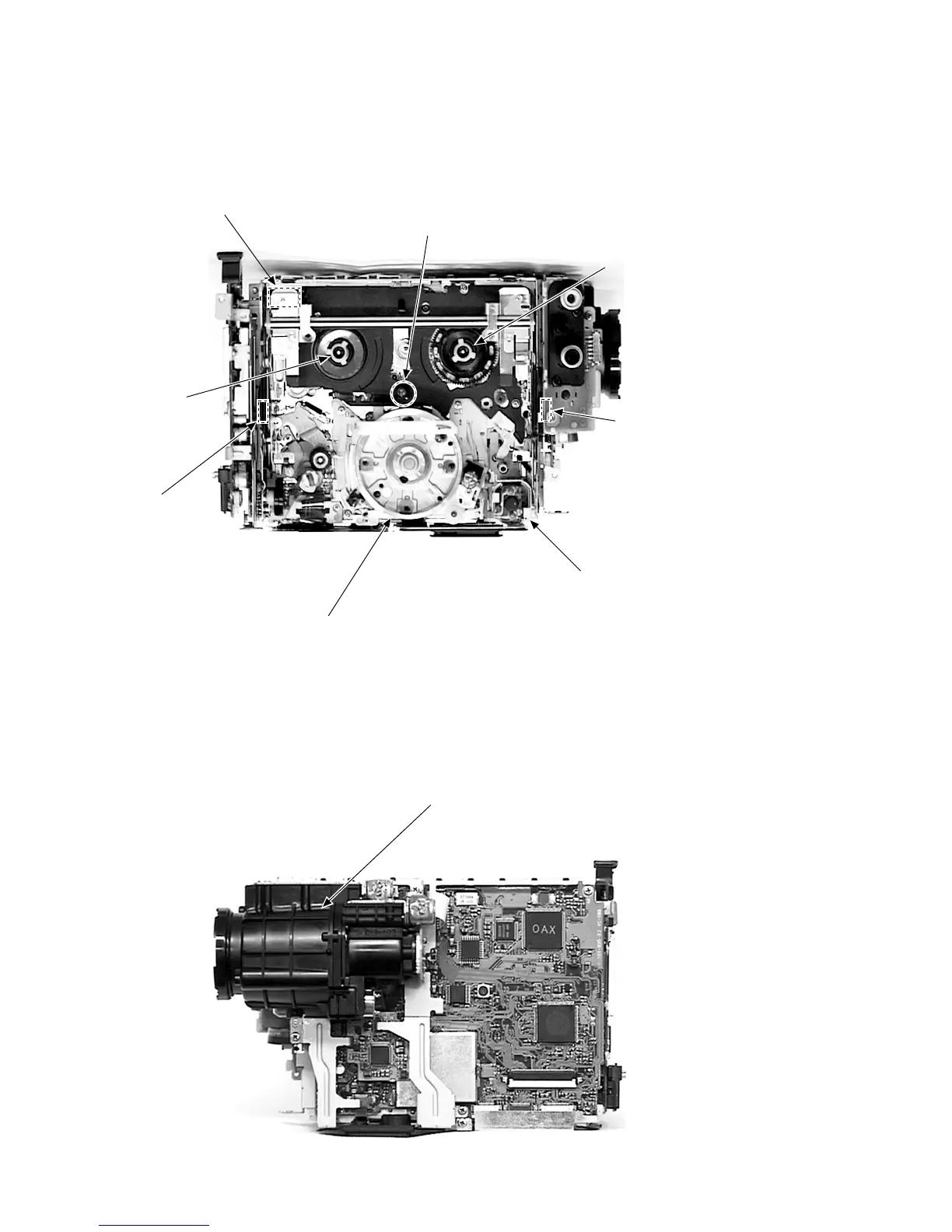

2-12.INTERNAL VIEWS
— LEFT SIDE —
— RIGHT SIDE —
ZOOM LENS (LSV-510A)
8-848-710-01
S001
REC PROOF SWITCH
1-692-614-11
D001
DIODE GL453S
8-719-988-42
S REEL DECK ASSY
X-3945-397-1
Q002
PHOTO TRANSISTOR PT4850F
8-729-907-25
Q001
PHOTO TRANSISTOR
PT4850F
8-729-907-25
T REEL DECK ASSY
X-3945-398-1
M901
DRUM BLOCK ASSY (DGH-0D4A-R)
A-7048-849-A (NTSC)
DRUM BLOCK ASSY (DGH-0D5A-R)
A-7048-851-A (PAL)
M903
LOADING MOTOR
X-3945-401-1
