Sony CCD-TRV32 - Cassette Compartment Block Section

5-11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

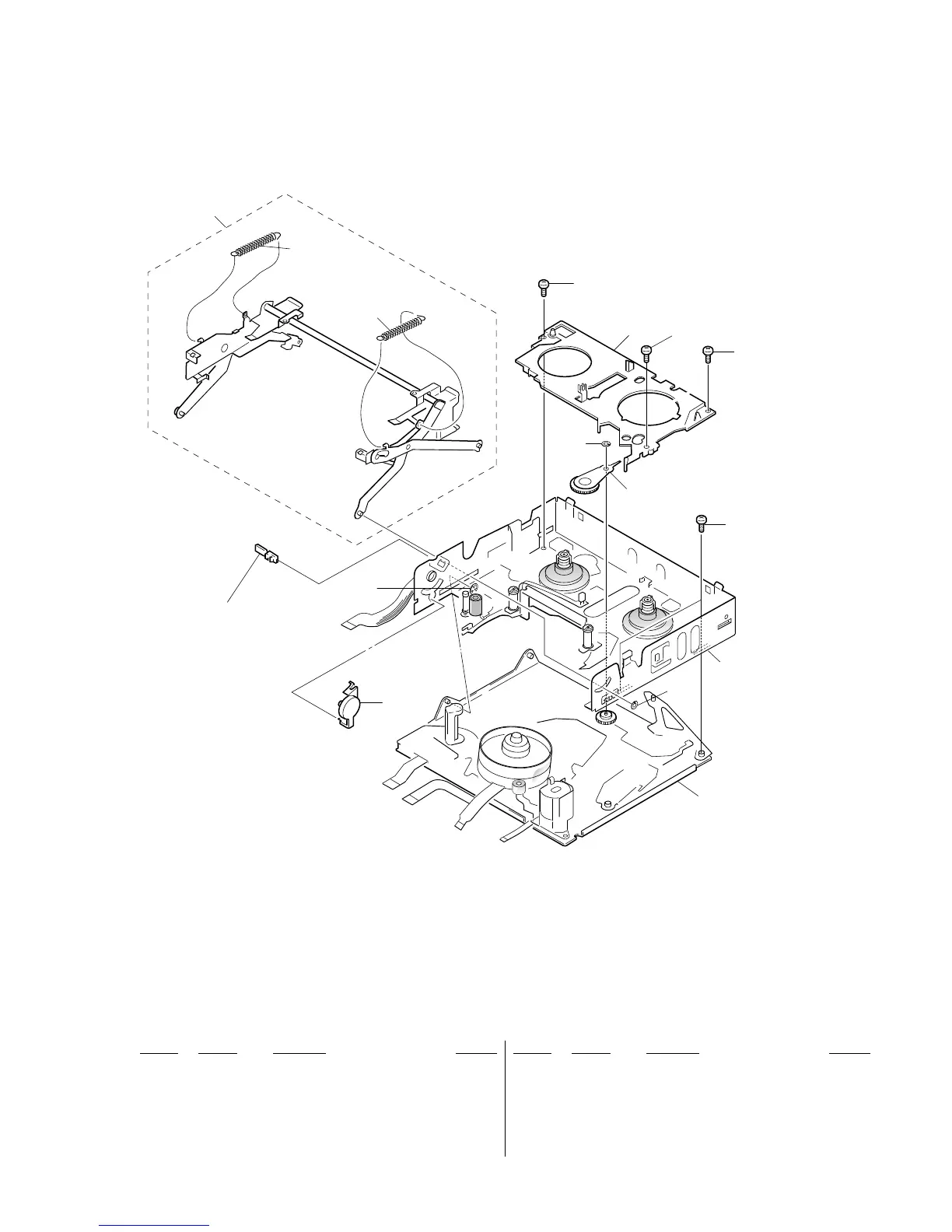

5-1-7. CASSETTE COMPARTMENT BLOCK SECTION
701 A-7040-421-A DAMPER ASSY
702 7-624-102-04 STOP RING 1.5, TYPE -E
703 X-3945-400-1 CASSETTE COMPARTMENT ASSY
704 3-965-587-03 SPRING, TENSION
705 3-965-584-01 RETAINER, GOOSENECK
706 3-973-268-01 SPRING, TENSION
707 X-3945-399-1 GEAR ASSY, GOOSENECK
708 3-947-503-01 SCREW (M1.4X2.5)
709 3-727-176-01 WASHER
710 3-971-076-01 FASTENER, D
711 3-976-055-01 SCREW (M1.4X1)
703
704
706
708
705
711
709
707
708
709
701
702
710
LS CHASSIS BLOCK
SECTION (See page 5-12)
MECHANISM CHASSIS
BLOCK SECTION
(See page 5-13)
708
