5-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifie.
CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

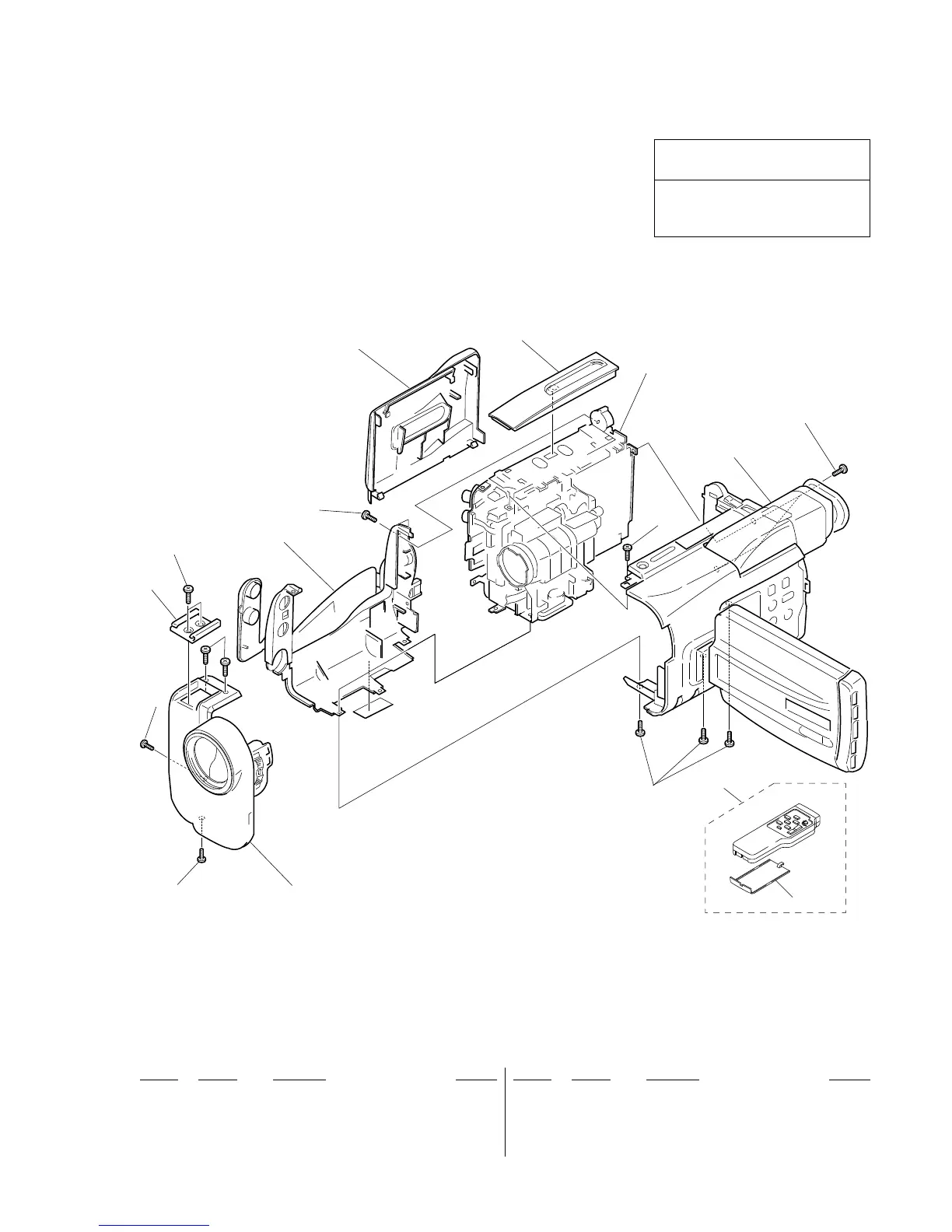

5-1-1. OVERALL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
5
1
1
1
1
3
4
1
1
1
6
CABINET (R) 
SECTION
(See page 5-4, 5-5)
MAIN SECTION
(See page 5-6)
CABINET (L)
SECTION
(See page 5-2, 5-3)
F PANEL SECTION
(See page 5-2, 5-3)
7
1
1 3-962-826-01 SCREW (2X4)
3 X-3945-446-1 LID ASSY, CASSETTE (TRV312/TRV512)
3 X-3947-229-1 LID ASSY (G), CASSETTE
(EXCEPT TRV312/TRV512)
4 3-975-365-01 LID, LS (EXCEPT TRV312/TRV512)
4 3-975-365-11 LID, LS (TRV312/TRV512)
5 3-975-363-01 SHOE, ACCESSORY
6 3-958-131-01 COVER,BATTERY REMOCON
7 1-473-342-11 REMOTE COMMANDER (RMT-713)
