Sony CCD-TRV32 - Removal of VC-188 Board; Removal of Cf-45;46 Board

2-4

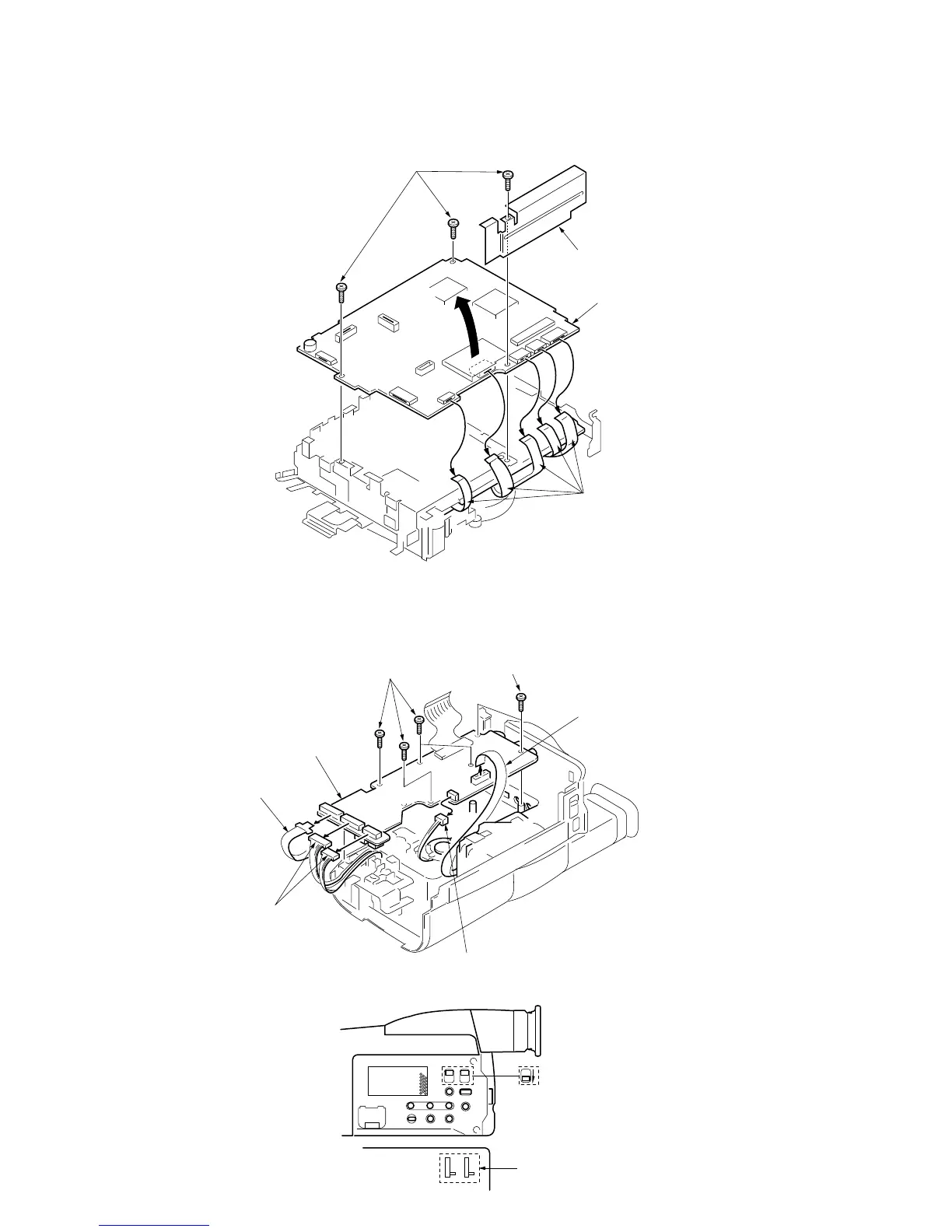

2-6. REMOVAL OF VC-188 BOARD
2-7. REMOVAL OF CF-45/46 BOARD
4 VC-188
board
2 Cover
1 Screws
(M2
× 3)
3 Flexible
boards
VC-188 
BOARD
5 Screws (B2 × 5)
7 CF-45/46 board
4 Flexible board
3 Connectors
2 Connector
1 Flexible board
6 Screws (B2 × 5)
Note: When attaching the CF-45/46 board,
 set the switches in the positions
 as shown.
S403, S415
S403, S415
CF-45/46
BOARD
CF-45/46
BOARD
