6-73

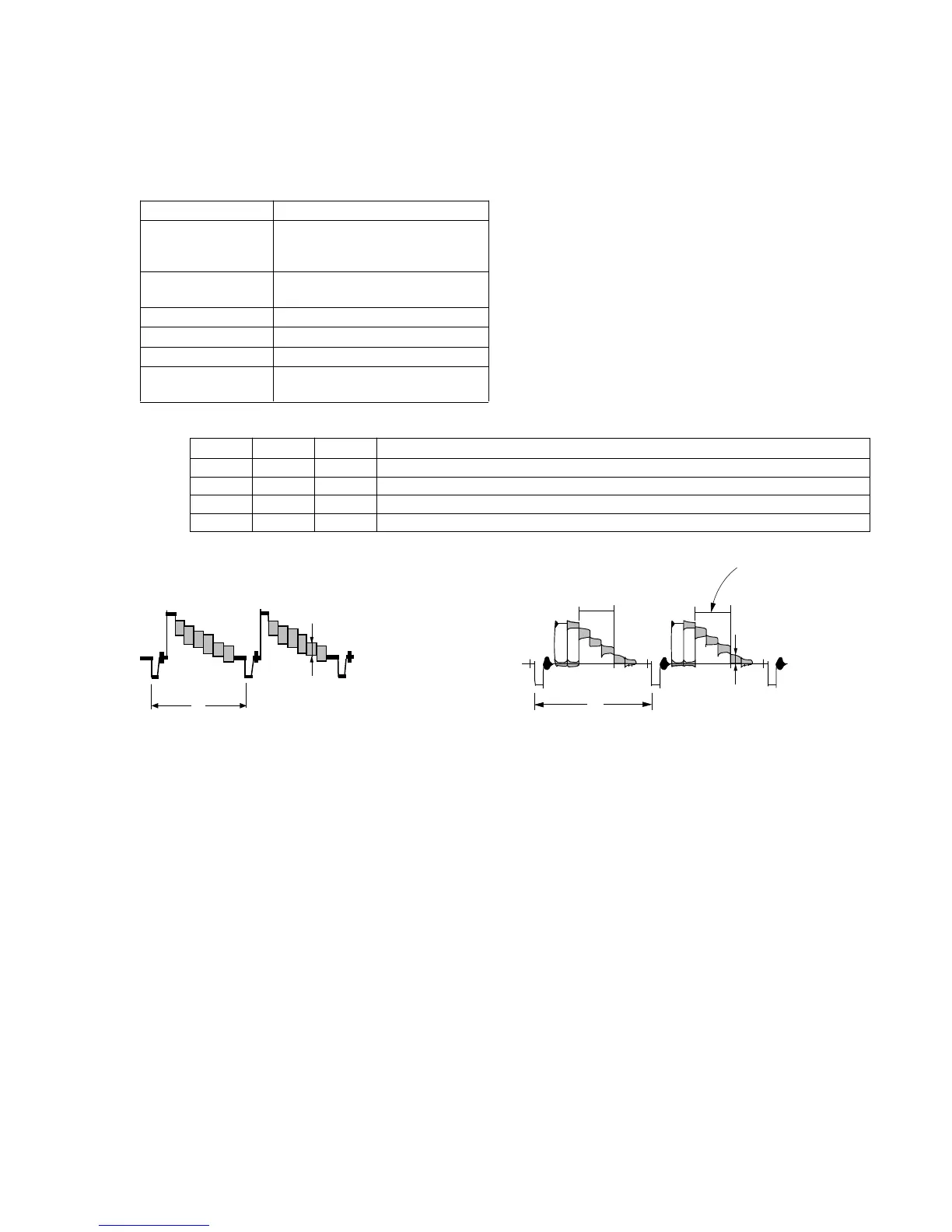

3-15. CHROMA EMPHASIS fo ADJUSTMENT
Purpose : Adjust fo of the chroma emphasis to the
specified frequency range.
Adjustment error : The bust and chroma level becomes too big
during playback.
Mode Playback
Signal Color bar signal
WR5-5CSP (PAL)
WR5-5NSP (NTSC)
Measurement Point • VIDEO output terminal
(terminated in 75Ω)
Measuring Instrument Oscilloscope
Adjustment Page F
Adjustment Address 34
Specification Value Minimizes the chroma component (A
in the following diagram)
Adjustment procedure:
PAL MODEL NTSC MODEL
Order Page Address Data Procedure
1 6 00 01 After setting the data, press the PAUSE button. (Preparation)
2 F 34 Change data so that the chroma component (A) is minimized.
3 Press the PAUSE button.
4 6 00 00 After setting the data, press the PAUSE button. (End)
H
H
A
White (100%)
H
A
To Next Page
