Sony CCD-TRV32 - Page 74

CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

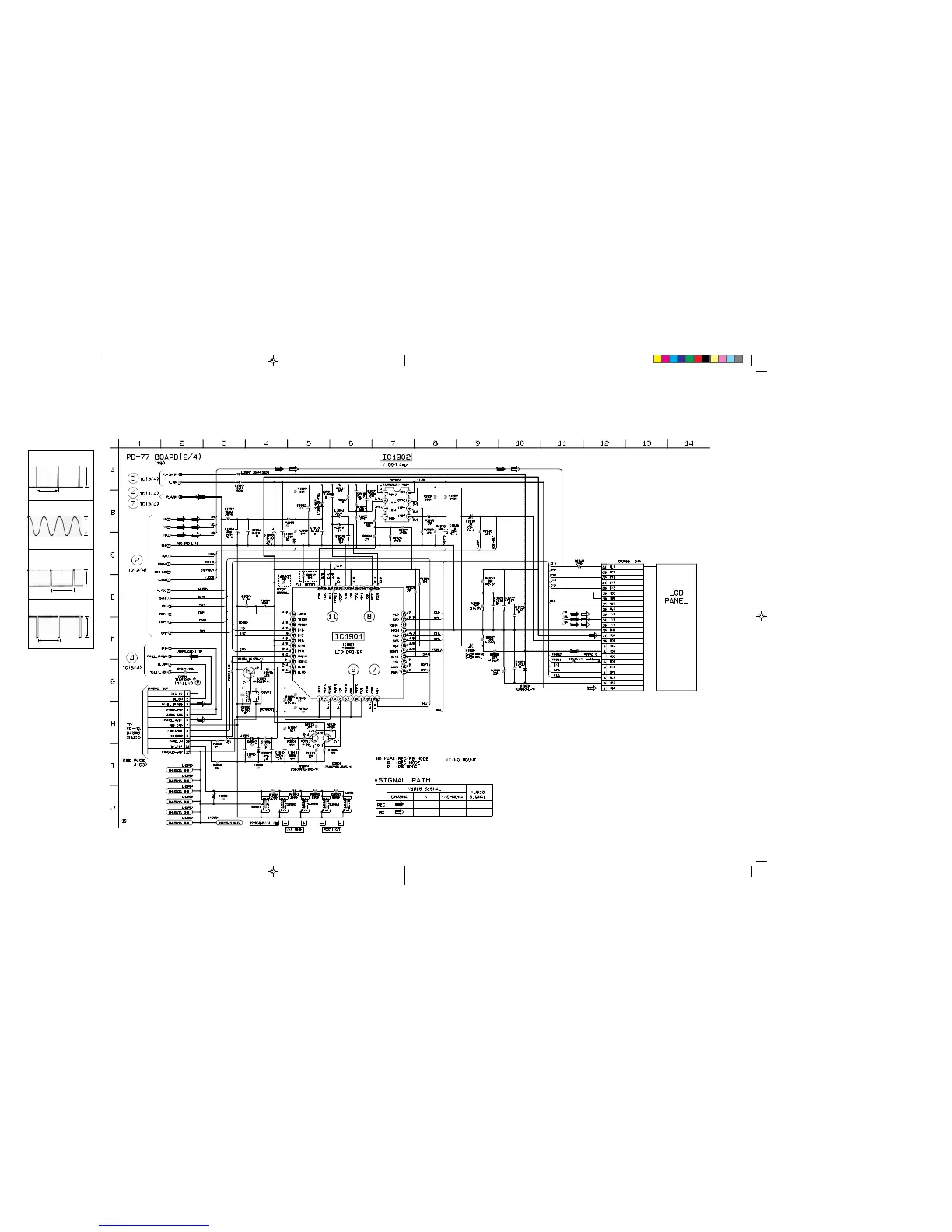

PD-77 (LCD) SCHEMATIC DIAGRAM
— Ref. No. PD-77 Board; 8,000 Series —
• See page 4-111 for PD-77 BOARD printed wiring board.
PD-77 BOARD (2/4)

7 IC1901 !£ REC/PB
8 IC1901 @§ REC/PB
9 IC1901 7 REC/PB
!¡ IC1901 #£ REC/PB
3Vp-p
H
2.4Vp-p
9.53MHz
4.4Vp-p
H
3Vp-p
H
4-104 4-105 4-106
LCD
PD-77 (2/4)
