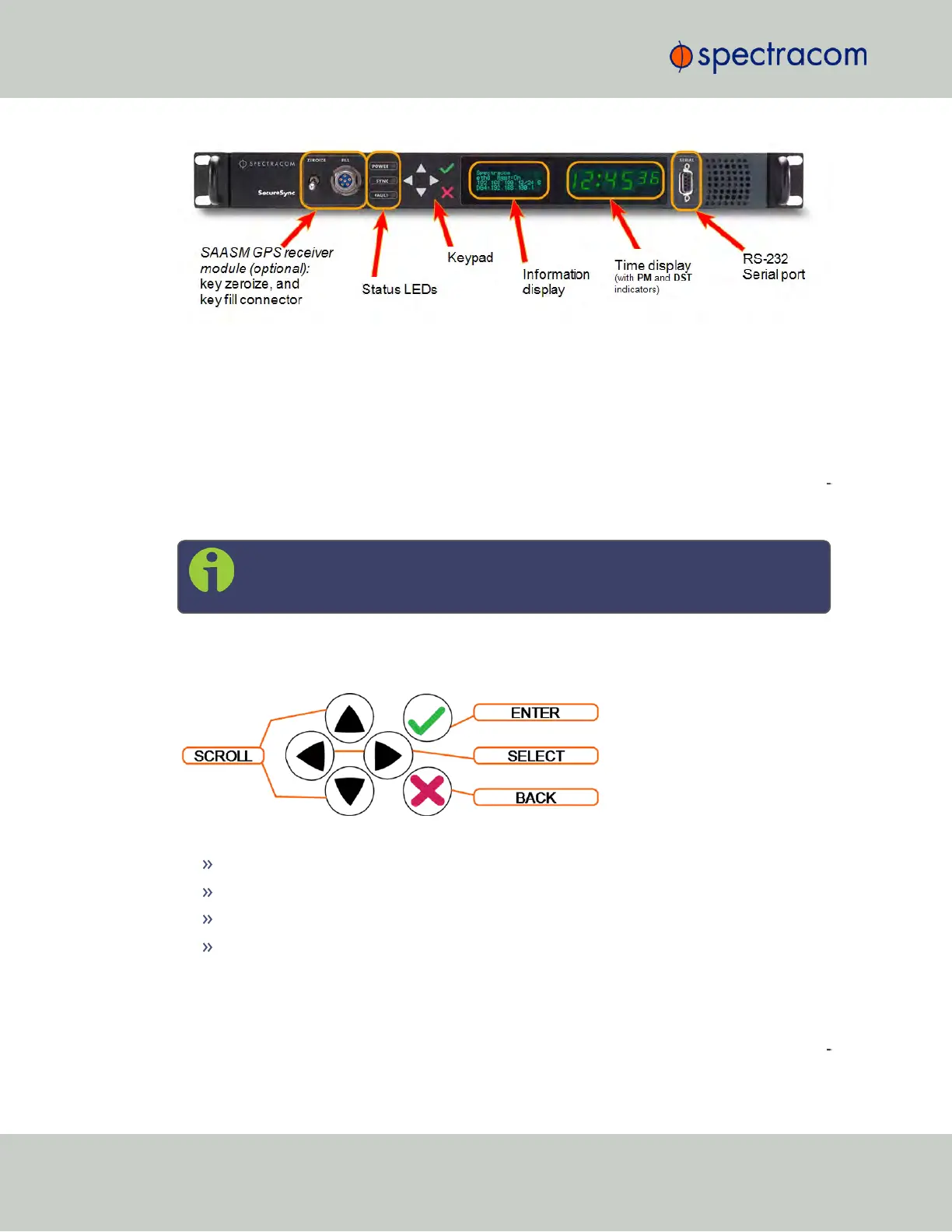

Figure 1-1: Front panel layout
1.3.1 Keypad and Information Display
To simplify operation and to allow local access to SecureSync, a keypad and LCD information
display are provided on the front panel of the unit.
Among other things, the keypad and information display can be used to carry out basic net
work configuration tasks, such as en-/disabling DHCP, or entering an IP address and subnet
mask.
Note: Should the keypad be locked, see "Troubleshooting – Keypad Is Locked"
on page323.
1.3.1.1 Keypad Operation
The functions of the six keys are:
tu arrow keys: Navigate to a menu option (will be highlighted)
pq arrow keys: Scroll through parameter values in edit displays
ü ENTER key: Select a menu option, or load a parameter when editing
Ò BACK key: Return to previous display or abort an edit process
1.3.1.2 Navigating the Information Display
After power initialization, press any key to go to the “Home” display. As shown in the illus
tration "Keypad menu tree" on the facing page, several status and setup displays are
4
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
1.3 SecureSync Front Panel
