To visually identify an option card installed in your unit, or to obtain an overview which option
cards are available for SecureSync, see "Option Cards Overview" below.
To obtain detailed information on a specific option card, using its ID number, see "Option
Card Identification" on page13.
To locate option card topics in this manual by their heading or functionality, see "Option
Cards" on page328. This Chapter also includes information on field installation and Web UI
functionality.
To visually identify a connector type, see "Option Card Connectors" on page16.
1.5.1 Option Cards Overview
The table below lists all SecureSync option cards available at the time of publication of this doc
ument, sorted by their function.
The table column (see table below) Name used in WebUI ["Web User Interface"] refers to the
names under which the cards installed in a SecureSync unit are listed in the INTERFACES >
OPTION CARDS drop-down menu.
The main purpose of the table below is to assist with the identification of the card(s), and to list
its key input/output specifications.
Detailed information on every card can be found in the APPENDIX. To quickly access the
APPENDIX topic for your option card(s), you may use the hyperlinks in table "Option cards lis
ted by their ID number" on page14.
Note: * Every option card has a unique 2-digit ID number that can be found on its
cover plate, and in the center column of the table below. The complete Spec
tracom Part Number for option cards is 1204-xx (e.g., 1204-18).

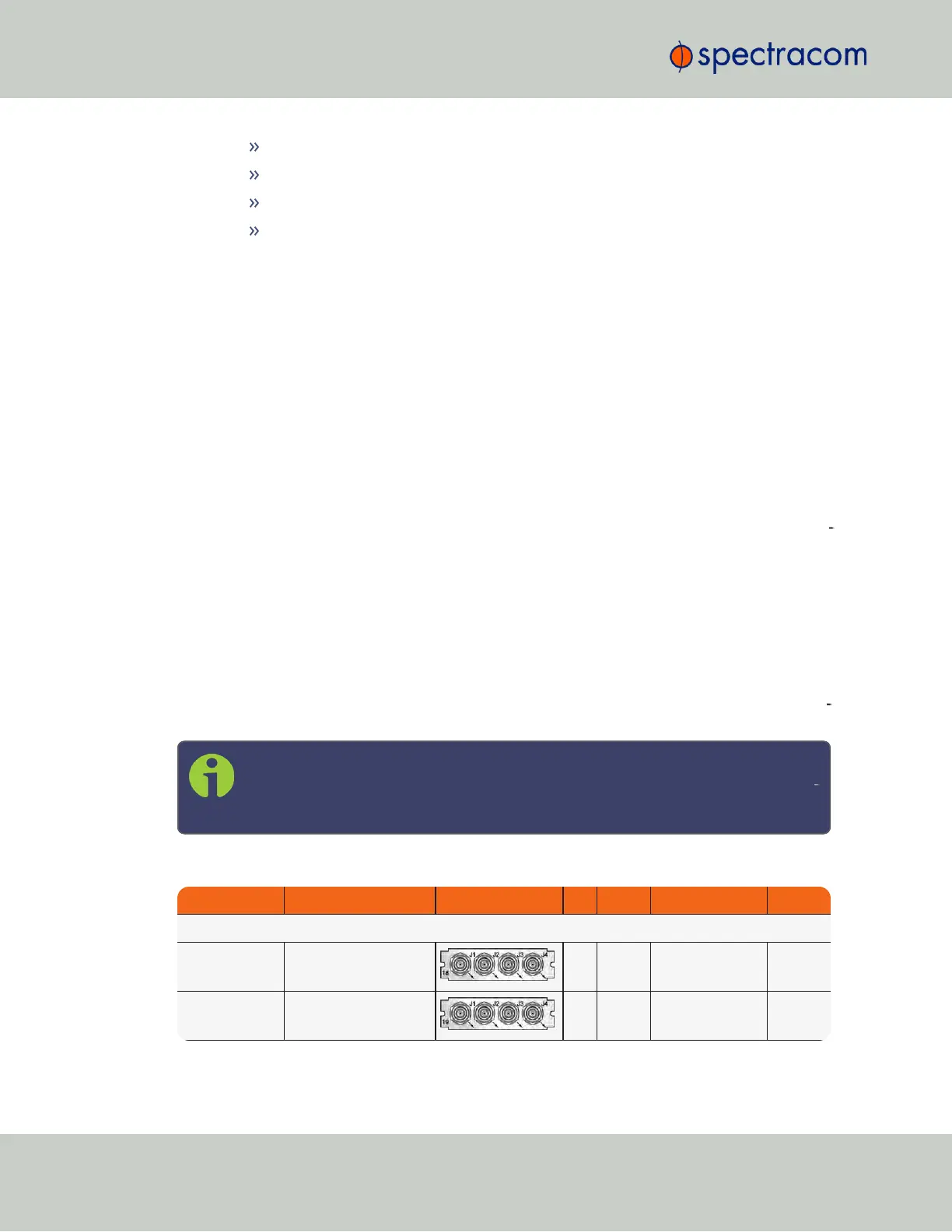

Table 1-3:
Option cards overview
Function Name used in Web UI Illustration ID* Inputs Outputs Conn.'s
Time and Frequency Cards
Quad 1PPS out
(TTL)
1PPS Out BNC
18
0 1PPS, TTL (4x) BNC
(4x)
Quad 1PPS out
(10 V)
1PPS Out 10V
19
0 1PPS, 10 V (4x) BNC
(4x)
10
