Spectracom SecureSync 1200 User Manual

Card
ID*
Card Name Name in UI See ...
2A 1-in/3-out 1 PPS module (Fiber
Optic)
1PPS In/Out,
Fiber
"1PPS In/Out [1204-28, -2A]" on
page354
2B Quad 1 PPS output module
(Fiber Optic)
1PPS Out, Fiber
"1PPS Out [1204-18, -19, -21, -2B]" on
page349
2F Programmable Frequency Out
put module (TTL)
Prog Freq Out,
TTL
"Programmable Frequency Out [1204-
13, -2F, -30]" on page371
2E Revertive Selector module ("Fail
over")
n/a
"Revertive Selector Card [1204-2E]" on
page477
30 Programmable Frequency Out
put module (RS-485)
Prog Freq Out,
RS-485
"Programmable Frequency Out [1204-
13, -2F, -30]" on page371
32 1Gb PTP module Gb PTP
"PTP Grandmaster [1204-32]" on
page456
38 10 MHz output module (3 x TNC
outputs)
10 MHz Out
"Frequency Out [1204-08, -1C, -26, -
38]" on page368

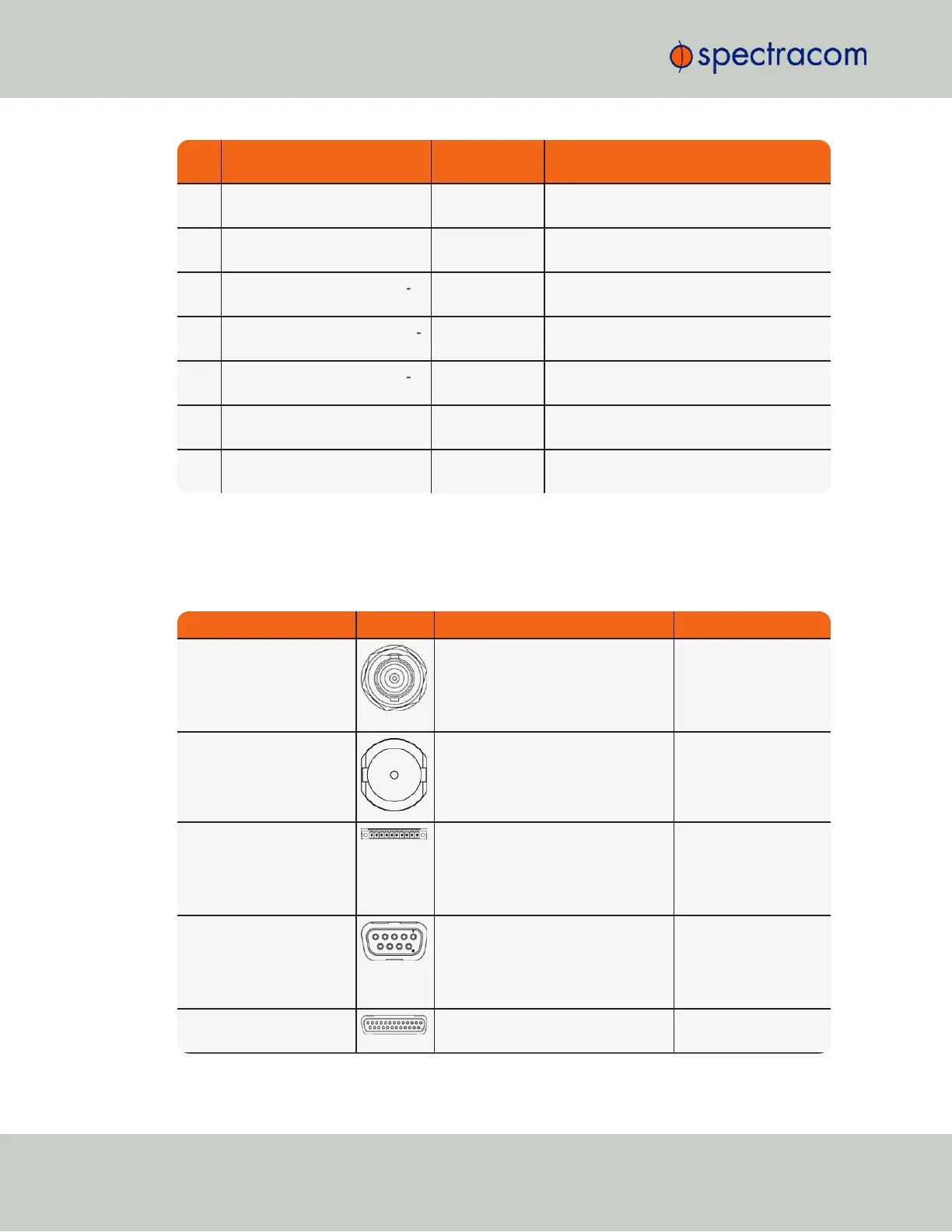

1.5.3 Option Card Connectors
The table below lists the connector types used in SecureSync option cards.
Table 1-5:
Option card connectors
Connector Illustration Electr. Signals Timing signals
BNC Differential TTL xV,
sine wave, programm. square wave,
AM sine wave,
DCLS
1PPS,
frequency,
IRIG,
HAVE QUICK,
PTP
ST Fiber Optic AM sine wave,
DCLS
IRIG, 1PPS
Terminal Block
[Recommended mating
connector:
Phoenix Contact, part no.
1827787]
RS-485 1PPS,frequency,
ASCIItime code,
IRIG,HAVEQUICK,
Alarm, T1/E1
DB-9 RS-232,
RS-485
ASCIItime code,
GPS NMEA, data
clocks,
CTCSS frequency,
1PPS, Alarm signal
DB-25 Differential TTL xV,
RS-485
STANAG
16
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
1.5 Option Cards
