Status window and the Editwindow.
Status window
Under INTERFACES > OPTIONCARDS, clicking subordinate (indented) entries will
open the Status window, providing detailed option card status information.
Edit window
To edit option card settings, either click the Edit button in the lower-left corner of the
Status window, or click the GEAR button in the Status Summary panel: The Edit window will
open.
5.2.1.2 Viewing Input/Output Configuration Settings
The configurable settings of any SecureSync input or output interface can be viewed in its
Status window. The Status window can be accessed in several ways; the procedure below
describes the standard way:
1.
Identify the name of the option card, (e.g., PPSOUT, 4-BNC) and the name of the input
or output you want to configure (e.g., PPS Output 1).
Note: If you have only one input or output of any type, SecureSync will
number that input or output0. Additional inputs or outputs will be
numbered1 or above.
2.

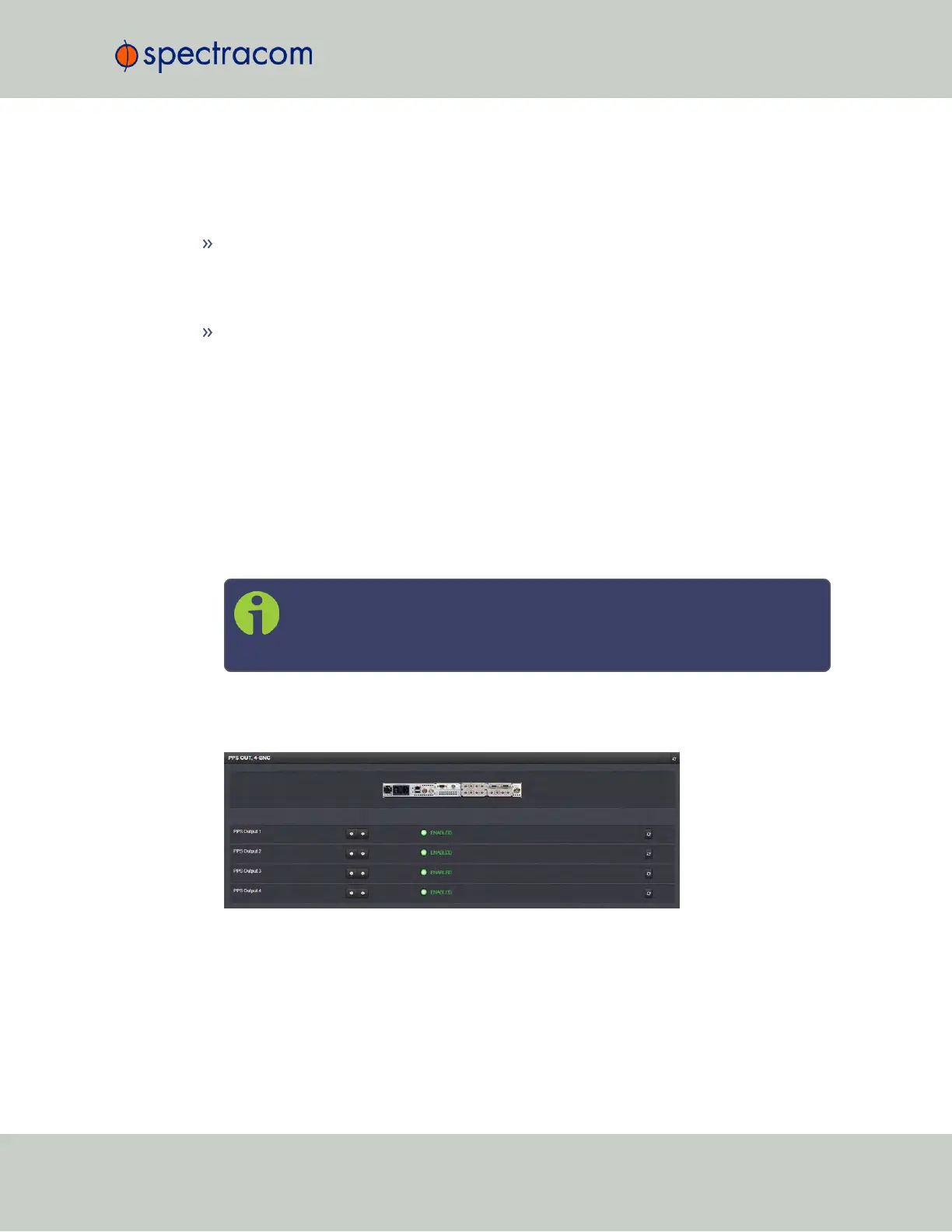

Navigate to INTERFACES > OPTION CARDS, and click the list entry of the option card
identified above. The option card’s Status Summary panel opens:
3.
Click on the INFO button next to the input or output whose settings you wish to review.
The Status window will open:
SecureSync User Reference Guide 329
APPENDIX
