T1 SSM Value: This option selects the SSM quality level transmitted when SSM is
enabled.
E1 SSM Value: This option selects the SSM quality level transmitted when SSM is
enabled.
5.2.5 Time Code Option Cards
This section contains technical information and SecureSync Web UI procedures for option
cards designed to deliver timing data in time code formats, e.g. IRIG, HAVE QUICK, or
STANAG.
5.2.5.1 IRIG Out [1204-15, -1E, -22]
These IRIG Output option cards provide SecureSync with four IRIG outputs. Available with BNC
connectors, Fiber Optic ST connectors, or RS-485 terminal block.
IRIG Out (BNC): Specifications
Inputs/Outputs: (4) IRIG Outputs
Signal Type and Connector: IRIG A, B, E, G, NASA 36, amplitude modulated; 0.5V to
6V
p-p
into 50Ω
Accuracy: see "IRIG Output Accuracy Specifications" on page539
Maximum Number of Cards: 6
Ordering Information: 1204-15 Four IRIG Output Module, BNC

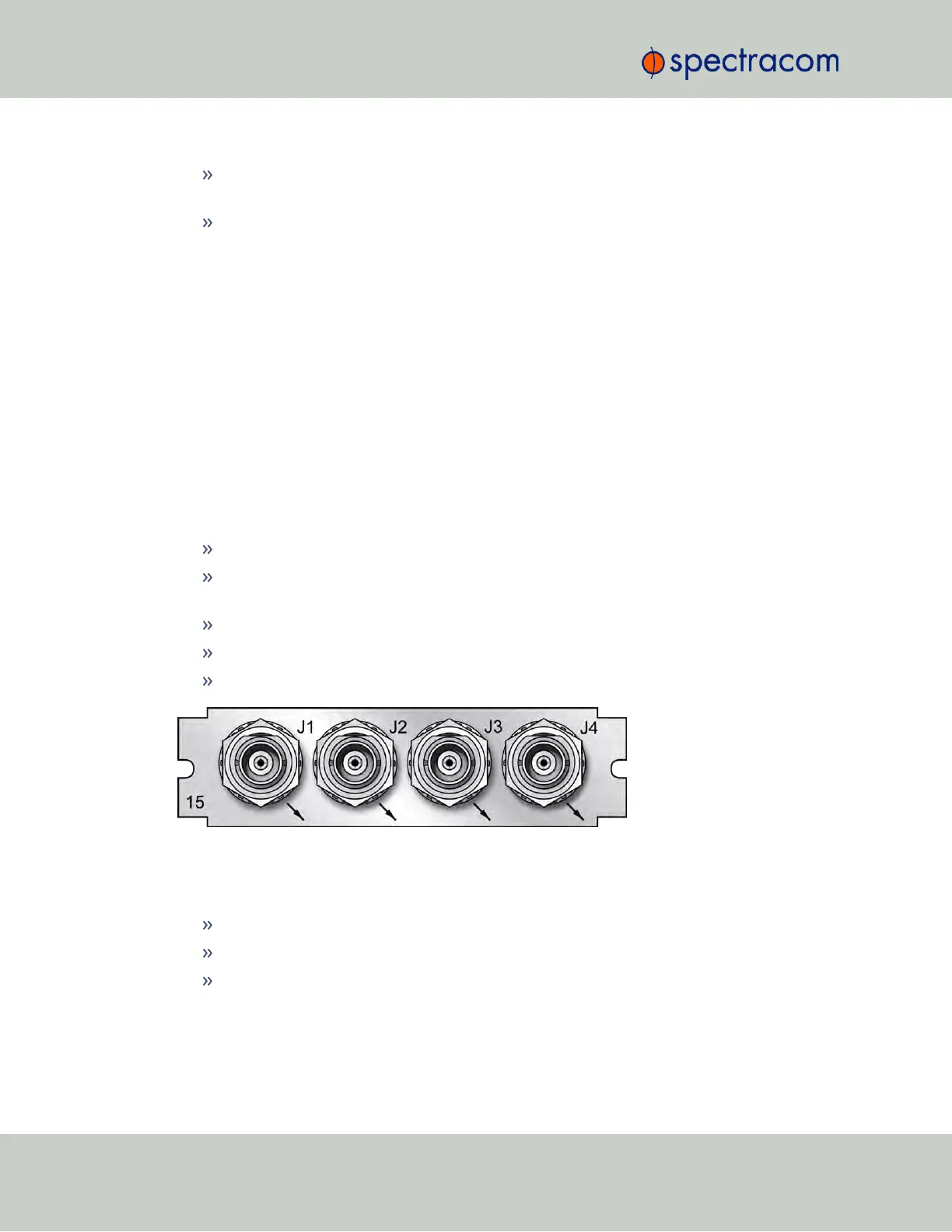

Figure 5-37: Model 1204-15 option card rear plate
IRIG Out (Fiber Optic): Specifications
Inputs/Outputs: (4) IRIG Outputs
Signal: IRIG A, B, E, G or NASA-36
Operating Wavelength: 820/850nm
