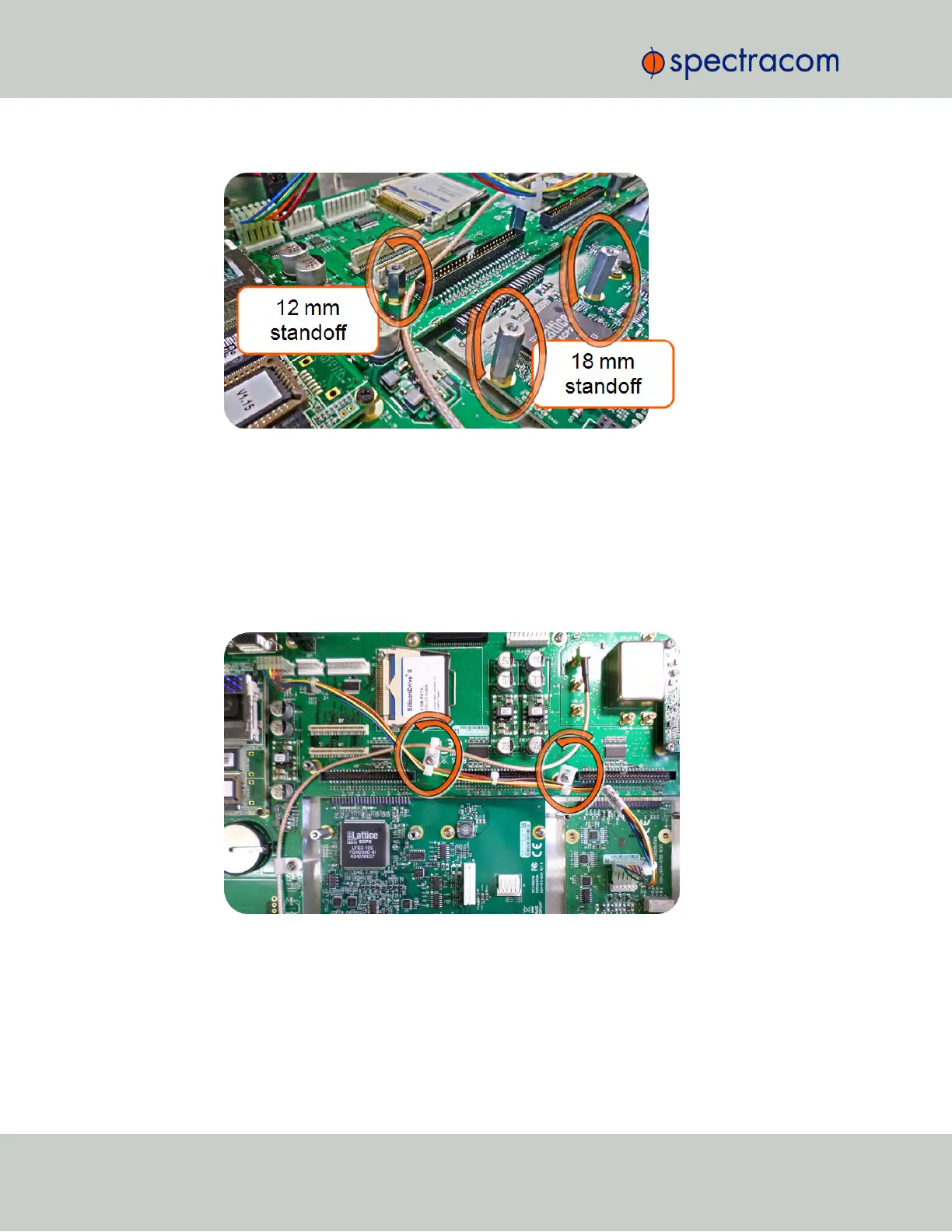

Figure 5-11: Gigabit Ethernet option card installation
5.2.2.13 [10]: Alarm Relay Card, Cable Installation
Additional steps for the installation of the Alarm Relay Output card (PN1204-0F).
a.
Connect the supplied cable, part number 8195-0000-5000, to the mainboard connector
J19 “RELAYS”.
Figure 5-12: Cable routing
346 SecureSync User Reference Guide
