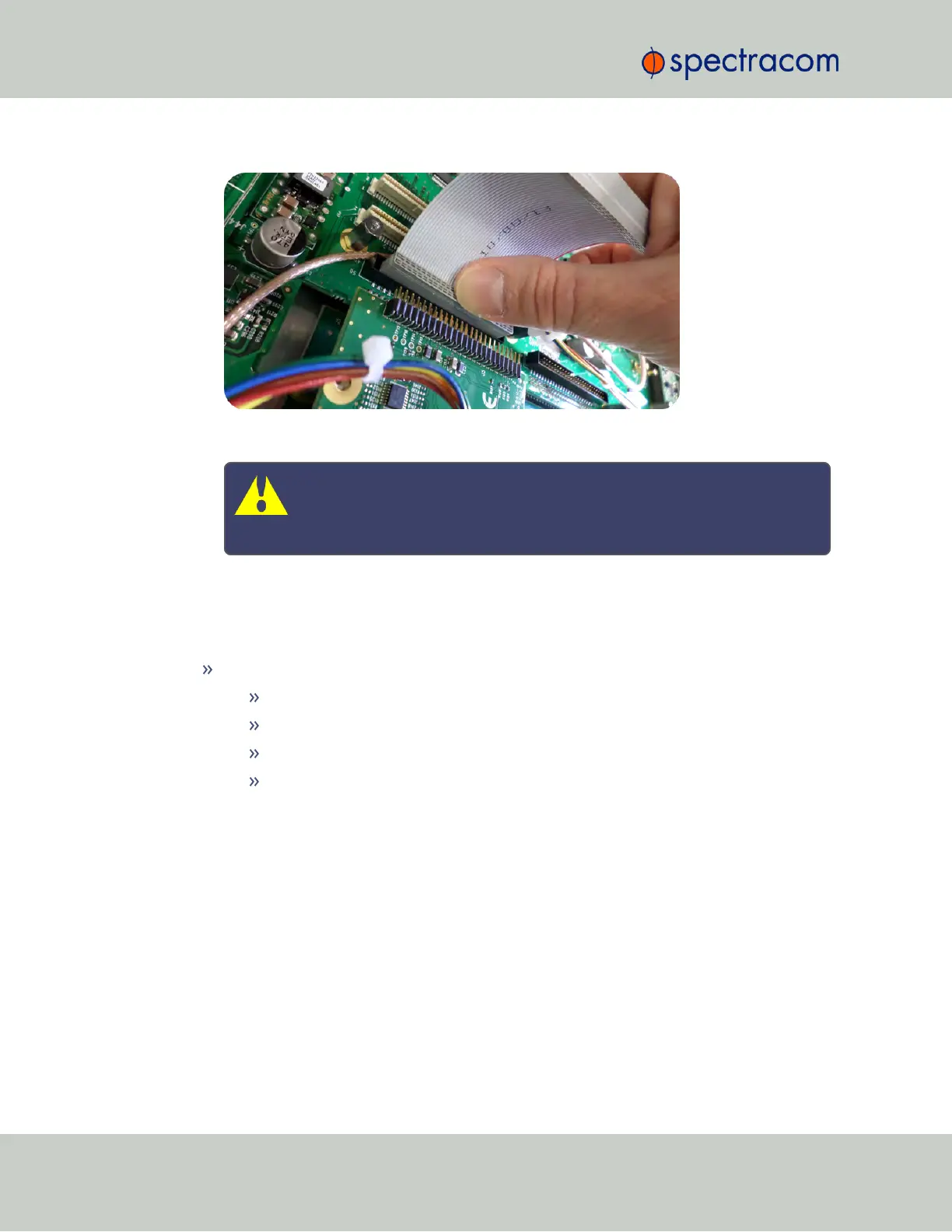

Figure 5-7: Ribbon cable installation
Caution: Ensure that the ribbon cable is aligned and fastened properly to
all pins on the connector of the card. Otherwise, damage to equipment
may result during power up.
5.2.2.10 [7]: Frequency Output Cards: Wiring
Additional installation instructions for the following option card models:
Frequency Output cards:
1MHz (PN 1204-26)
5MHz (PN 1204-08)
10MHz (PN 1204-0C)
10 MHz (PN 1204-1C)
For the cable installation, follow the steps detailed below:
a.
Install the coax cable(s) onto the main PCB, connecting them to the first available open
connectors, from J1… J4. See figure below:
342 SecureSync User Reference Guide
