Signature Control: Controls when the output will be present. See also: "Signature Con
trol" on page136.
Frequency: Indicates the configured frequency.
Phase: Displays the configured phase offset (e.g., to account for delays caused by dif
ferent cable lengths, or other latencies).
Lock: Shows, if the output frequency is locked to the SecureSync system-disciplined oscil
lator.
Note: Even if an output frequency status is LOCKED, it will not be available at the
output port, if the Signature Control for that port has been DISABLED.
5.2.3.6 Programmable Square Wave Out [1204-17]
The Model 1204-17 Square Wave output Option Card provides four programmable square
wave outputs for the SecureSync platform.
Inputs/Outputs: (4) Programmable square wave outputs
Signal Type and Connector: TTL (BNC)
Accuracy: ±50ns (1σ)
Output Load Impedance: 50Ω
Rise Time to 90% of Level: <10ns
Programmable Period: 100ns to 1,000,000,000ns in 5ns steps, to 60,000,000µs in
1µs steps
Programmable Pulse Width: 20ns to 900ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-17: Square Wave Out

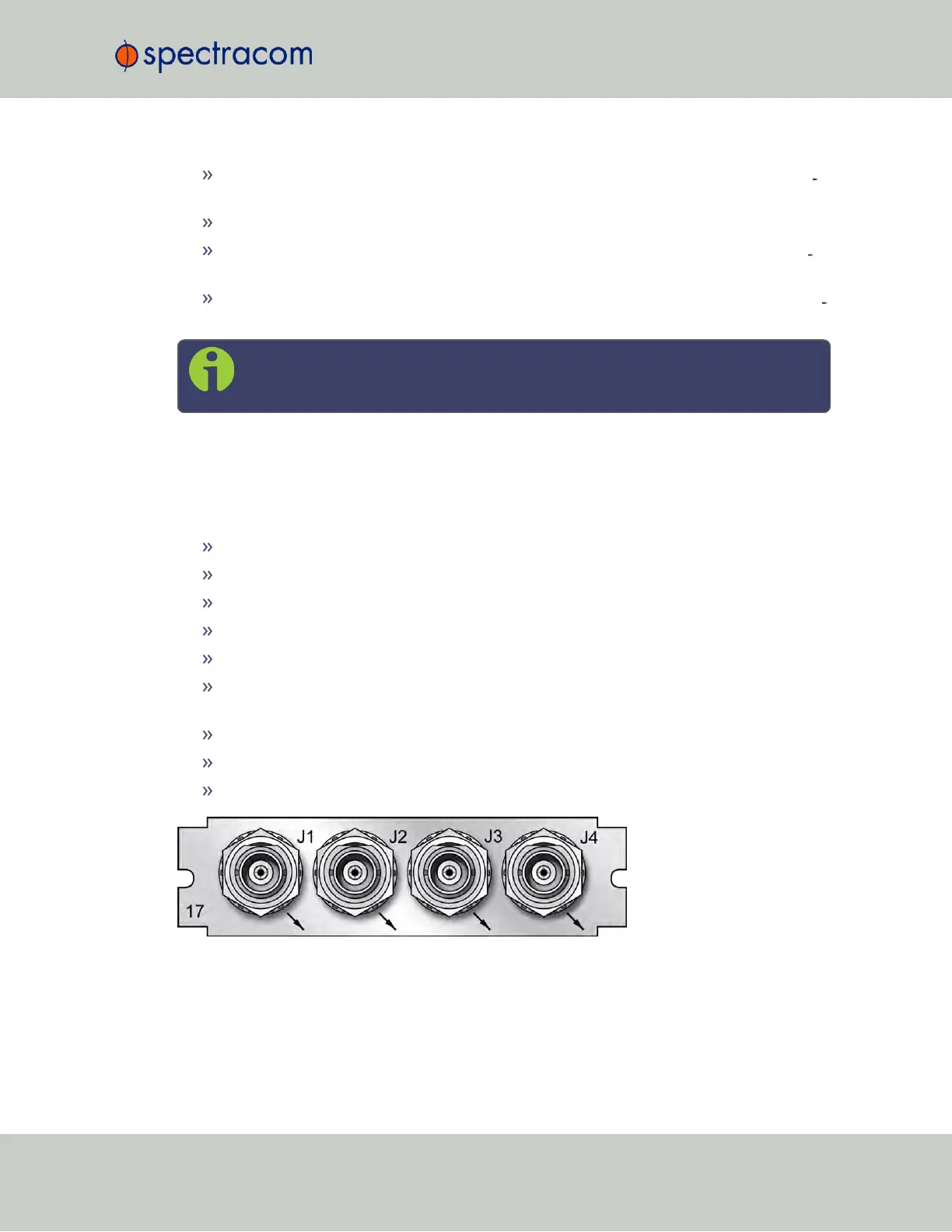

Figure 5-30: Model 1204-17 option card rear plate
