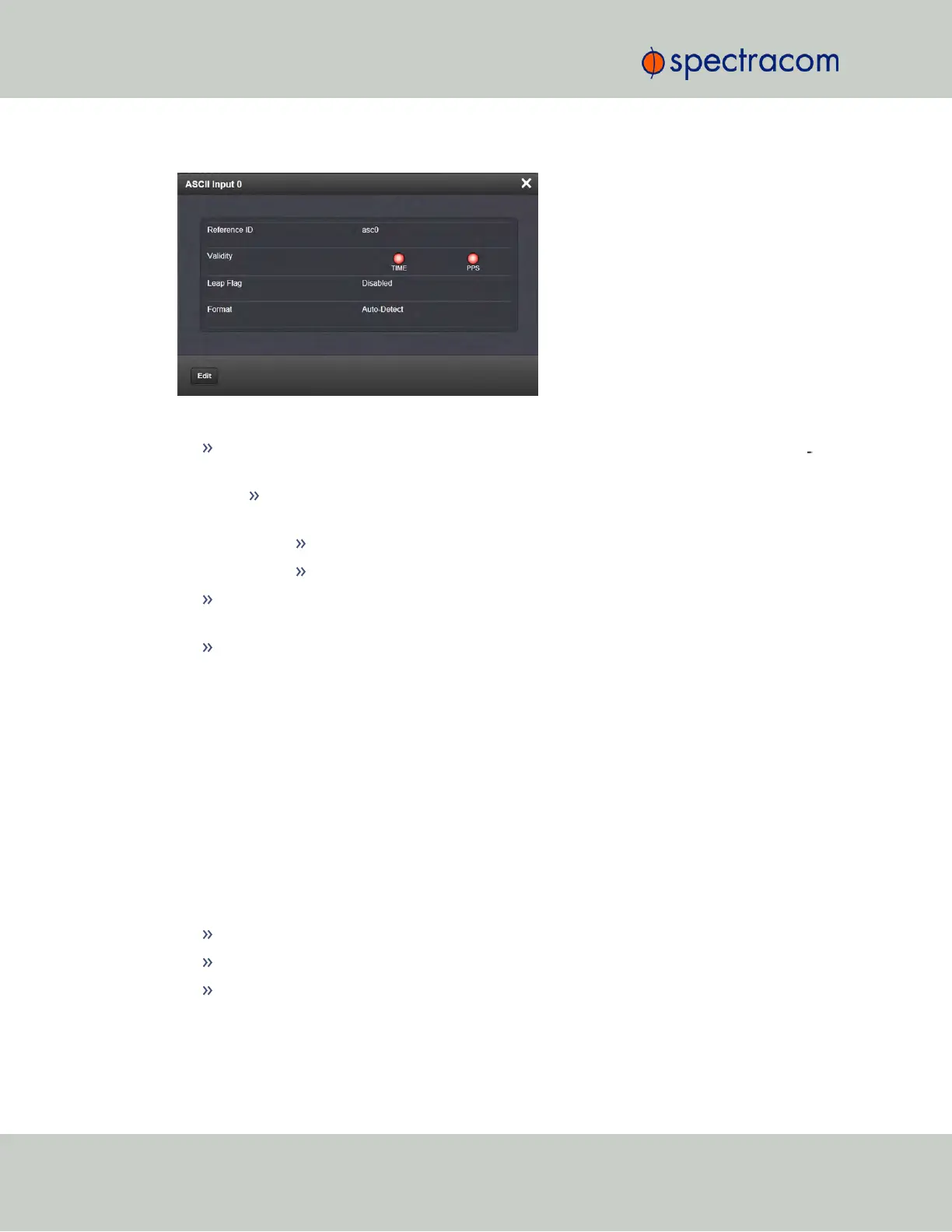

The Status window displays the following settings:
Reference ID: Indicates the letters used in the Input Reference Priority table for this par
ticular input reference.
Validity: Indicates whether the ASCII input data is present and considered valid
for Time and 1PPS references.
A green light indicates a valid reference.
An orange light indicates the reference is not considered valid.
Leap Flag: Displays whether the incoming data stream is indicating that a pending leap
second is to be added to the UTC timescale at the end of the month. See .
Format: Indicates the configured format of the ASCII time code input data stream.
5.2.6 Network Interface Option Cards
This section contains technical information and SecureSync Web UI procedures pertaining to
option cards designed as Ethernet network interfaces using, e.g. the PTP format.
5.2.6.1 Gigabit Ethernet [1204-06]
This option card provides SecureSync with three 10/100/1000 Base-T network interfaces, in
addition to the standard 10/100 Base-T network interface.
Gigabit Ethernet [1204-06]: Specifications
Inputs/Outputs: (3) Gigabit Ethernet (10/100/1000 Base-T)
Connectors: RJ-45 (3x)
Management: Enabled or Disabled (NTP server only)
454 SecureSync User Reference Guide
