Maximum Number of Cards: 1
Ordering Information: 1204-06: Gigabit Ethernet (3X) Module

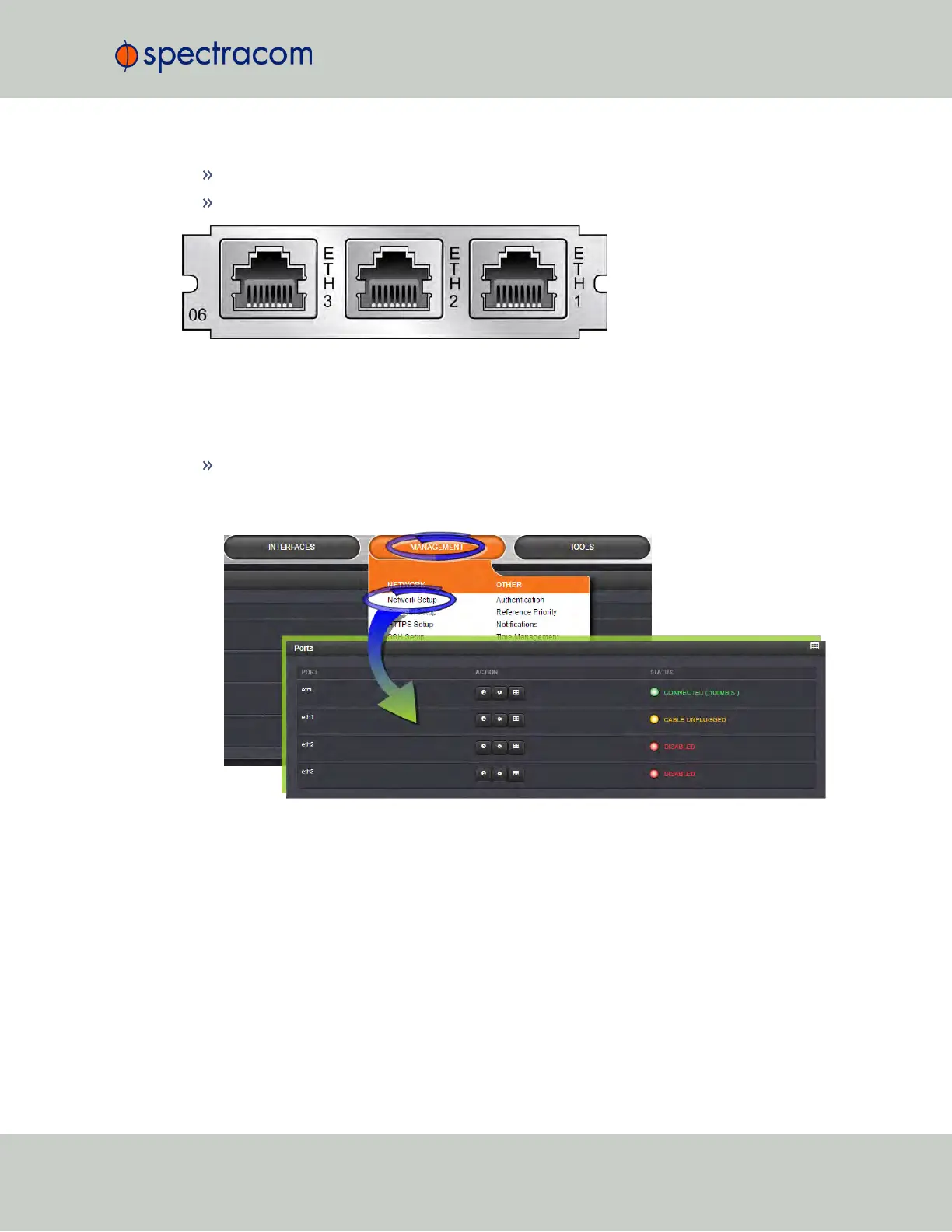

Figure 5-53: 1204-06 option card rear plate
Network Setup
To monitor and manage Ethernet on SecureSync:
Navigate to MANAGEMENT > Network Setup. On the right side of the Network Setup
screen, the Ports panel will display the available Ethernet ports, and their connection
status:
Eth0 is the built-in SecureSync Ethernet port. Eth1 through eth3 are the ports provided by
the 1204-06 card.
To learn more about Ethernet setup, see "Configuring Network Settings" on page54.
Routing Tables
There are five (5) routing tables in the system: one for each network interface, and one main
routing table.
SecureSync User Reference Guide 455
APPENDIX
