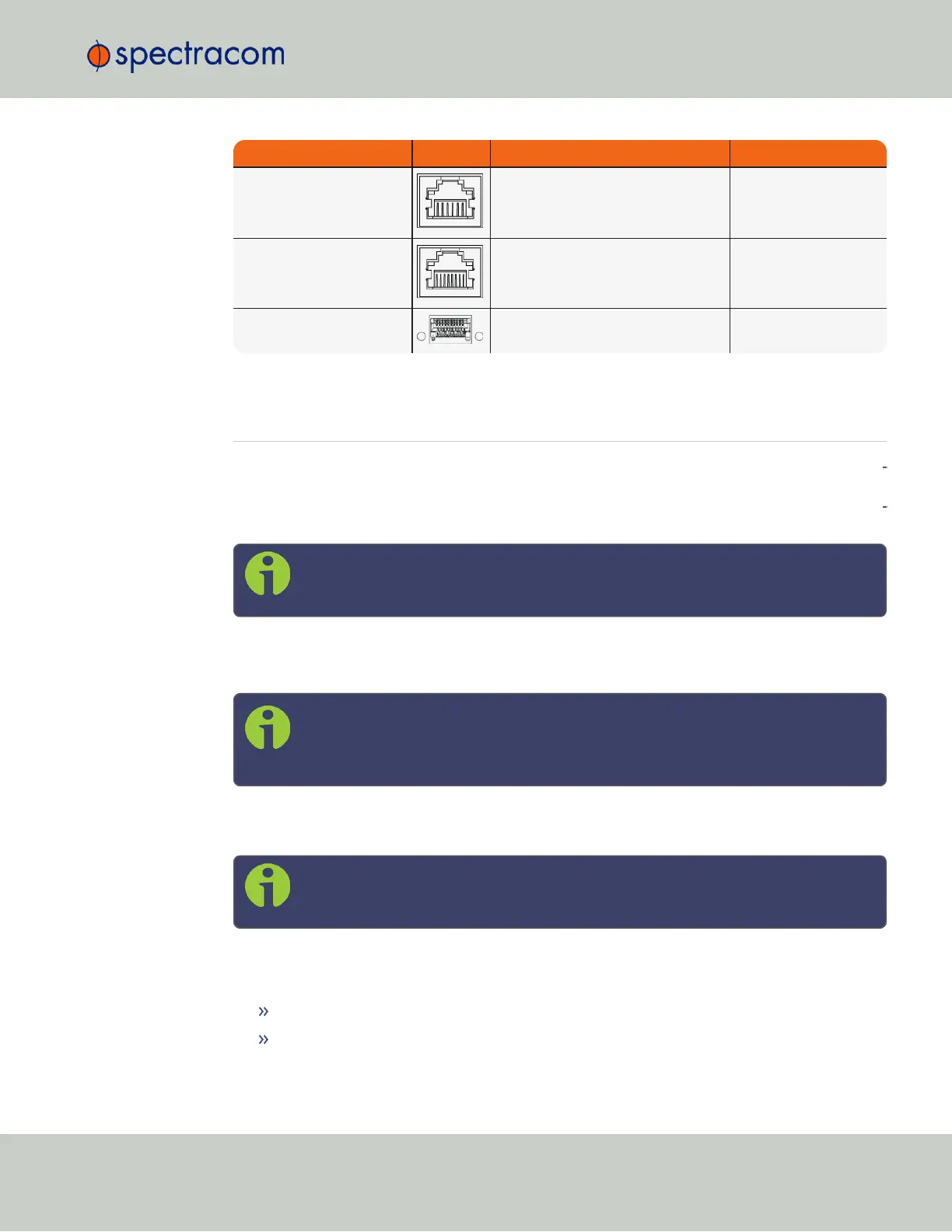

Connector Illustration Electr. Signals Timing signals
RJ-12 RS-485 data clock,
CTCSS frequency,
1PPS, Alarm
RJ-45 Gb-Ethernet PTP timing signal
SFP Ethernet PTP
1.6 The SecureSync Web UI
SecureSync has an integrated web user interface (referred to as "WebUI" throughout this doc
umentation) that can be accessed from a computer over a network connection, using a standard
web browser. The WebUI is used to configure the unit, and for status monitoring during every
day operation.
Note: An integrated Command-Line Interpreter interface (CLI) allows the use of a
subset of commands that are integrated into the Web UI.
The minimum browser requirements for the Web UI are: Internet Explorer
®
9 or higher,
Firefox
®
, or Chrome
®
Note: Should it ever be necessary, you can restore SecureSync's configuration to
the factory settings at any time. See "Resetting the Unit to Factory Configuration"
on page305.
1.6.1 The Web UI HOME Screen
Note: Screens displayed in this manual are for illustrative purposes. Actual
screens may vary depending upon the configuration of your product.
The HOME screen of the SecureSync web user interface ("Web UI") provides comprehensive
status information at a glance, including:
vital system information
current status of the references
1.6 The SecureSync Web UI
CHAPTER 1 • SecureSync User Reference Guide Rev. 23
17
