Status Monitoring via the HOME Screen

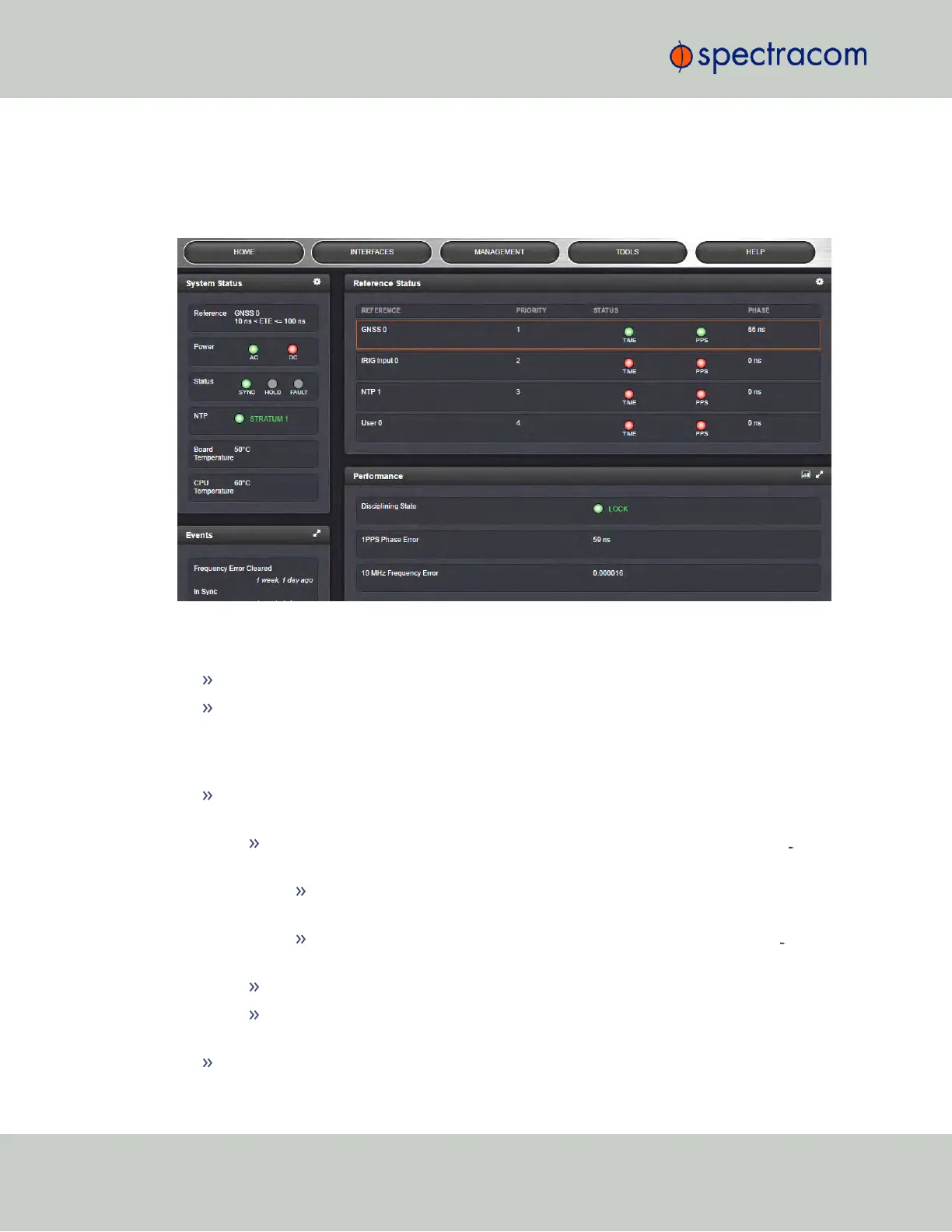

The HOME screen of the SecureSync Web UI provides a system status overview (see also "The
Web UI HOME Screen" on page17).
The HOME screen is divided into four panels:
System Status panel
Reference—Indicates the status of the current synchronizing reference, if any.
Power—Indicates whether the power is on and which type of power is being used. If the
unit is configured for AC power, AC will appear in this panel. If the unit is configured
for DC power, DC will appear in this panel. If the unit is configured for both AC and
DC, AC and DC will appear in this panel.
Status—Indicates the status of the network’s timing. There are three indicators in the
Status field:
Sync—Indicates whether SecureSync is synchronized to its selected input ref
erences.
Green indicates SecureSync is currently synchronized to its references (the
front panel Sync light will also be green).
Orange indicates SecureSync is not currently synchronized to its ref
erences (the front panel Sync light will be red).
Hold—When lit, SecureSync is in Holdover mode.
Fault—Indicates a fault in the operation of the SecureSync. See "Troubleshooting
via Web UI Status Page" on page320 for instructions for troubleshooting faults.
Alarm Status: If a major or minor alarm is present, it will be displayed here.
