Pin No. Function
7 Frequ. Output 3 –
8 GND
9 Frequ. Output 4 +
10 Frequ. Output 4 –

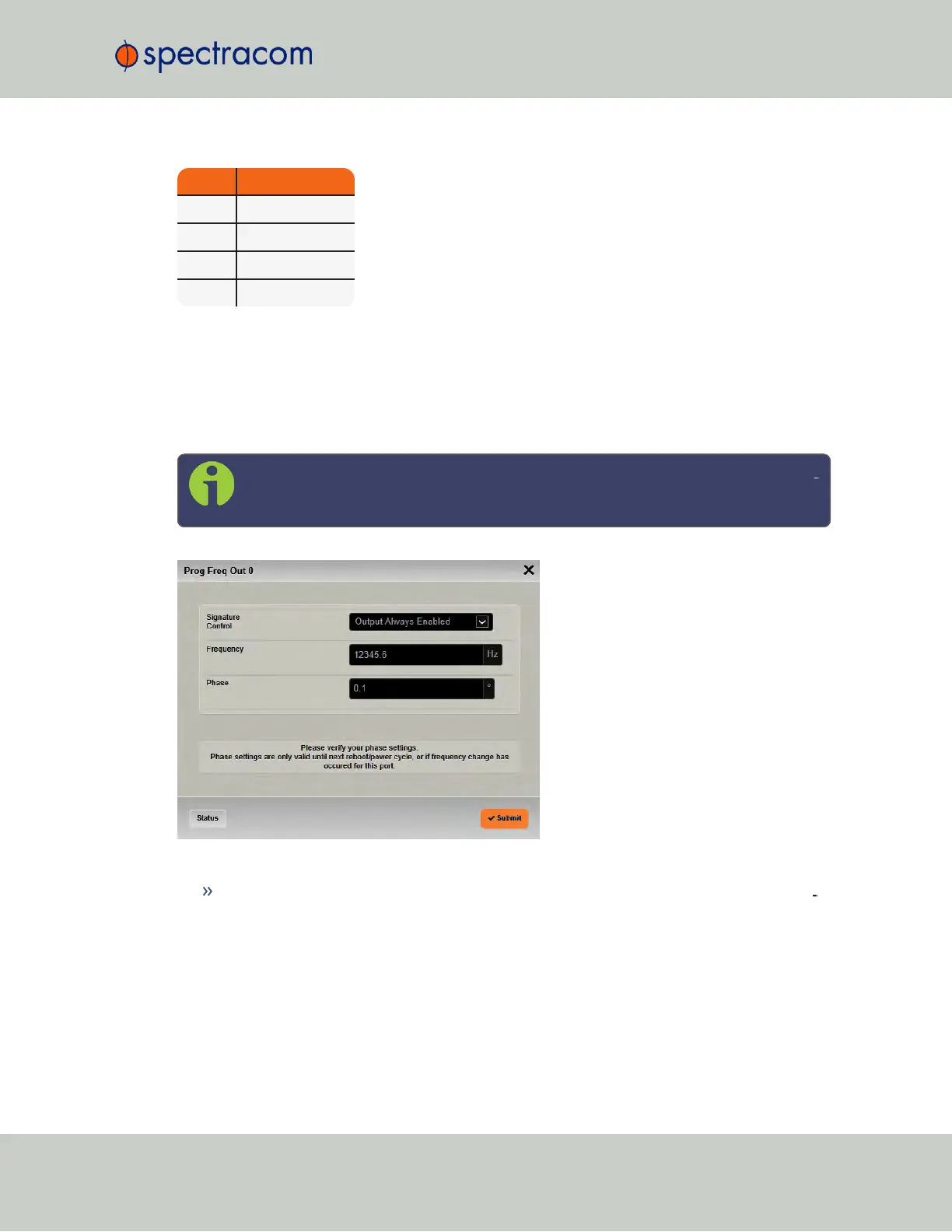

Programmable Frequency Output: Edit Window
To configure a Programmable Frequency Output, go to its Edit window. For instructions, see:
"Configuring Option Card Inputs/Outputs" on page330.
The Web UI list entry for this card is: Prog Freq Out, Sine [or: TTL, or: RS-485, respectively].
The connector numbers are: J1…J4 [J1 for the RS-485 model].
Note: SecureSync starts numbering I/O ports with 0 (only 1PPS and 10MHz out
puts start at1, because of the built-in outputs).
The Edit window allows the configuration of the following settings:
Signature Control: Controls when the output will be present. See also: "Signature Con
trol" on page136.
SecureSync User Reference Guide 375
APPENDIX
