Pin Num

ber

Signal Function Notes

1 PPS_OUT 1PPS output TTL level on 50Ω

2 SERIAL_

OUT_TX

RS-232 Transmit

data

Data output (ToD messages)

3 SERIAL_IN_

RS-232 Receive

data

Data input into unit; use this to transmit commands

to the unit)

4 NC No connection

5 GND Ground

Bottom row of 4 pins

6 NC No connection

7 NC No connection

8 NC No connection

9 NC No connection

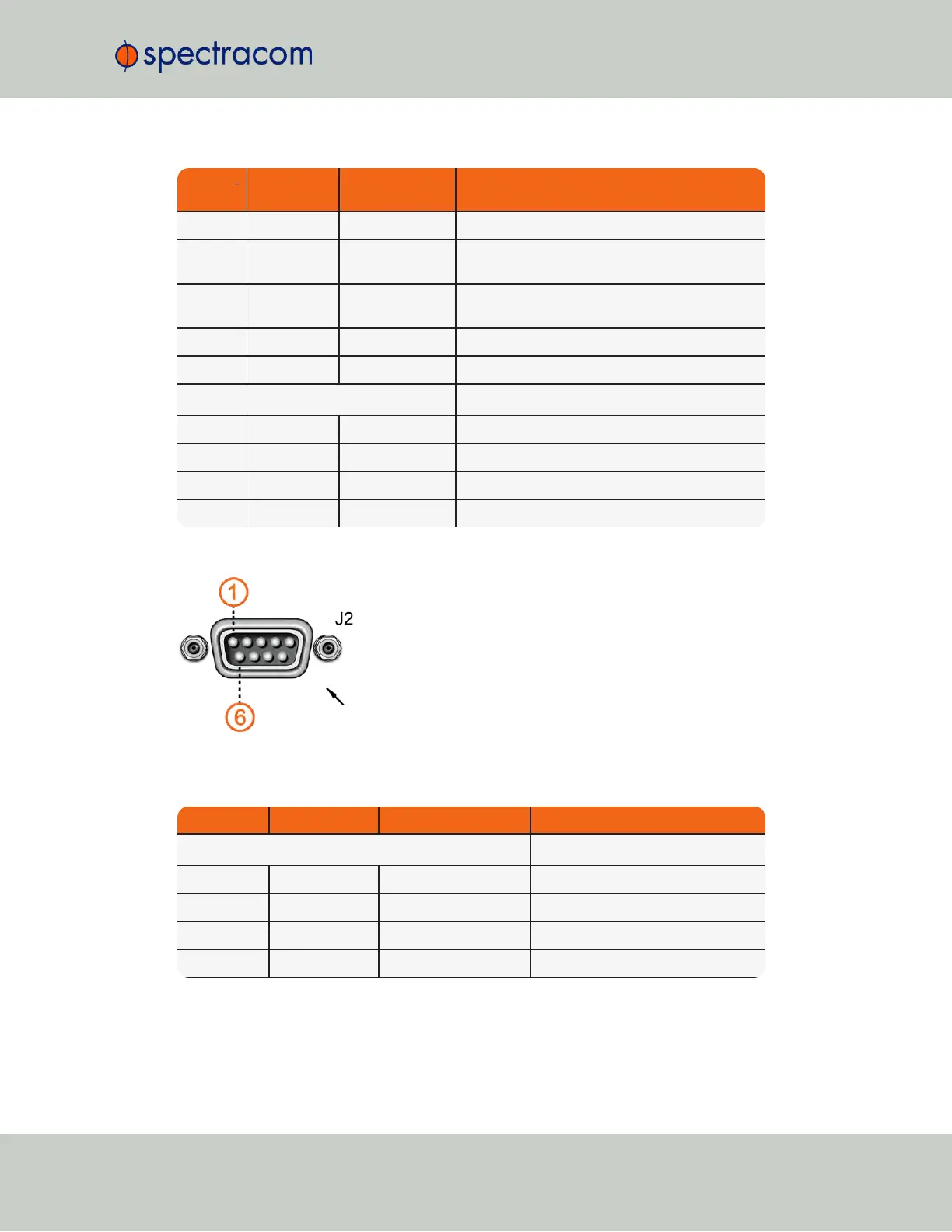

Pin Assignments: INPUT connector J2

Figure 5-51: INPUT connector J2

Table 5-22:

Pin-out, INPUT connector "J2"

Pin Number Signal Function Notes

Top row of 5 pins

1 PPS_IN 1PPS input

2 SERIAL_IN_RX RS-232 Receive data Data input into unit; ToD message

3 NC No Connection

4 NC No connection

SecureSync User Reference Guide 445

APPENDIX
