Switch time: 4ms, max.
Maximum Number of Cards: 1
Ordering Information: 1204-0F: Relay Outputs Module

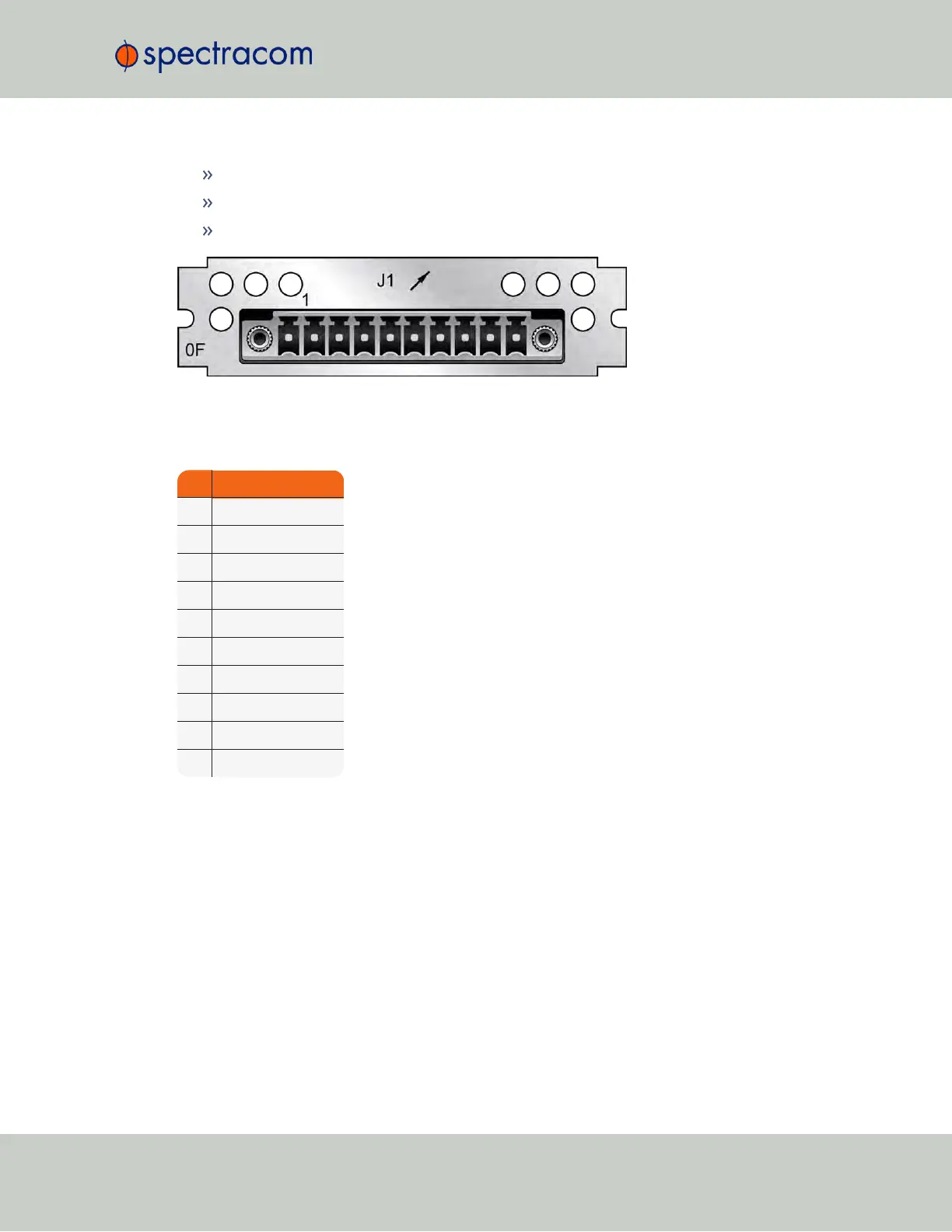

Figure 5-55: Model 1204-0F option card rear plate
Terminal block pin-out, alarm relay out
PIN SIGNAL
1 GND
2 Relay 0 NO
3 Relay 0 NC
4 Relay 0 COMMON
5 Relay 1 NO
6 Relay 1 NC
7 Relay 1 COMMON
8 Relay 2 NO
9 Relay 2 NC
10 Relay 2 COMMON
Operation of the Alarm Relay Card
SecureSync User Reference Guide 473
APPENDIX
