Signal Type: User selected (jumper switch):
>1MHz
1MHz to 100Hz
1PPS
Signal Level:
Sine Wave, 0.5V to 30V
p-p
TTL (50 Ω)
Default Power-on Switch State:
Initially, input “B”; until a valid signal on input "A" is detected, causing the switch state to
change to "A".
Maximum Number of Cards: 6
Ordering Information: 1204-2E: Revertive Selector Option Module

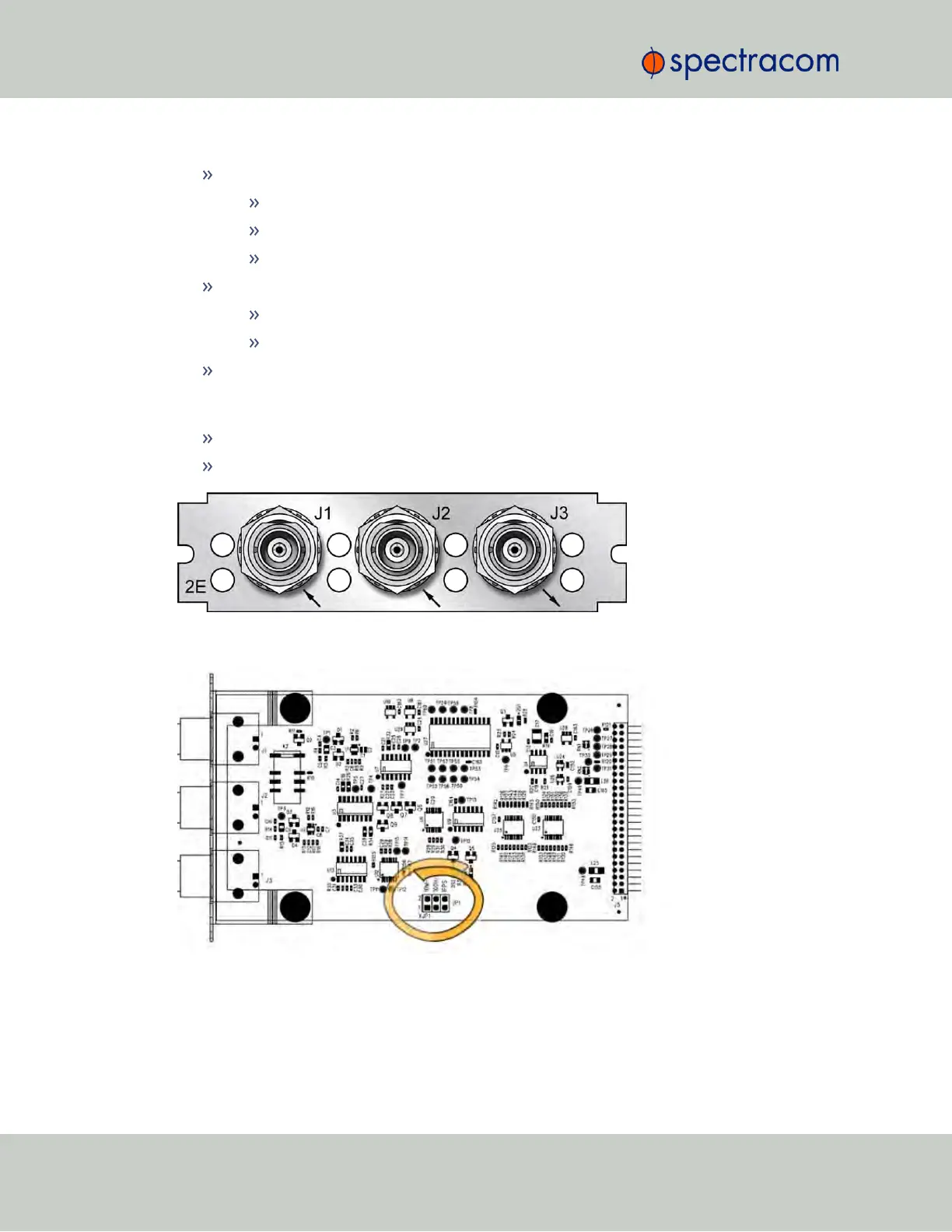

Figure 5-57: Model 1204-2E option card rear plate
Figure 5-58: Location of jumper switches
