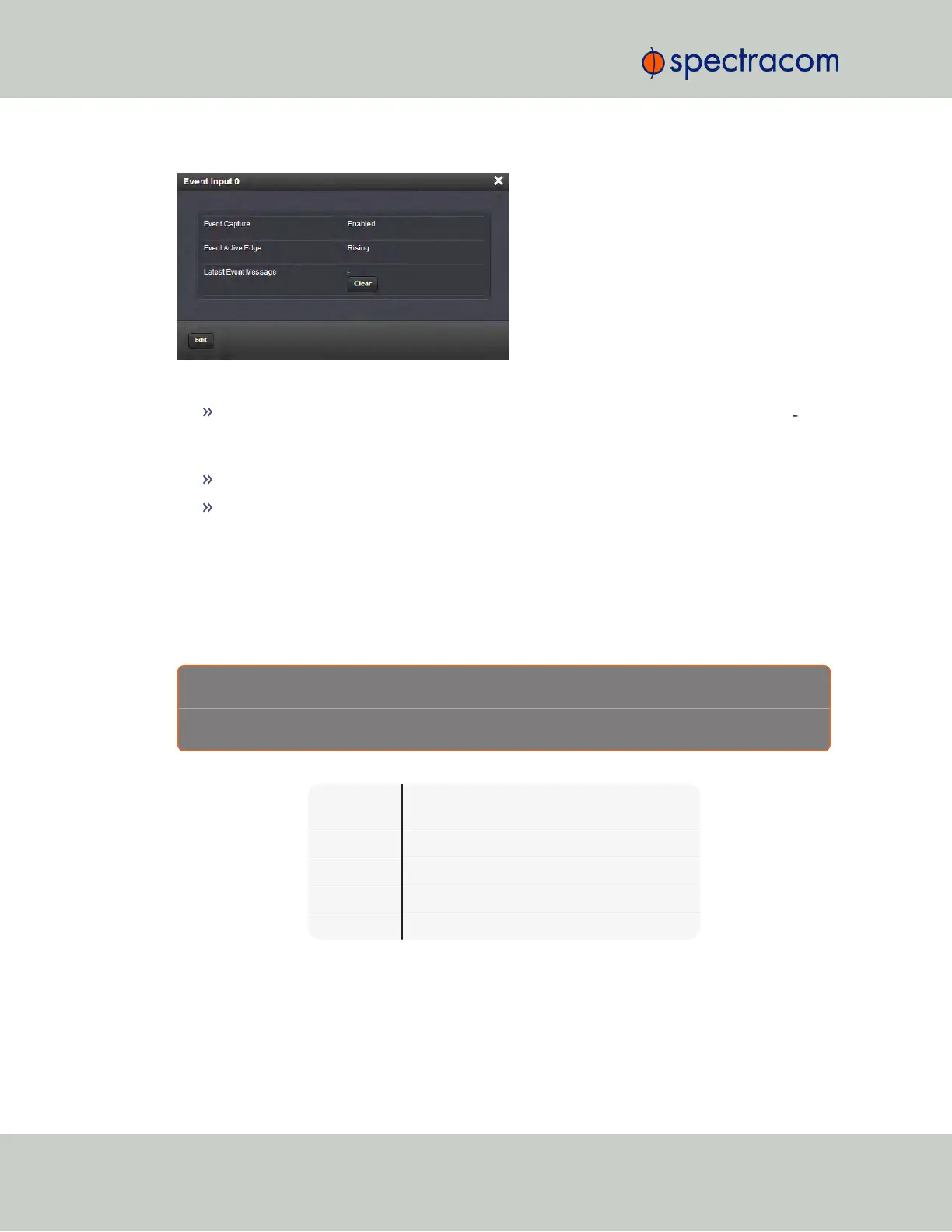

The Status window displays the following settings:
Event Capture: The processing of events on the Event Input port J2. When set to “Dis
abled”, no event messages will be queued. When set to “Enabled”, event messages will
be triggered (if a valid Format is selected).
Event Active Edge: The signal edge used for triggering events on Event Input port J2.
Latest Event Message: The last message sent. This can be cleared with the Clear button.
Event Broadcast Time Code Formats
The following ASCII-based time code formats are used with the Event Broadcast option card
(see "Event Broadcast [1204-23]" on page479.
Event Broadcast Format 0
E x a m p l e m e s s a g e :
SSSSSSSSSS.XXXXXXXXX<CR><LF>
Where:
SSSSSSSSSS 10-digit Seconds Time (references from January
1
st
, 1970)
. Decimal Point Separator
XXXXXXXXX 9-digit Sub-Seconds Time (5 ns resolution)
CR Carriage Return
LF Line Feed
Event Broadcast Format 1
486 SecureSync User Reference Guide
APPENDIX
