2.6.1 Assigning I/O Pins
VersaSync's I/O connector is software configurable, i.e. the pin interfaces and the signal mod-
ulations can be configured by the user via the VersaSync WebUI.
The software-configurable 26-pin I/O connector comprises 9 user-configurable Channels, plus
one fixed USB interface. Channels can be used for the following input or output interfaces:

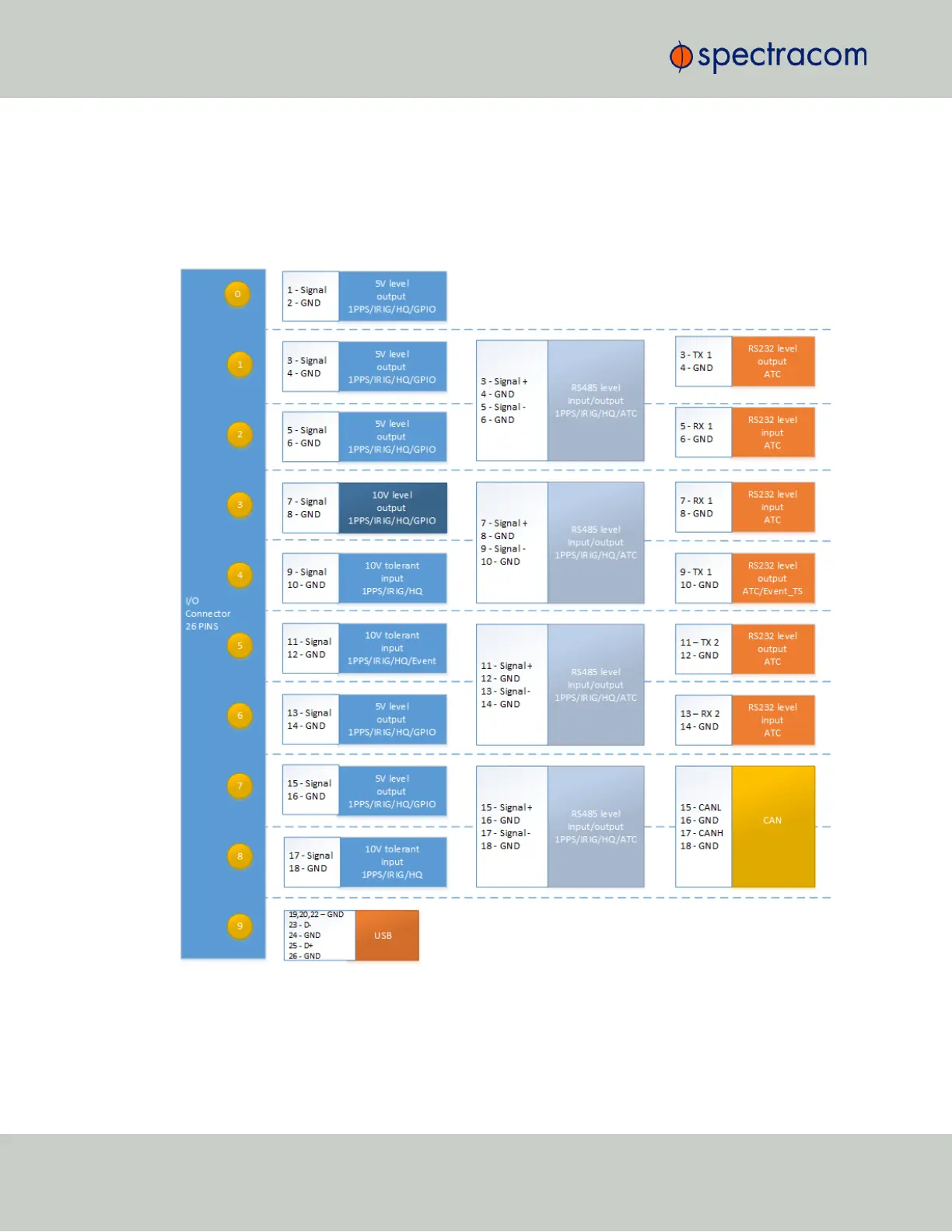

Figure 2-3: I/O configuration options
