3.
Apply your settings for:
Edge: [Rising, Falling] The on-time point of the 1PPS input can be configured to
be either the rising or falling edge of the 1PPS signal (by default, the rising edge
is the on-time point).
Offset: [-500000000 to 500000000 ns = ±0.5 s] Allows to offset the system's
1PPS on-time point, e.g. to compensate for cable delays and other latencies
4.
Click Submit.
2.6.4.2 Configuring a 1PPS Output
To configure a 1PPS output:
1.
Navigate to INTERFACES: OUTPUTS, or to INTERFACES: OPTION CARDS (white on orange).
2.
In the panel on the right, click the GEAR button next to the 1PPS Output you want to edit.
3.

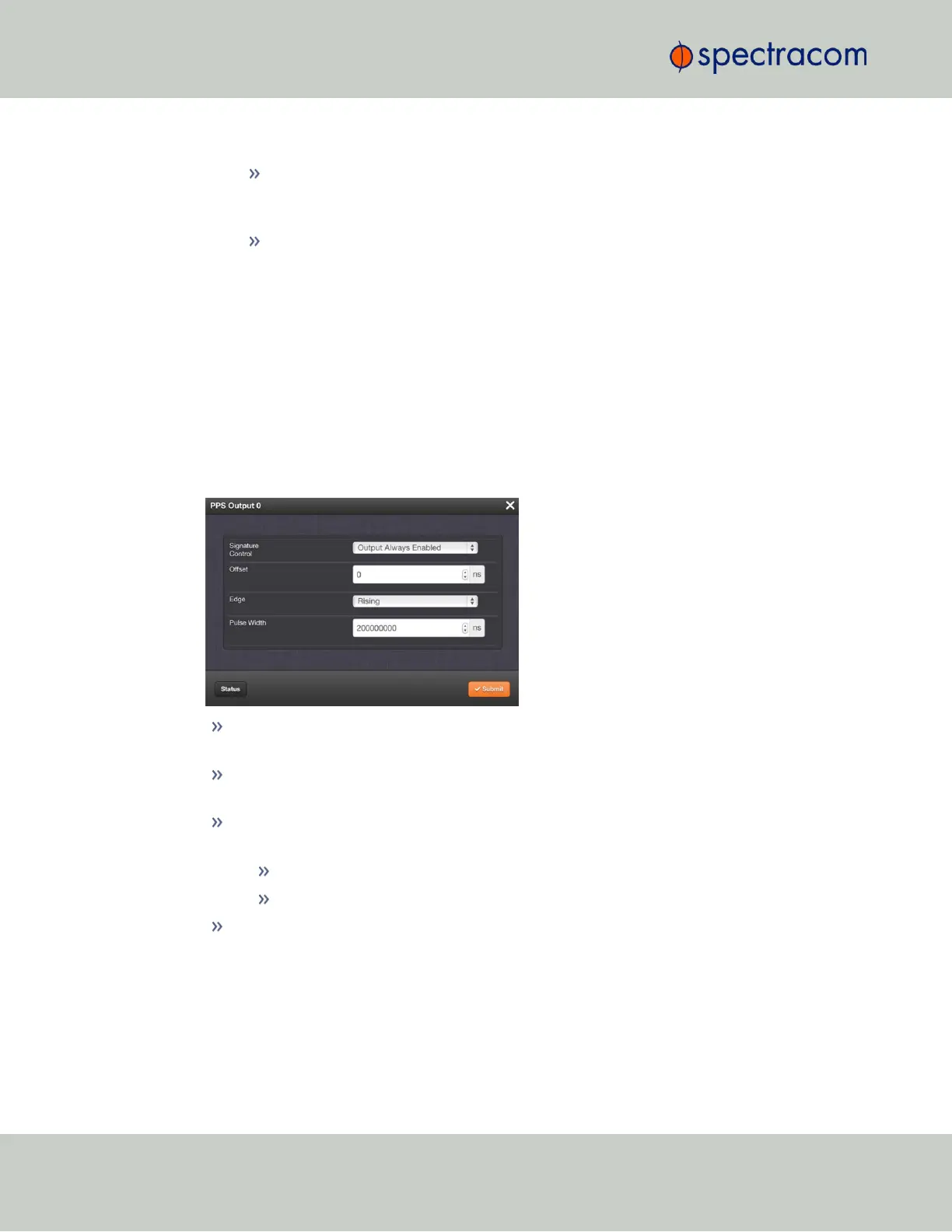

The 1PPS Output Edit window will display, allowing the following items to be configured:
Signature Control: Determines when the output is enabled. For more information, see
"Signature Control" on page52.
Offset [ns]: Allows to offset the system's 1PPS on-time point, e.g. to compensate for
cable delays and other latencies [range = –500000000 to 500000000ns = ±0.5 s]
Edge: Used to determine if the on-time point of the 1PPS output is the rising or the fall-
ing edge of the signal.
Rising
Falling
Pulse Width [ns]: Configures the Pulse Width of the 1PPS output.
[range = 20 to 900000000 ns = 0.0μs to 0.9 s]
[default = 200 ms]
4.
Click Submit.
