2.
Prior to assigning the new output, identify a pin pair in the Pin Layout table that is not
used (Signal = "None") or not needed. You can Delete it, but you may also simply
assign the new PPS Output as described below, thus overwriting the existing Input or
Output.
3.

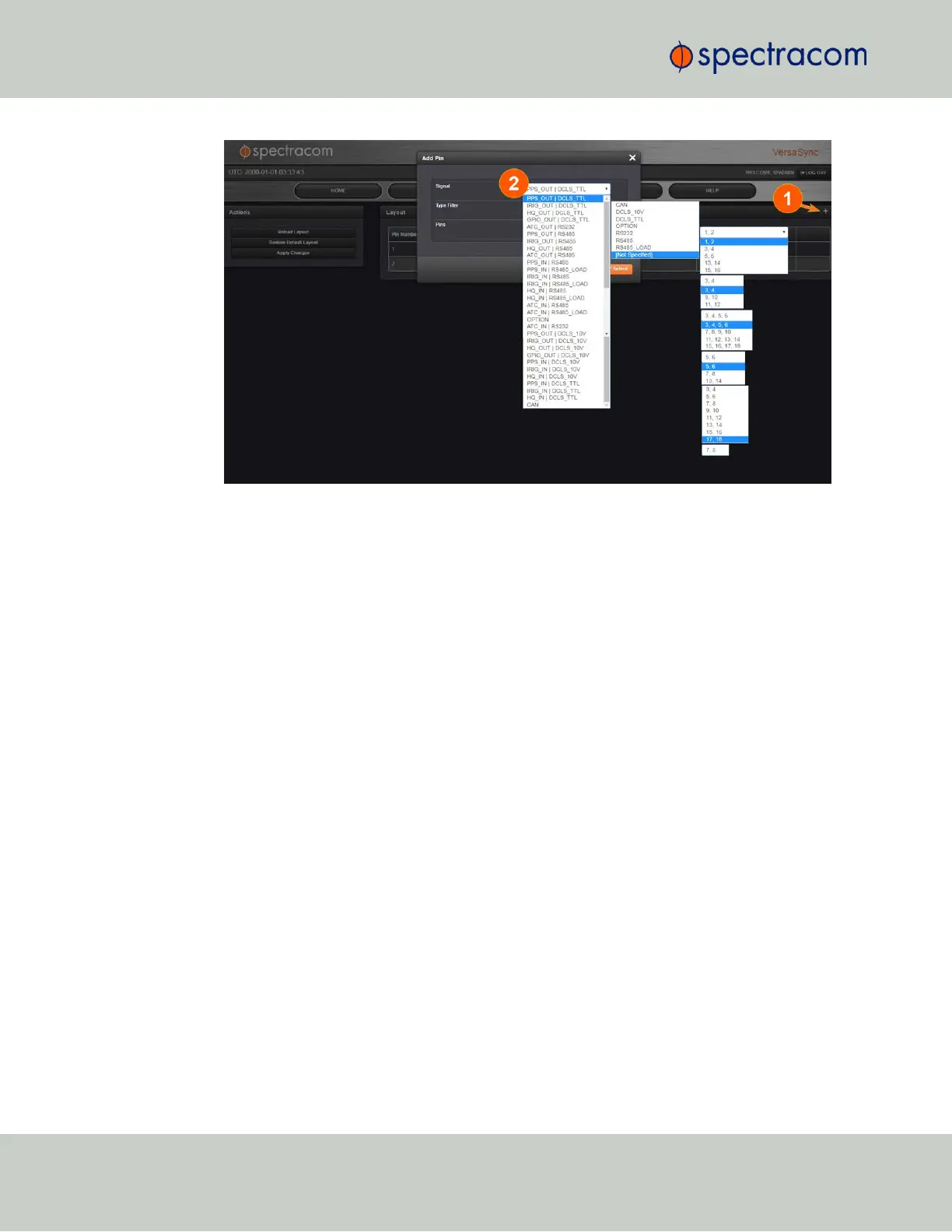

Add a pin configuration by clicking the PLUS icon in the top-right corner (1). The Add
Pin window will display.
4.
Start with the Type Filter drop-down menu (second line in the window) and select DCLS_
TTL.
5.
From the Signal drop-down menu, select GPIO_OUT DCLS_TTL.
6.
From the Pins drop-down menu in line 3, select e.g., pins 1,2.
7.
Click Submit.
8.
In the Actions panel, click Apply Changes.
Then, configure the settings for the newly created output:
9.
Navigate to INTERFACES > OUTPUTS > General Purpose Output/GP Output 0. The
GPOutput 0 status window will be displayed.
10.
Click Edit. The GPOutput 0 configuration window will be displayed.
11.
Under General, set the Output Mode to Square Wave, and check Output Enabled.
12.
To configure e.g., a 20 PPS signal, set the Pulse Width to 1 000 000 ns, and the Period
to 50 000 000 ns:
