Output Disabled in Holdover—The 1PPS output is present unless the VersaSync references
are considered not qualified and invalid (the output is NOT present while VersaSync is
in Holdover mode.)
IV.
Output Always Disabled—The output is never present, even if VersaSync references are
present and valid.
Table 2-4:
Signature control output-presence states
Ref.
Out-of-sync,
no holdover
In holdover
In-sync with
external reference
I.
II.
III.
IV.

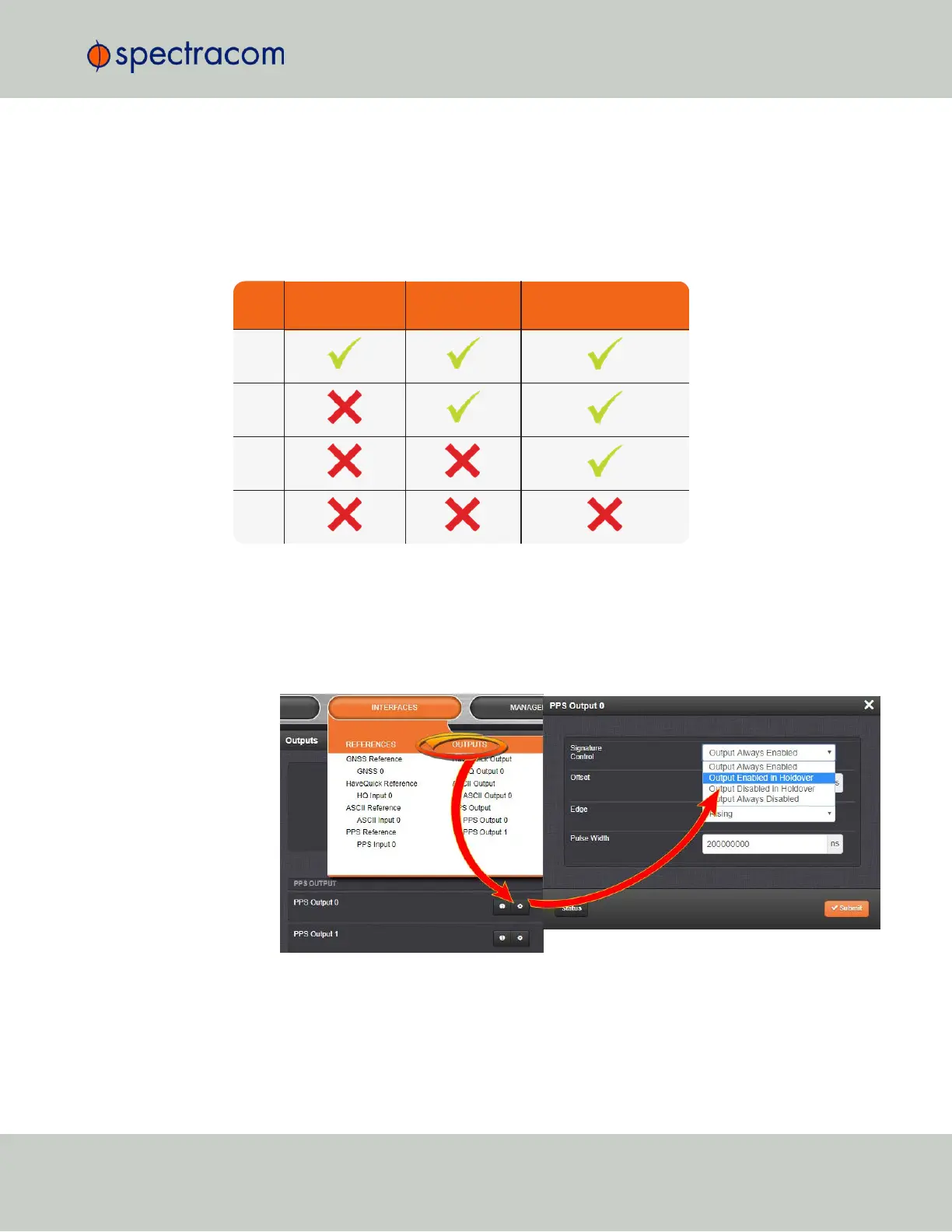

Configuring Signature Control for an Output
To review or configure the Signature Control setting for any output:
1.
Navigate to INTERFACES > OUTPUTS and click the output you want to configure.
2.
In the Outputs panel, click the GEAR button for the desired output. Ehe Edit window will
open with the current Signature Control setting, and a drop-down list to change it.
2.6 Configuring Inputs/Outputs
CHAPTER 2 • VersaSync User Manual Rev. 6.0
53
