Touchscreen Calibration Manual Tip Calibration
Page 142
© Copyright 2020 Stratasys. All rights reserved.
To recalibrate the touchscreen:
1. Open the Calibration page by selecting the C
alibration button within the Tools page.
2. Press anywhere within the Touchscreen Calibration row.
F

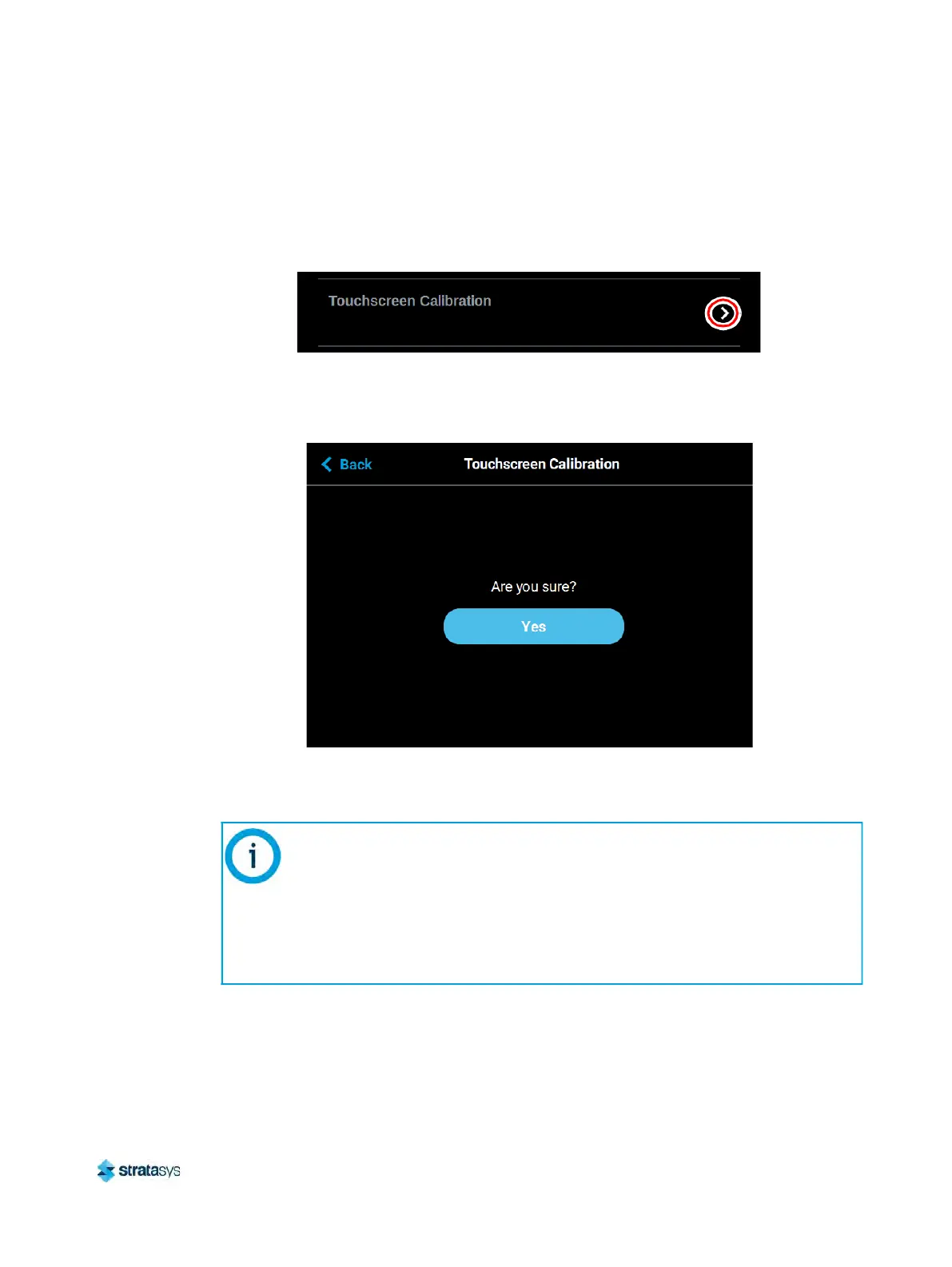

igure 20: Touchscreen Calibration Row
3. A dialog will be displayed asking you if you want to recalibrate the touchscreen, press the
Y
es button to confirm.
Figure 21: Recalibrate Touchscreen Confirmation Page
4. A dialog is displayed with instructions for recalibrating the touchscreen. Using a stylus,
t
ouch the screen in the center of the calibration point displayed. Repeat this process for the
remaining calibration points (1 point for each of the 4 corners of the screen).
The graphic displayed within the center of the dialog represents the time
remaining before the touchscreen calibration times out. The black portion will fill
the perimeter of the gray circle in a clockwise direction. You must touch the
calibration point displayed within the screen before the black portion of the
graphic completes a full circle. The timer will reset for each of the 4 calibration
points displayed. If you wish to exit the page without calibrating the screen simply
wait until the black portion of the graphic completes a full circle; the dialog will
close and you will be returned to the Calibration page.
