Objet1000 Plus User Guide 6 Operating and Maintaining the Objet1000 Plus 3DPrinter
DOC-06810 Rev.B 6-29
8. Cleantheorificeplates,withaback-and-forthmotion.Usethemirrorto
makesurethatyouhaveremovedalloftheresiduematerial.

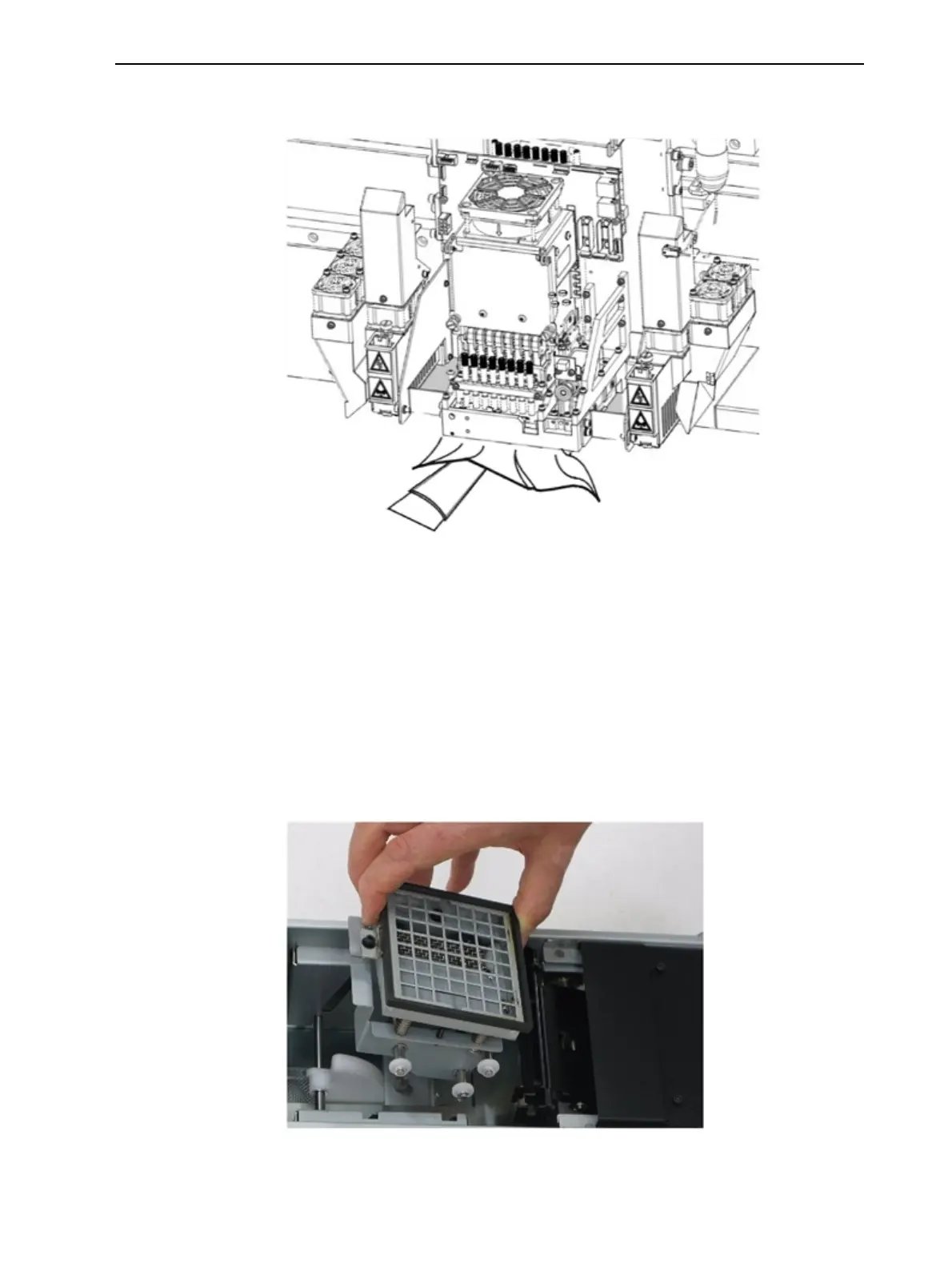

Figure6-28Cleaningtheheads
9. Aftercleaningtheprintheads,cleantheentirerollersurface,byrotatingit
asyouclean.
10.CleantheglasslensontheUVlamps.
11.Opentheservicewindowontheleftsideoftheprintertoaccessthe
wiper.
12.Usingagenerousamountofalcoholonthecleaningcloth,removeany
materialremainingonthewiperandthesurroundingarea.
13.Removeanypiecesofwastematerialcollectedinthepurgeunit.If
necessary,removethewastecollectortocleanit.Wipetherubberseal.

Figure6-29Purgeunitwastecollector
