3. RemovetherightUV-lampassembly:
a. DisconnecttheUVpowercableandthefanpowercable.

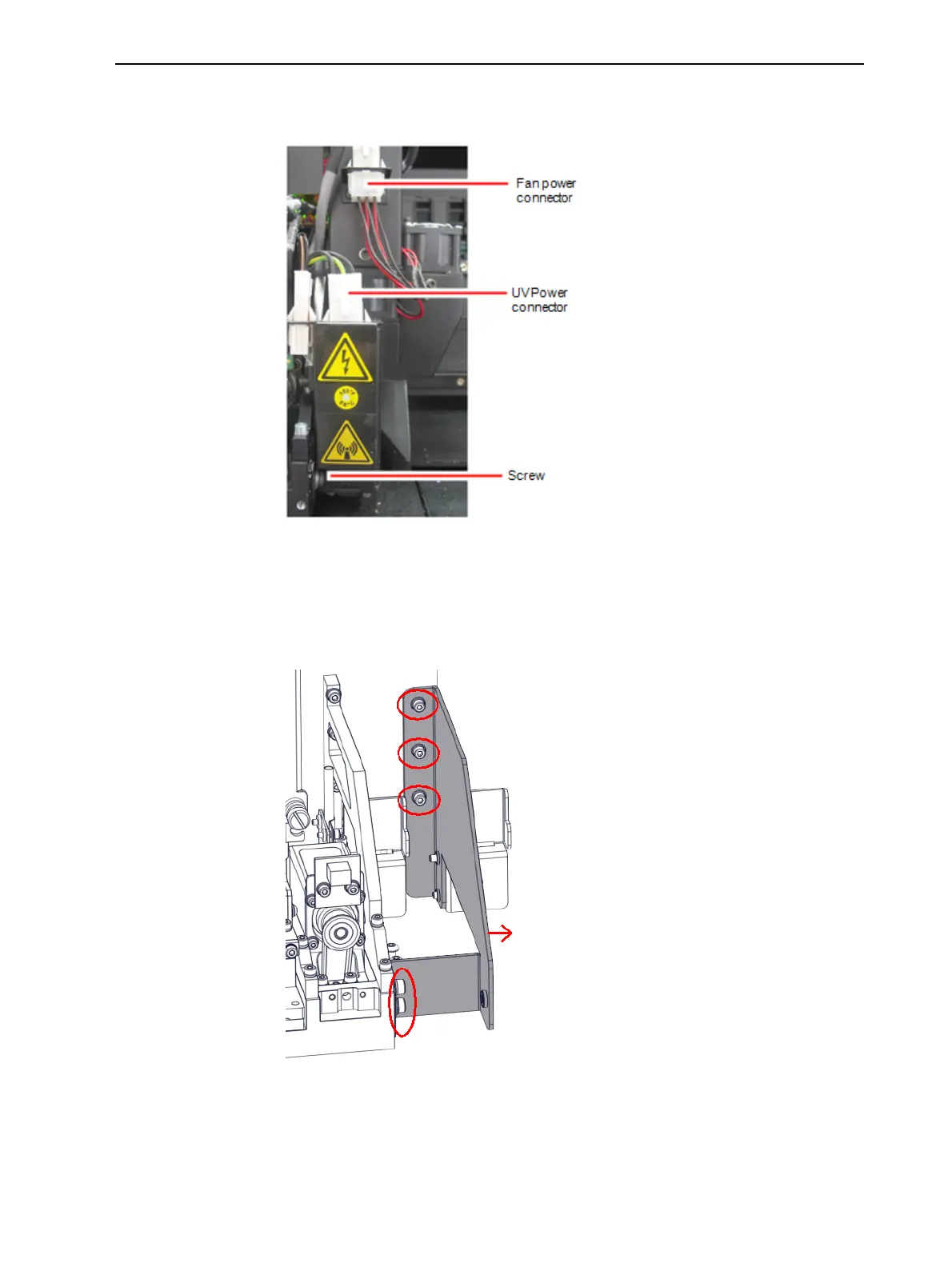

Figure6-31DisconnectingtherightUVassembly
b. RemovethescrewthatsecurestherightUVlamp,andthenpulland
liftuptheUVlamp.
4. Removethefive(5)screwsthatsecuretheUVbrackettotheprintblock
andremovethebracket.

Figure6-32RemovingtheUVbracket
