Objet1000 Plus User Guide 6 Operating and Maintaining the Objet1000 Plus 3DPrinter
DOC-06810 Rev.B 6-39
Whenyouhavefinishedaligningalloftheheads,thefollowingscreenis
displayed.

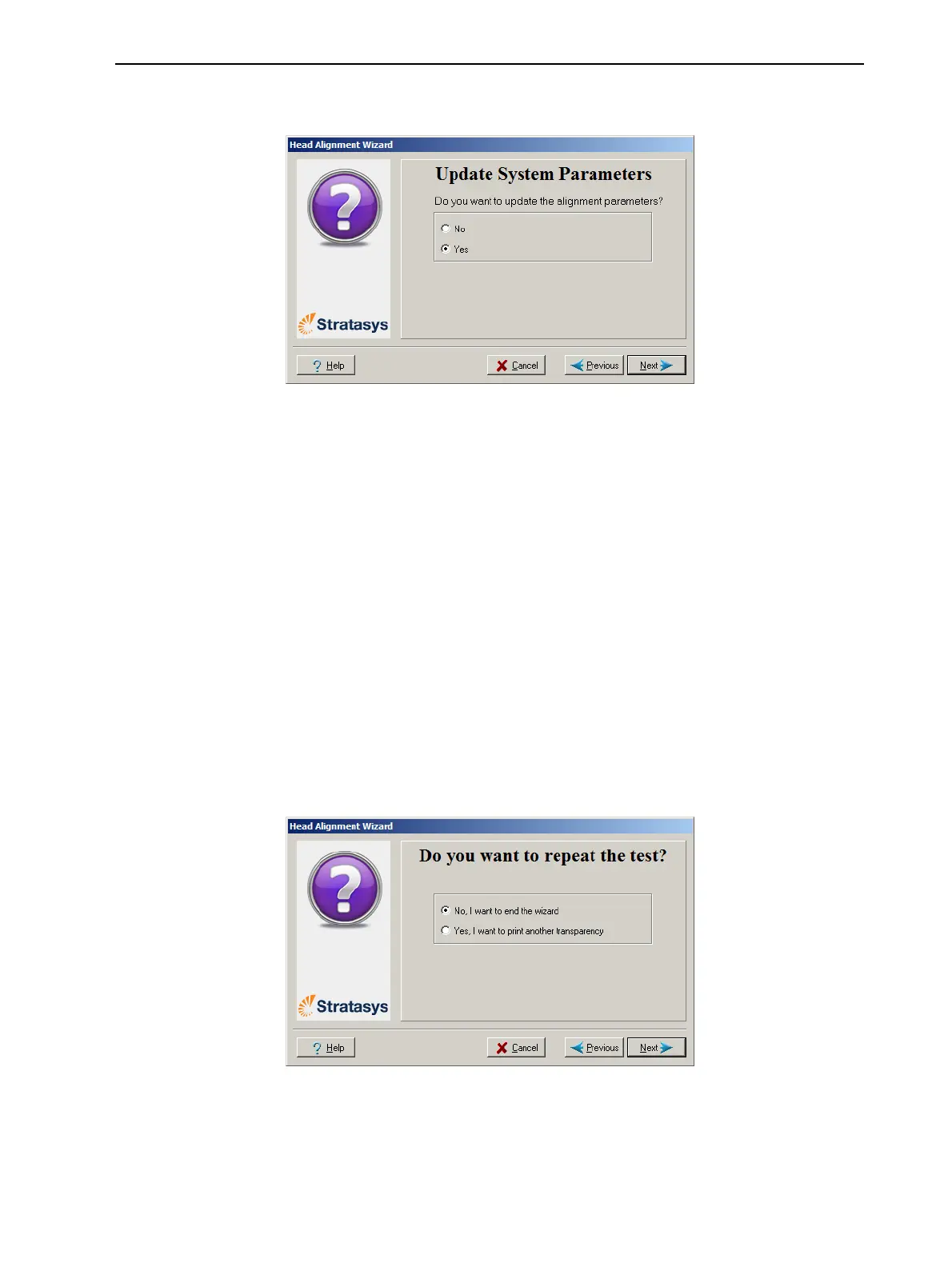

Figure6-48Parameterupdateconfirmation
13.Continueasfollows:
❒ Tomakethealignmentchangesintheprinter,makesurethatYesis
selected,andclickNext.
❒ Torecheckthealignmenttestresultsbeforemakingthealignment
changesintheprinter,clickPrevious.
❒ Ifyoudonotwanttomakealignmentchangesintheprinteratthis
time,selectNo andclickNext.
14.Inthefollowingscreen,youcanchoosetoeitherrepeatthehead
alignmentprocedureorclosethewizard.
❒ Ifthemostcloselyalignedverticallinesforaprintheadwereateither
extreme,chooseYestoruntheHeadAlignmentwizardagain,then
clickNext.
Thetransparencytestwillshowiftheheadsarenowproperlyaligned,
and—ifnot—thewizardwillallowyouto“finetune”thealignment.
❒ Iftheverticallinesfortheprintheadswerenotalignedateither
extreme,chooseNotoclosethewizard,thenclickNext.
Figure6-49Repeat head alignmentoption
