Objet1000 Plus User Guide 6 Operating and Maintaining the Objet1000 Plus 3DPrinter
DOC-06810 Rev.B 6-53

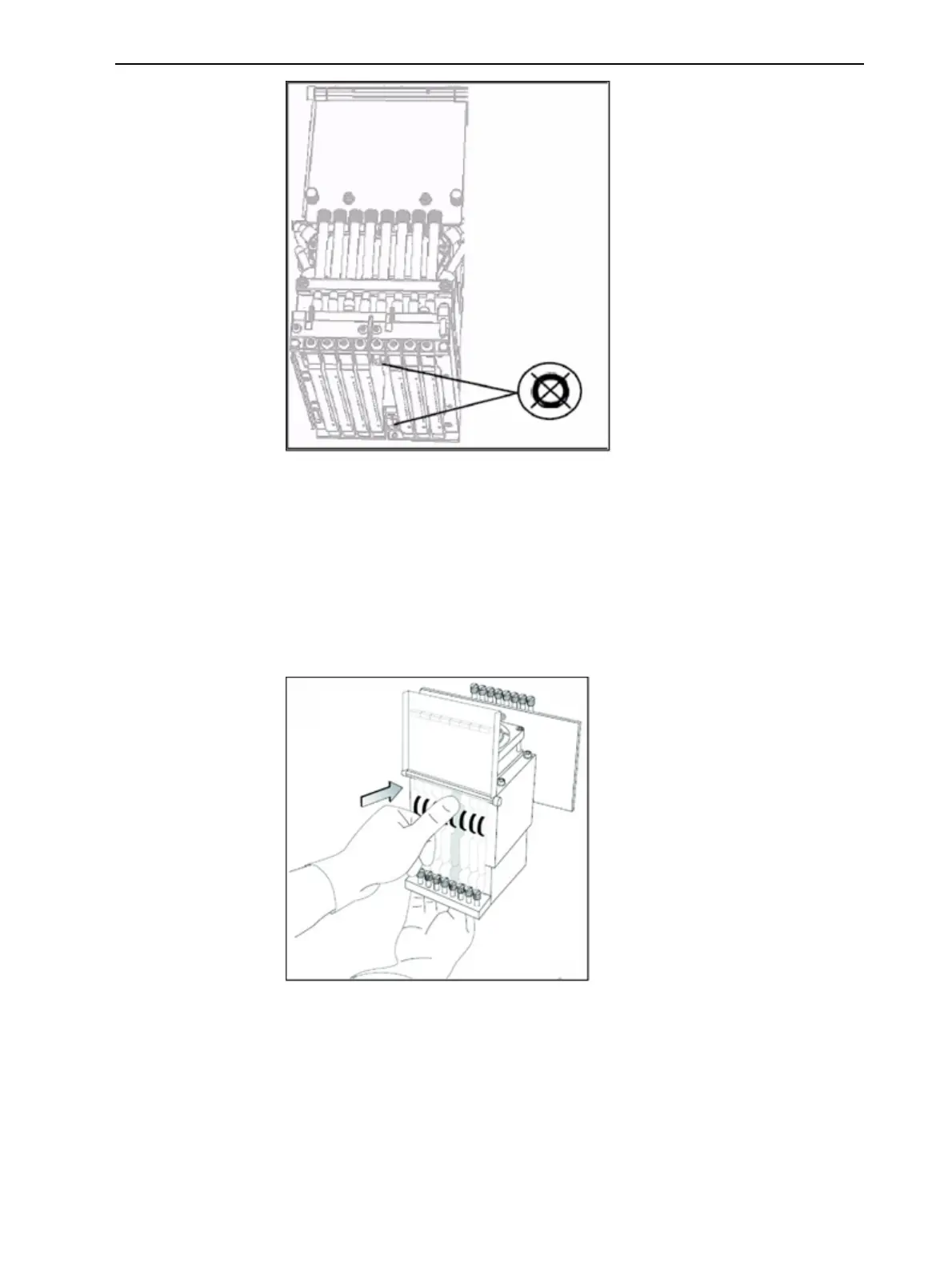

Figure6-75MakingsuretheO-ringsarenotstucktotheprintblock
Installingthe
NewHead
14.Inspectthereplacementhead,andmakesurethattheO-ringsealsarein
place(seeFigure6-74onthepreviouspage).
15.Gentlyinsertthereplacementheadintothevacantslotintheprintblock,
andpushtheprint-headdrivercardintoitssocket.
Note:Makesuretoinserttheheadwiththedrivercardfacingitssocket,inthe
rearoftheprintblock.
Figure6-76Insertingtheprint-headdrivercardintoitssocket
