118
S
OndaScope V
ariant

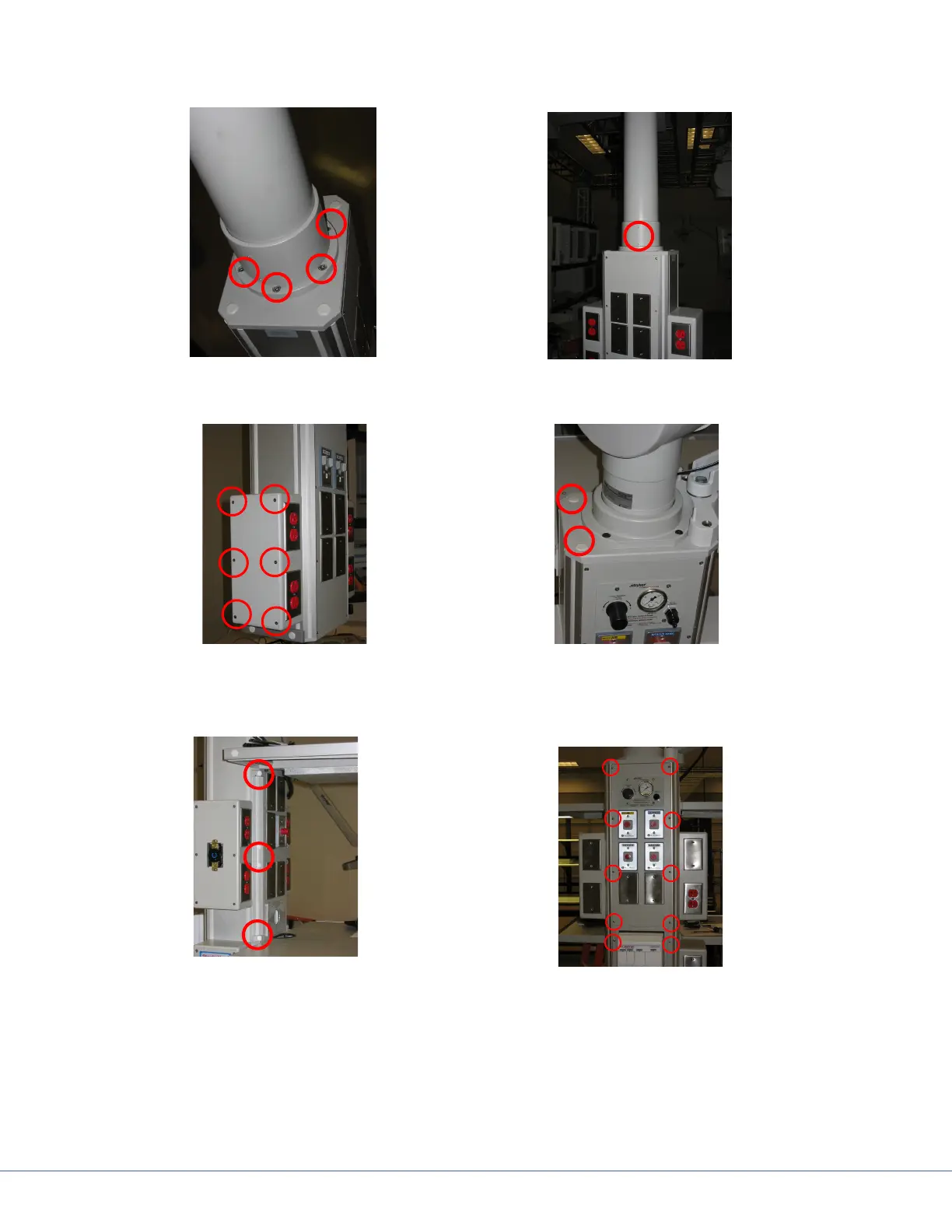

M8 X 30 Low Head SHCS and Serrated
W
asher
#4 X 0.25 inch Pan Head Sheet Metal Screw
M4 X 14 Phillips PHMS
Location: Module Box
Generic Name: #8-18 X 5/in OHMS
Location: T
op of Service head
Generic Name: Plastic Cap; Screw: M10 X
X 30 Low Head SHCS
Location: Shelves
Generic Name:
Screw: M6 X 16 SHCS; Plastic Cap:
W
asher: Serrated Belleville for M6 Screw
Location: Front and Rear Service Head
Panels
Generic Name: M4 X 10 Phillips OHMS
117
119
Table of Contents
Default Chapter
5
Table of Contents
5
1 Warnings and Cautions
10
Safeguards and Precautions
10
Warnings
10
2 Product Symbol Definition
11
3 Tool List
13
Required Tools
13
Optional Tools
13
4 Unpacking
14
Halogen Light
14
Suspension Box
14
Accessory Box
14
Light Head Boxes
14
LED Light
15
Suspension Box
16
Accessory Box
16
Light Head Boxes 1 and 2
16
Flat Panel Arms
17
Booms
17
5 Preparing the Mounting (Interface) Plate
18
6 Preparing the Suspensions
19
Installing the Cable Kit for Lights
19
Surgical Lights
20
Standard Horizontal Arm
20
Extended Horizontal Arm
20
Alternate Light Installation Instructions
21
Flat Panel
22
Booms
22
Routing Cables
24
7 Installing the Suspension and Boom Arms
25
Alternate Light Installation Instructions (Continued)
26
8 Installing Light Heads
27
LED and Halogen
27
Standard Light
27
Low Ceiling Light
28
9 Powering the System
31
Halogen Lights
31
Electrical and Data Connections
31
LED Lights
32
Power Supply Box Wall Mount (Optional)
32
Power Supply Box Connections
33
Power
34
Control
34
Wall Control Unit Port
35
Sorn
35
Sidne
35
Expansion Port (Optional)
35
Visum LED New Installation Setup
36
Required Tools
36
Installing USB to RS-232 Adapter (for Laptops Without Serial Ports)
36
Connecting a Laptop to the SIDNE Port on Visum LED System
37
Visum LED Main Menu
39
New Installation
39
10 Monitor Assembly
40
Light Flat Panel or Single Panel Installation
40
Adjusting the Yoke
41
Adjusting the Width
41
Adjusting the Height
45
Attaching the Monitor
46
Balancing the Monitor
48
Adjusting the Brakes
50
11 Boom Shelf Attachment and Adjusting Brakes/Stops
51
Boom Shelf and Accessories Attachment
51
Flexis Shelf Installation
51
Flexis Handle to MFR Bracket Installation
54
Flexis Handle to Service Head Installation
56
Installing Auxiliary Plates
58
Installing Other Accessories
59
Installing GCX Accessory Track on OSC600 down Tube
59
Drawer Installation
59
Lights and Flat Panel Arms
60
Height Adjustment
60
Tension Adjustment
62
Adjusting the Friction Brakes
62
Adjusting the Brake Force of the Extension and Spring Arms
64
Adjusting down Tube Screws
64
Adjusting the Cardanic Suspension
66
Boom Arms
67
Osc400
67
Osc600
70
12 Installing Covers
72
Lights and Flat Panel Suspension
72
Booms
72
Tandem
73
Cable Covers
75
Flat Panel/Light/Light Suspension
75
Light/Flat Panel Suspension - Teacup Installation
75
MMP200, OSC400, and OSC600
76
Mounting Motor Ring Covers
77
Replacing Rear End Spring Arm Covers
77
Installing a Flexstrip Kit (Dual Flat Panel Arm Only)
78
13 Accessories
79
Lights
79
Halogen In-Light Camera and Weighted Light Handle Assemblies
79
LED In-Light Camera and Weighted Light Handle Assemblies
79
Field Upgrade for Strykecam In-Light Camera
79
Power Supply Box Components
81
Camera Installation
82
14 Legacy
84
Suspension Installation
84
Installing Spring Arms (if Necessary for Lights Only Suspension)
84
Standard Width Yoke
87
Halogen Light Flat Panel Stop Replacement
87
Variant
89
Installing GCX Accessory Track on OSC400 Service Head
89
15 Cleaning and Completion
93
16 Servicing the Visum 600/450
94
Electronic Control System
94
Power Supply Box
96
Halogen Power Supply Box Troubleshooting Guide
96
Wall Control
99
Plug Layout of the Electronic Control System
101
Plug Allocation
101
Location of the Plug and Diagnostic Leds on the Terminal
102
Plug Allocation Operating Console and Diagnostic Leds
103
Plug Locations of the Power Box
103
Connections at the Front
104
Connections at the Back
105
Connection Structure of Systems
107
Can Bus Troubleshooting
110
Light Block Diagram
110
17 Servicing Booms
114
System Operation
114
Troubleshooting
114
Air Leaks
115
Miscellaneous Hardware Parts List
117
Replacing the Trim Strip
119
Replacing Med Gas
120
Replacing a Nitrogen Regulator
120
Replacing Med Gas Plate
120
Replacing the Brake Bladder
121
Reassembling the Service Head
127
Removing and Attaching the Front and Back Plates
127
Removing and Attaching the MFR
128
Removing Extrusions
129
Installing Extrusions
129
Removing Modules
130
Installing Modules
132
Replacing the Motor
133
Electro-Pneumatic (EP) Module
135
Removing the Electro-Pneumatic (EP) Module
135
Installing an Electro-Pneumatic (EP) Module
135
Generation 1 Service Head
136
Replacing a Shelf with Brake
136
Replacing the Brake Button
138
18 Servicing the LED
140
19 Replacement Part Numbers
141
20 Contact Information
147
