11.1.5 Installing Other Accessories
For installation instructions on all other accessories, such as for GCX, IV transfer poles, StrykeVac,
etc., please refer the manufacturer’s instructions. For instructions on installing a SHAPE Arm, refer to
MAP07000.

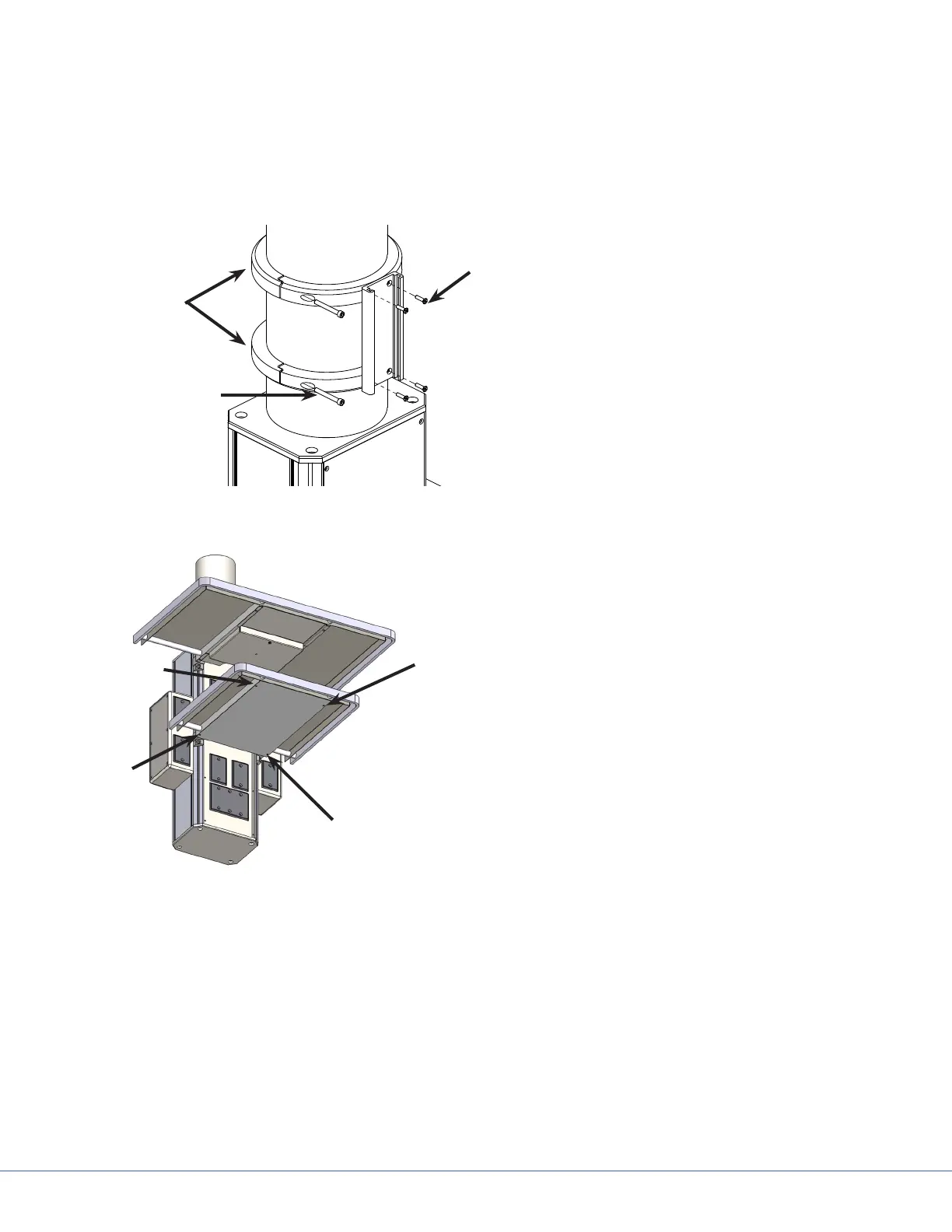

11.1.6 Installing GCX Accessory Track on OSC600 Down Tube
Clamps
4 X 1/4-20 X 2"
4 X 10-24 X 34"
1. Attach track to clamps with four 10-
24 X 3/4 FHMS. e clamp beveled
edges should be oriented toward the
top of the upper clamp and toward
the bottom of the lower clamp.
2. Attach assembly to service head
down tube with mating clamps and
four 1/4-20 X 2 SHCS. Position
and orient assembly on tube where
desired.
11.1.7 Drawer Installation
1. Pull drawer unit to the edge of the frame, tilt drawer
upward, and remove from frame.
2. If the shelf has a bottom plate, remove the four
screws from the plate. Use tape to hold the plate in
place. Make sure that the brake lines and StrykeVac
leads (if applicable) are not pinched between the
bottom plate and the shelf frame.
