Stryker OSC400 - Variant; Installing GCX Accessory Track on OSC400 Service Head

89
S
14.5 Variant

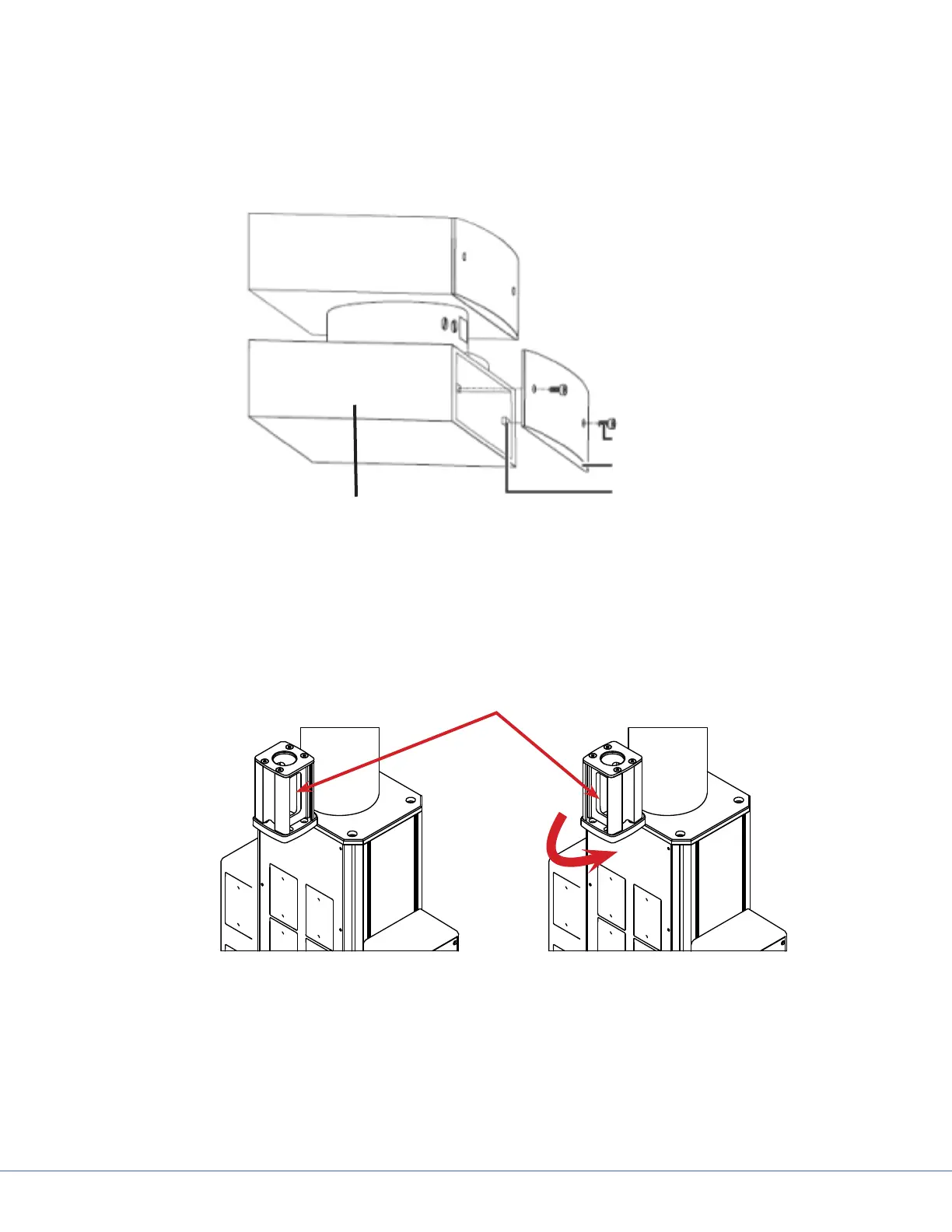

1. Place the end cap onto the extension arm and secure it using two countersunk Phillips screws.
2. Check the extension arm end cap and countersunk Phillips screws to ensure they are securely
fastened.
3. Repeat for each end cap.
Extension Arm
Countersunk Screws
End Cap
Threaded Holes
Variant End Cap Installation
14.6 Installing GCX Accessory Track on OSC400 Service Head
1. Determine the desired mounting conguration, as shown in the proceeding gure. e track
can be oriented upward or downward and can be rotated so that the accessory mounting faces
point to the sides or forward.
LOW HEAD SHCS, M10X40
WASHER
Accessory Mounting Face
