9.3.1 Power
Light Power
Connector Tabs
Light Power
Connector
Light Power
Panel Mount
Light Power
Connector
Release

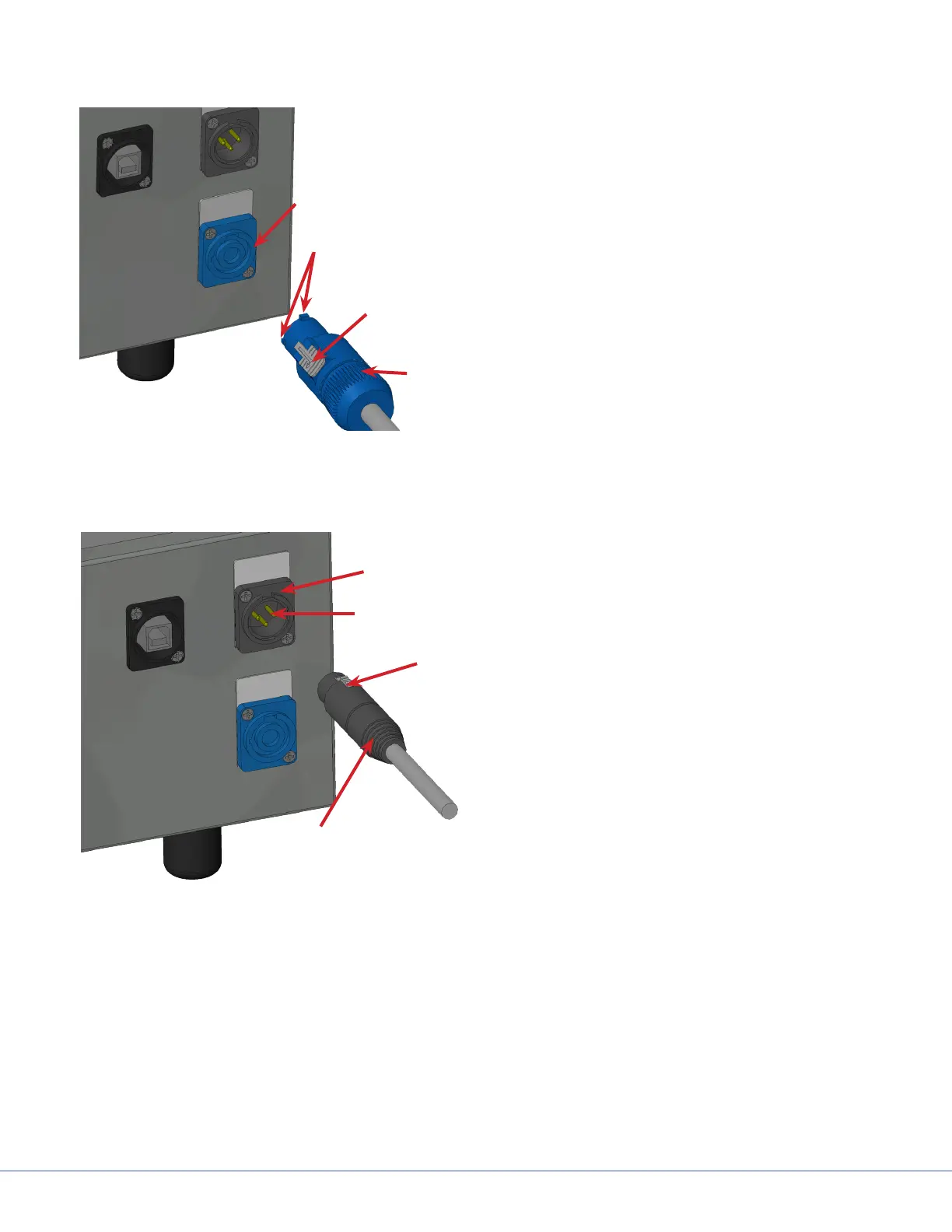

Power Supply Box Light Connections
1. Align the Power Connector Tabs
with the slots on the Light Power
Panel Mount.
2. Insert the Power Connector into the
mount and turn it clockwise until
you hear a click.
is ensures that the connection is
secure.
9.3.2 Control
Control Panel
Prongs
Control Panel
Mount
Control
Connector
Control
Connector
Release
Power Supply Box Control Connections
1. Align the prongs on the Control
Panel Mount with the slots on the
Control Connector.
e prongs must t into the slots on
the Control Connector.
2. Insert the Control Connector into
the Control Panel Mount and press
until you hear a click.
is ensures that the connection is
secure.
