Stryker OSC400 - Installing a Flexstrip Kit (Dual Flat Panel Arm Only)

78
S
3. Insert ex strip with two holes on top.
4. Insert ex strip with one hole on bottom.
5. Move spring up and down to make sure
spring functions properly.

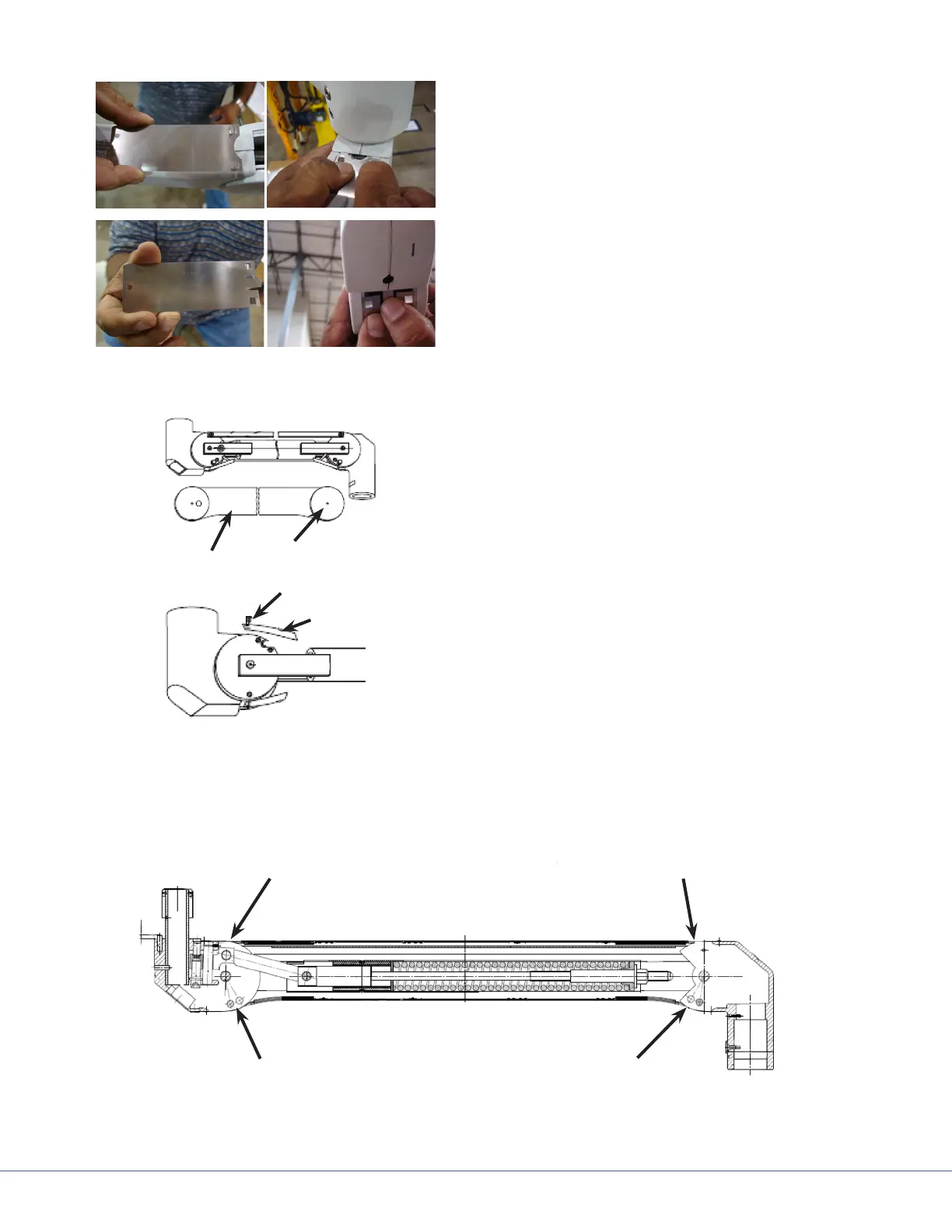

12.5 Installing a Flexstrip Kit (Dual Flat Panel Arm Only)
Cover
M4 X 6
1. Undo the four M4x6mm Phillips screws
and remove the covers.
Torx Screws
Flexstrip
2. Undo the two torx screws for each exstrip
and remove the exstrips.
3. Screw the two cover halves tight using M4x6 mm Phillips screws.
4. Insert the long exstrip into the guideway of the cover halves and screw tight with two torx
screws.
5. Insert the three short exstrip into the guideway of the cover halves and screw tight with two
torx screws.
Short Metal Strip
Short Metal StripLong Metal Strip
Short Metal Strip
6. Check that the cover halves are securely in place.
