10. Monitor Assembly
10.1 Light Flat Panel or Single Panel installation
1
17
16
14
13
12
11
10
9
7
6
5
4
3
2
15
8

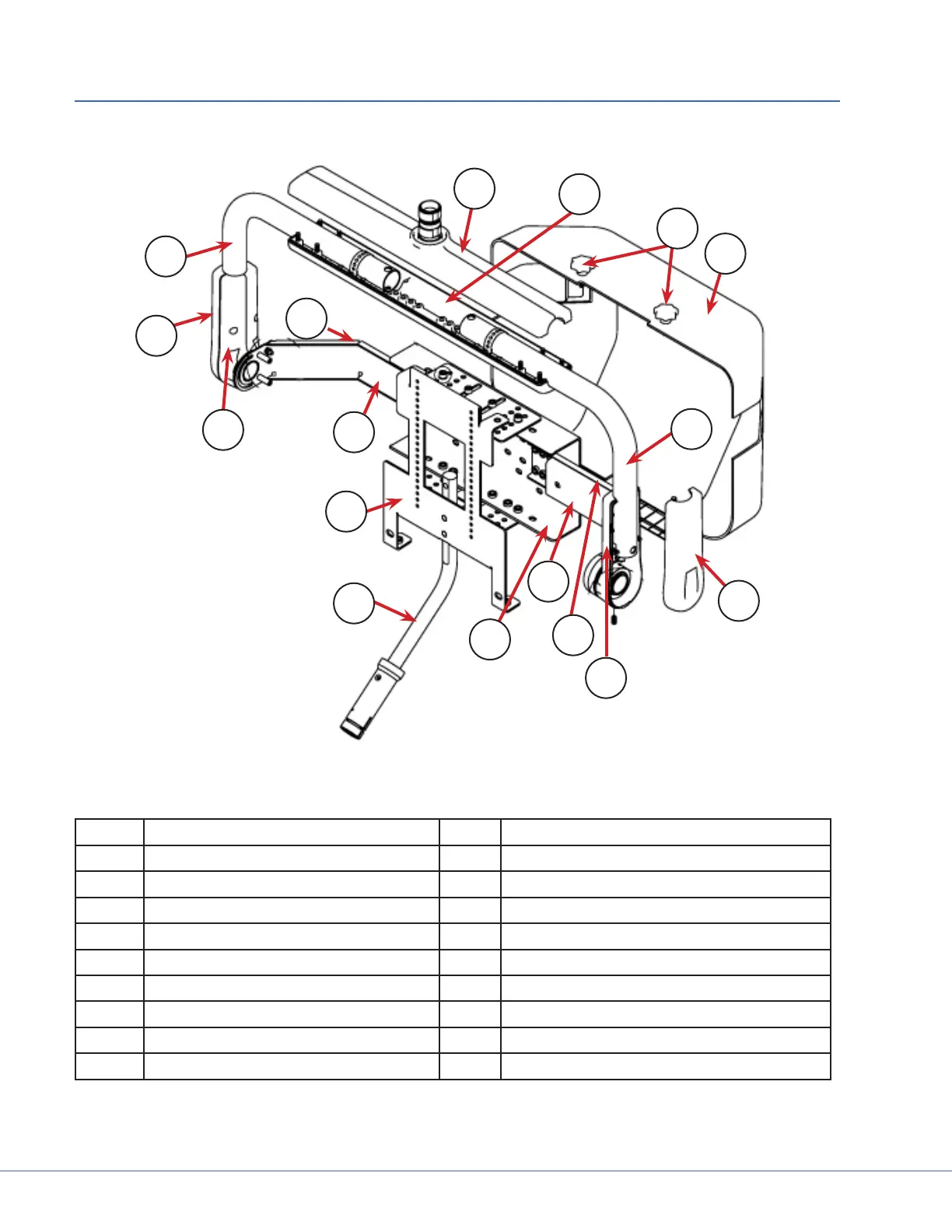

Yoke Anatomy
Part Description Part Description
1 Shroud 10 Central Monitor Support Bracket
2 Shroud Knobs 10. Monitor Vertical Adjust Bracket
3 Monitor Width Adjust Clamp Bottom 12 Handle Assembly
4 Monitor Width Adjust Clamp Top 13 Le Pivot Arm Cable Cover
5 Right Side Support Tube 14 Le Pivot Arm
6 Outer Right Adjust Clamp 15 Inner Le Adjust Clamp
7 Inner Right Adjust Clamp 16 Outer Le Adjust Clamp
8 Right Pivot Arm 17 Le Side Support Tube
9 Right Pivot Arm Cover
