90
S
LOW HEAD SHCS, M10X40
WASHER
Accessory Mounting Face
t
Accessory Mounting Interface
1/4-20 X 1 FHSCS
1/4-20 X 5/8 FHSCS
1/4-20 X 1 FHSCS
Counterbored Holes
1/4-20 X 1 FHSCS

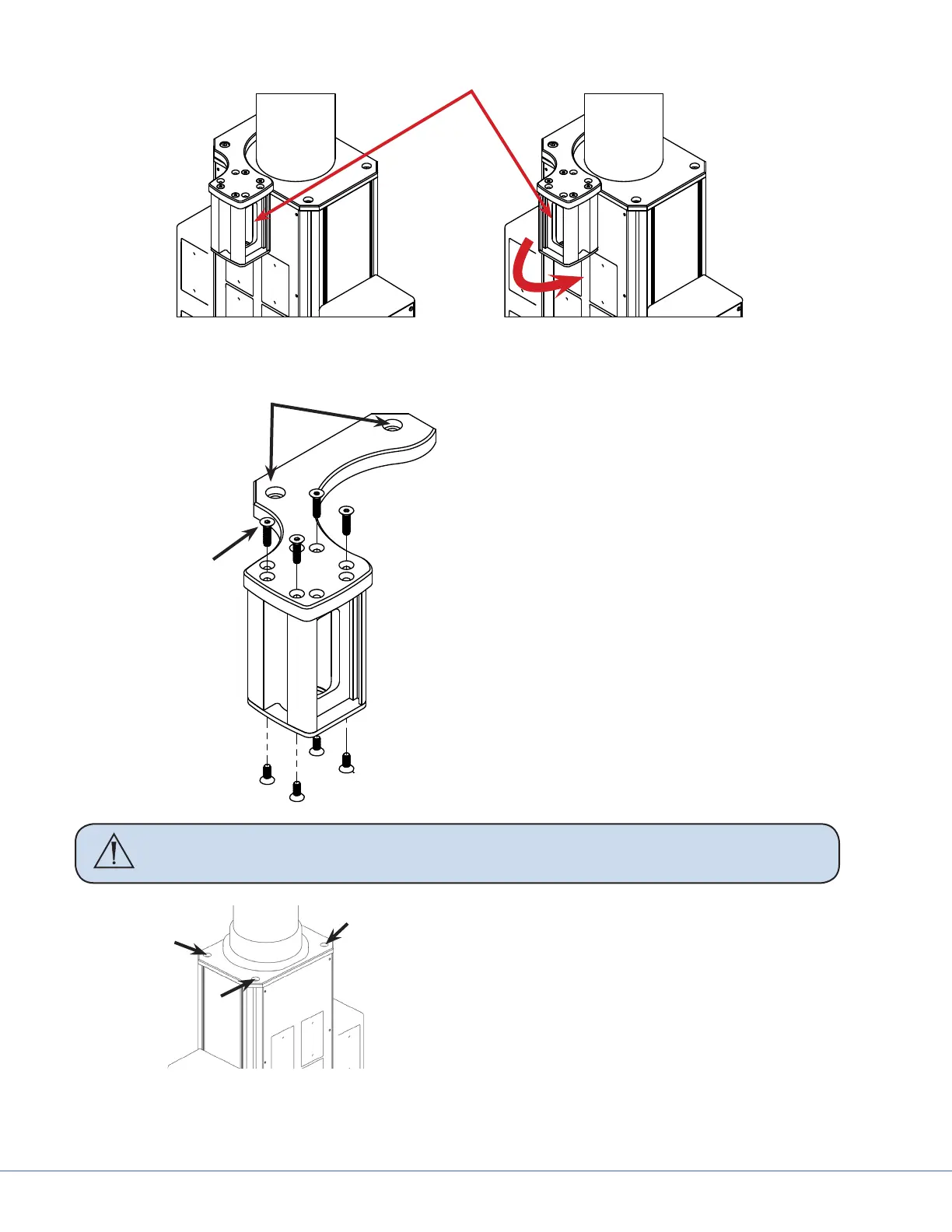

2. Attach the accessory track to the mounting
bracket in desired conguration with four
1/4-20 X 1 FHSCS. Note that the coun-
terbored holes on the mounting bracket
will point upward when mounted on the
service head.
3. Remove all equipment from service head,
including equipment on shelves, at panel
monitors, accessory arms (SHAPE Arms,
other GCX accessories), IV poles, etc.
WARNING Failure to remove all equipment from service head before installation can
result in injury or damage to the service head and equipment.
4. Remove and save cosmetic caps from
screws in top of service head.
5. Determine the direction in which the
mounting bracket will be oriented and re-
move the screw and washer from the hole
in the top plate that will be under the rear
of the mounting bracket. Save washer, but
discard screw.
To Next Page
