WARNING Remove only one screw from service head top plate. Simultaneous removal
of multiple screws can result in injury or damage to the service head and
equipment.

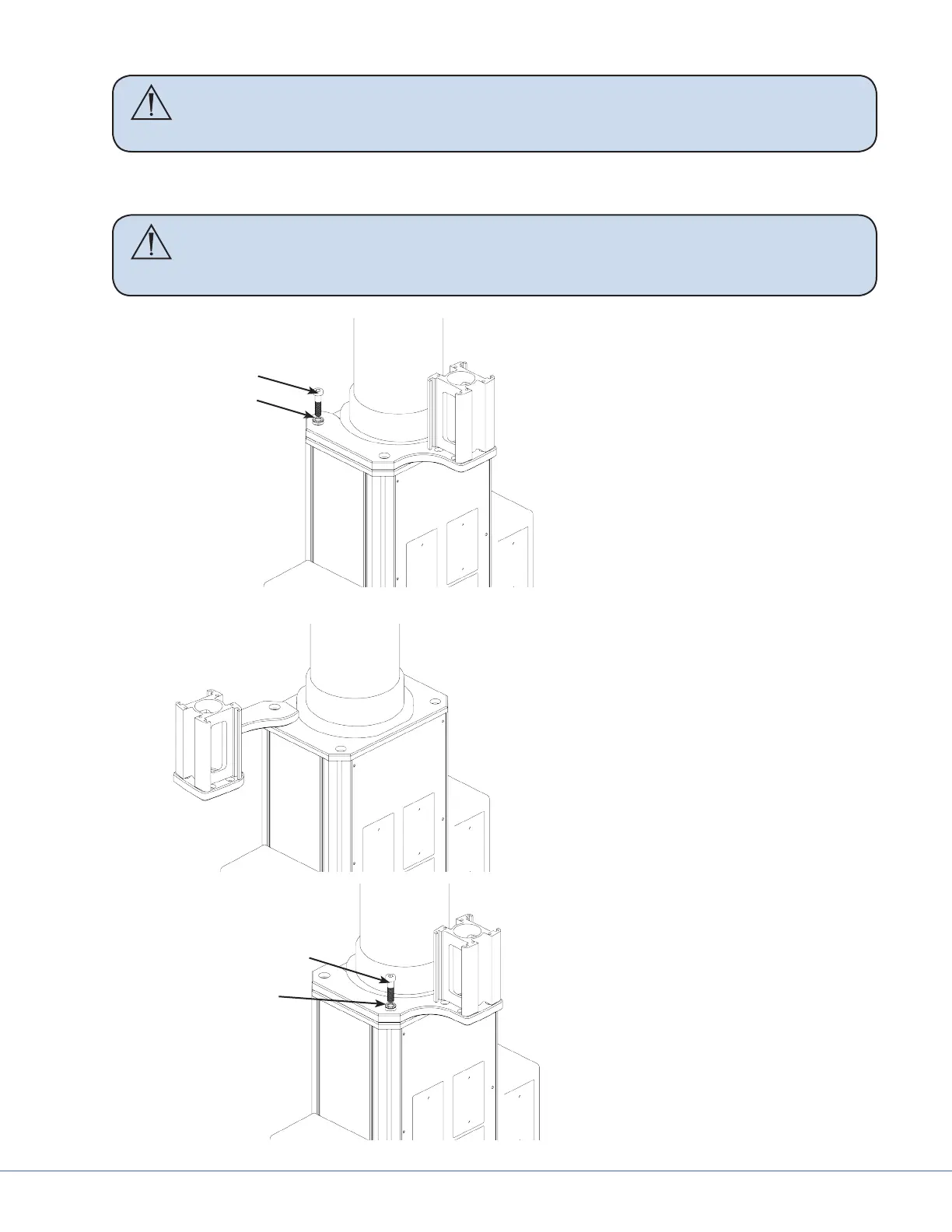

6. Use the Low Head, M10 X 40 SHCS that is supplied with the bracket to attach back of bracket to
the service head and tighten. Do not reuse the screw that was removed from the service head.
WARNING Reusing the 30mm screw that was removed from the service head to attach
the bracket can result in injury or damage to the service head and equip-
ment. Use the Low Head, M10 X 40 SHCS that is supplied with the bracket.
Low Head SHCS, M10
X 40
Washer
7. Rotate the bracket away from ser-
vice head and remove the opposite
screw and washer. Save washer but
discard screw.
8. Use the Low Head, M10 X 40
SHCS that is supplied with the
bracket to attach front of bracket to
the service head. Do not reuse the
screw that was removed from the
service head.
Low Head SHCS, M10 X 40
Washer
9. Tighten both mounting screws
with 7mm Hex Wrench and attach
cosmetic caps.
