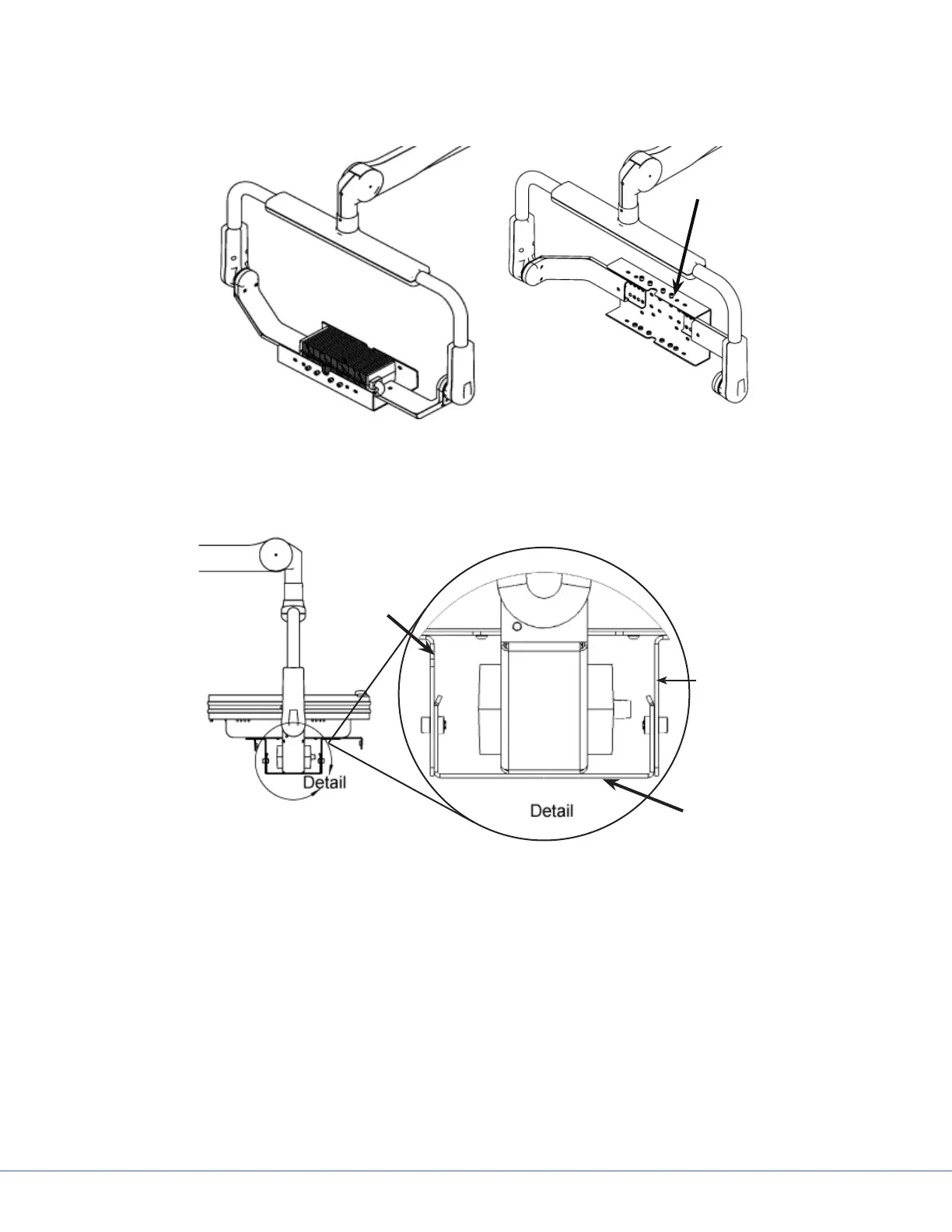

8. From the position shown in the next gure, rotate the Pivot Arms of the support bracket to de-

termine which side is the top to ensure that the monitor is installed right side up. e pivot arm

will rotate 90

in one direction only; the side that rotates up is the top.

Top

Bracket rotations

9. Place the monitor onto the Central Monitor Support Bracket so that the Monitor Vertical Adjust

bracket is seated outside the Central Monitor Support Bracket.

Vertical Adjust

Bracket

Vertical Adjust

Bracket

Central Monitor

Support

Monitor Vertical Adjust Bracket seated outside the Central Monitor Support Bracket

10. Align the safety guide slots on the Monitor Vertical Adjust Bracket with the center-most two

holes on the Central Monitor Support Bracket. Secure the brackets together using four M6

socket head screws, and loosely tighten using a 5mm Allen wrench. Do not tighten screws com-

pletely to allow the monitor to slide freely in the safety guides.

11. Tip the monitor up into a vertical position.

12. Slide the monitor backward or forward so that the end of the Monitor Vertical Adjust Bracket

sits ush with the back of the Central Support Bracket, or to provide enough space for the power

supply. Be sure that the handle does not touch the power supply.

13. Align the bracket adjustment holes on both brackets, and secure them together using four M6

socket head screws and serrated washers. Tighten all screws to 65 lb. in. (7.34 Nm) torque.

14. Connect the cables to the monitor.
