55
S
1 2

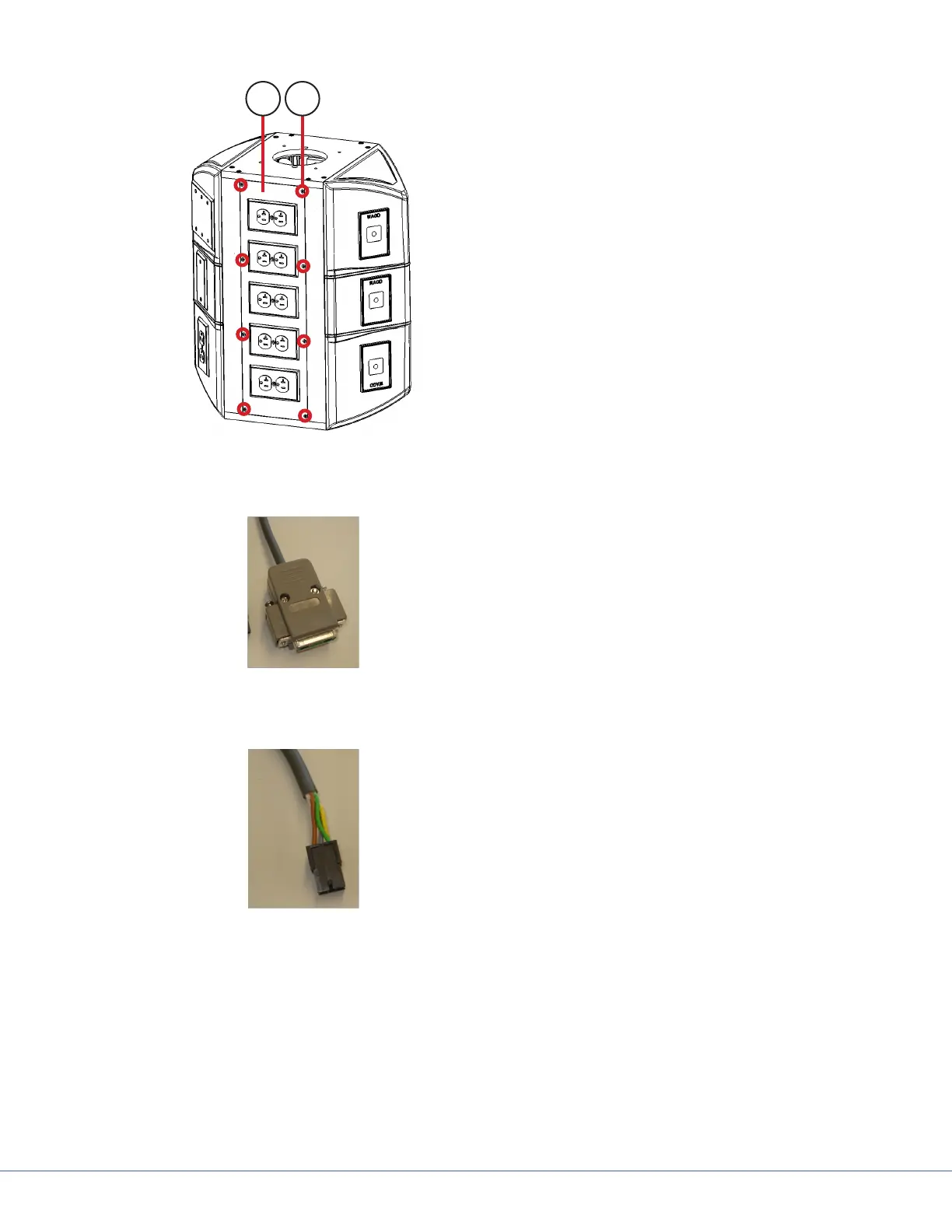

Location of Screws on Access Panel
9. Connect the control cable from the FLEX-
iS System to the connector on the bracket.
a. Using a Phillips screw driver, open the
access panel (Item 1) on the front or
back of the FLEXiS System by removing
the eight Phillips screws (Item 2).
Primary Control Cable
b. Locate the control cable connector in-
side the FLEXiS System. If this handle is
the main control interface of the boom
use the primary (larger) connector.
If this handle is an addition to a shelf
control use the extra cord provided with
the handle and connect to the second-
ary (smaller) control cable inside the
FLEXiS System.
Secondary Control Cable
To Next Page
