S CLASS™ 2 cutter User’s Manual
Maintenance 5-4
5.1.6 Changing the fuse
Before changing the fuse, make sure that the cutter is completely
disconnected from its power source.
For continued protection against risk of fire, replace only with the same
type and rating of fuse: T2AH 250V SCHURTER SPT OR EQUIVALENT.
1. To remove the fuse (3), lightly pry the fuse holder release clip (2) in the direction opposite
the power switch. The fuse holder will pop free.

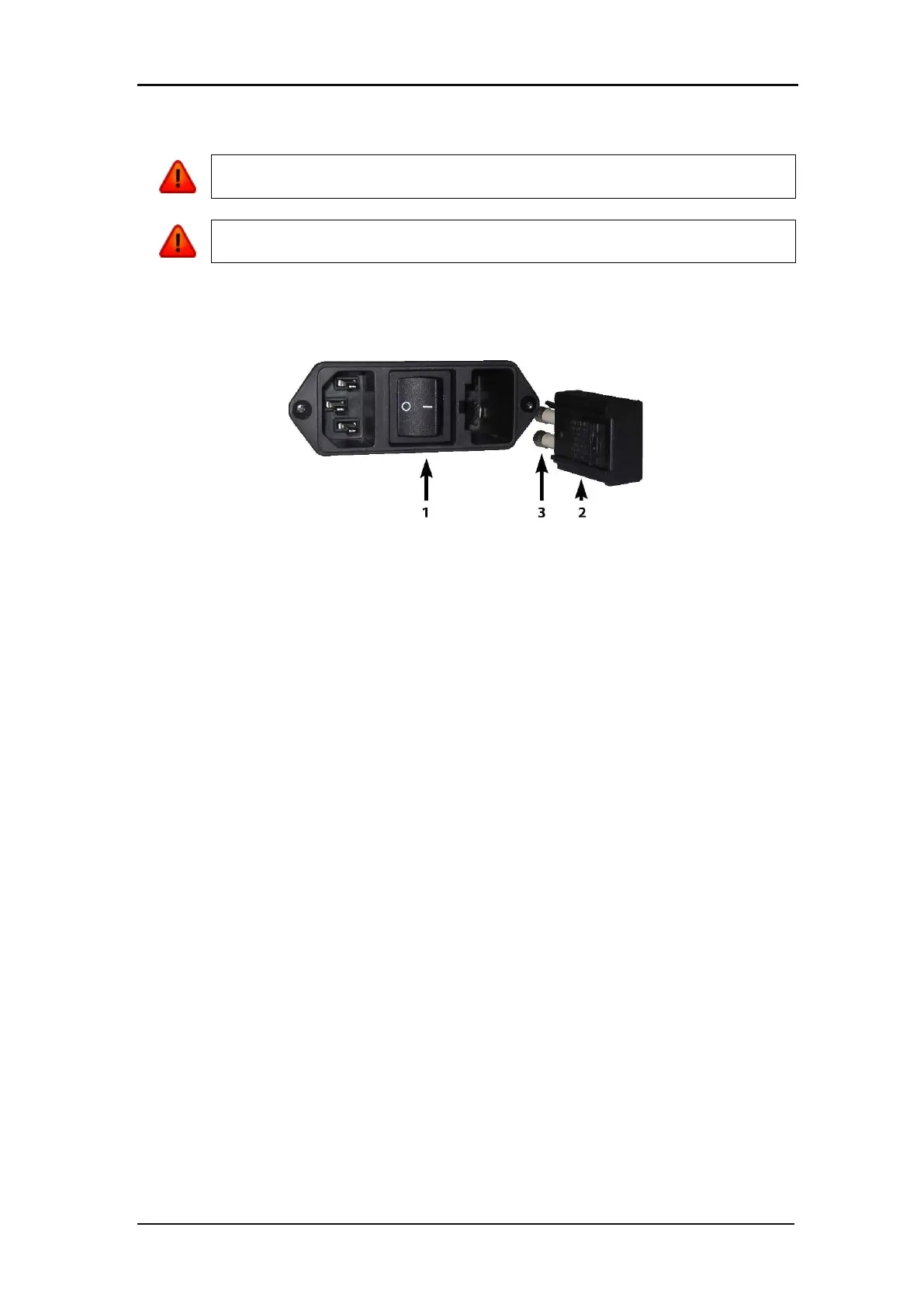

FIG 5-4
5-4 POWER ENTRY MODULE
2. Remove the fuse holder.
3. Pull the fuse from the holder.
4. Put the new fuse in the holder and clip the holder back into place.
