S CLASS2 cutter User’s Manual
OPOS 3-3
3.2.2 Different OPOS alignment methods
This parameter, although it is an internal parameter, should be set in the print and cut
software. Following options are usually available:
OPOS X: A row of marks is printed at the left and right side of the graphic. These marks are
read by the OPOS sensor and then used for compensating printing deformation.
OPOS XY: An extra line at the bottom of the job is printed (line
in the figure below), the
sensor reads it and can also compensate for deformations along the width of the machine.
OPOS XY2: Analogue to the bottom XY line, a line (line
in the figure below) is printed at the
top of the job for cutting large jobs more accurately.
OPOS XYXtra: Analogue to the bottom XY line, a line is printed between each left-right mark.

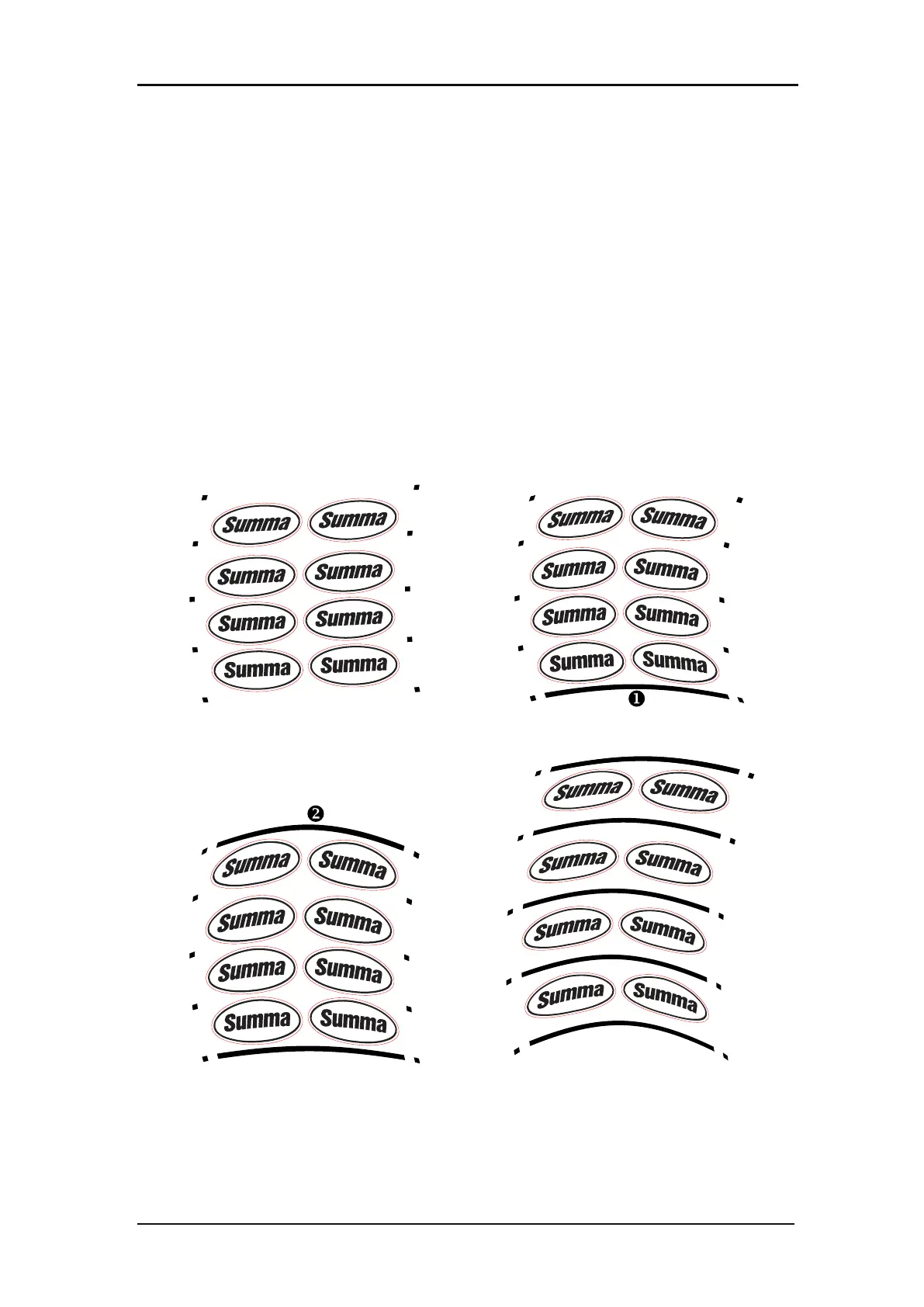

OPOS OPOS XY
OPOS XY2 OPOS Xtra
FIG 3-2
3-2 OPOS ALIGNMENT METHODS
