Loading media
The following procedures apply mainly to the use of roll media. If you are using sheets, there
are two options:
For long sheets, roll up the sheet so that the alignment is identical to that of a roll.
For short sheets, the alignment is not so important. If the sheet is cut off perpendicularly, it
can be aligned to the front border.
1.6.1 Pinch roller positioning
Proper movement of the media will only occur if the media is driven by the two outer pinch
rollers, which are correctly located over two drive sleeves.
The pinch rollers are lowered or raised simultaneously by means of the pinch roller lever arm,
located on the right-hand side of the cutter. The pinch rollers must be lifted to allow vinyl
loading, during which the media is fed from the rear of the cutter to the front. When raised, the
pinch rollers can be moved manually to the left or the right along the pinch roller shaft.
Always make sure that the pinch rollers are fully raised before sliding
them to the left or right.
Always hold the assembly at the side of the pinch roller to move it from left to
right. Do not reposition the pinch roller by holding the assembly at the rear of the
The pinch rollers MUST be positioned correctly and lowered onto the media before an
automatic load sequence is initiated. Make sure that all the pinch rollers are positioned above
a drive sleeve. The outer left pinch roller should be positioned in one of the detents (click
position), just underneath a white triangular label. The outer right pinch roller should be
positioned somewhere over the long drive sleeve. Click positions are located at the edges of
the sleeve (area marked with a white triangular label).

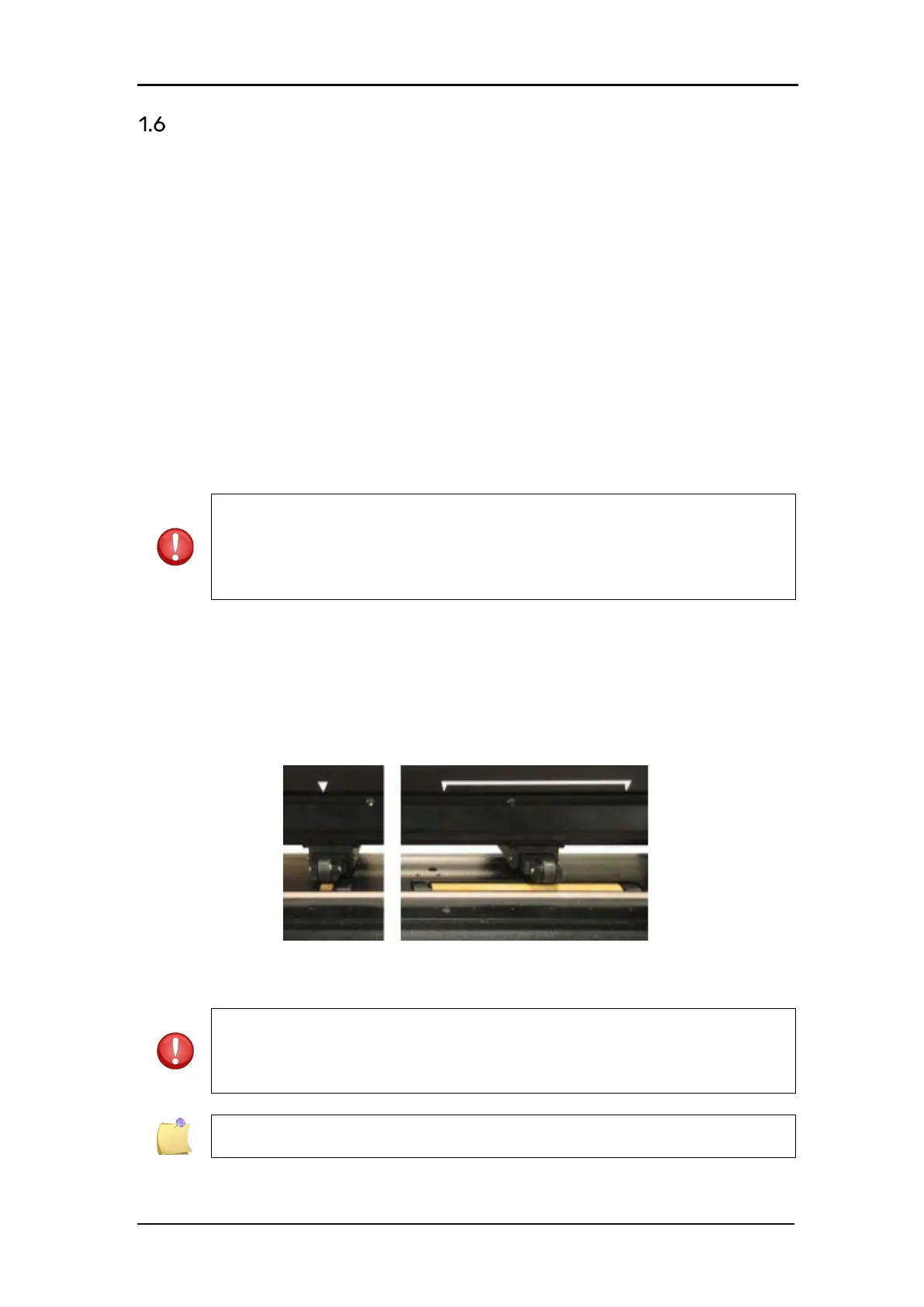

FIG 1-15
1-15 POSITION PINCH ROLLERS
CAUTION: Always leave the pinch rollers in the “up” position when the cutter is
not in use. Leaving the pinch rollers in the “down” position for a long time will
result in a flat spot in the pinch rollers, which will seriously [negatively] affect
tracking performance and cutting quality.
The pinch rollers are a kind of emergency stop. If they are raised, then every
