Summa S2 SERIES - 2.2 How to Set Tool Parameters

S CLASS™ 2 cutter User’s Manual
OPOS 2-7
How to Set Tool Parameters
The S CLASS 2 cutters can work with a knife, pen or pouncer. With the T version you have the
choice between drag knife and tangential knife.
Once a tool has been changed, the tool parameters (menu settings) must be reset or checked.
All the different tools have one parameter name in common: the pressure.
Each tool also has its specific parameters.
Tool parameters can be changed by either changing them in the current user, or simply by
changing the user (see section 2.1.5).
NOTE:
The S CLASS 2 cutters will only perform according to specifications if a
genuine Summa knife, pen or pouncing tool is installed. Do not replace the standard
knife, pen or pouncing tool with products from other manufacturers.
WARNING:
Each keystroke can initiate an internal test or movement of head or
media. Keep fingers and other body parts away from the cutting area. There are
hazardous moving parts.

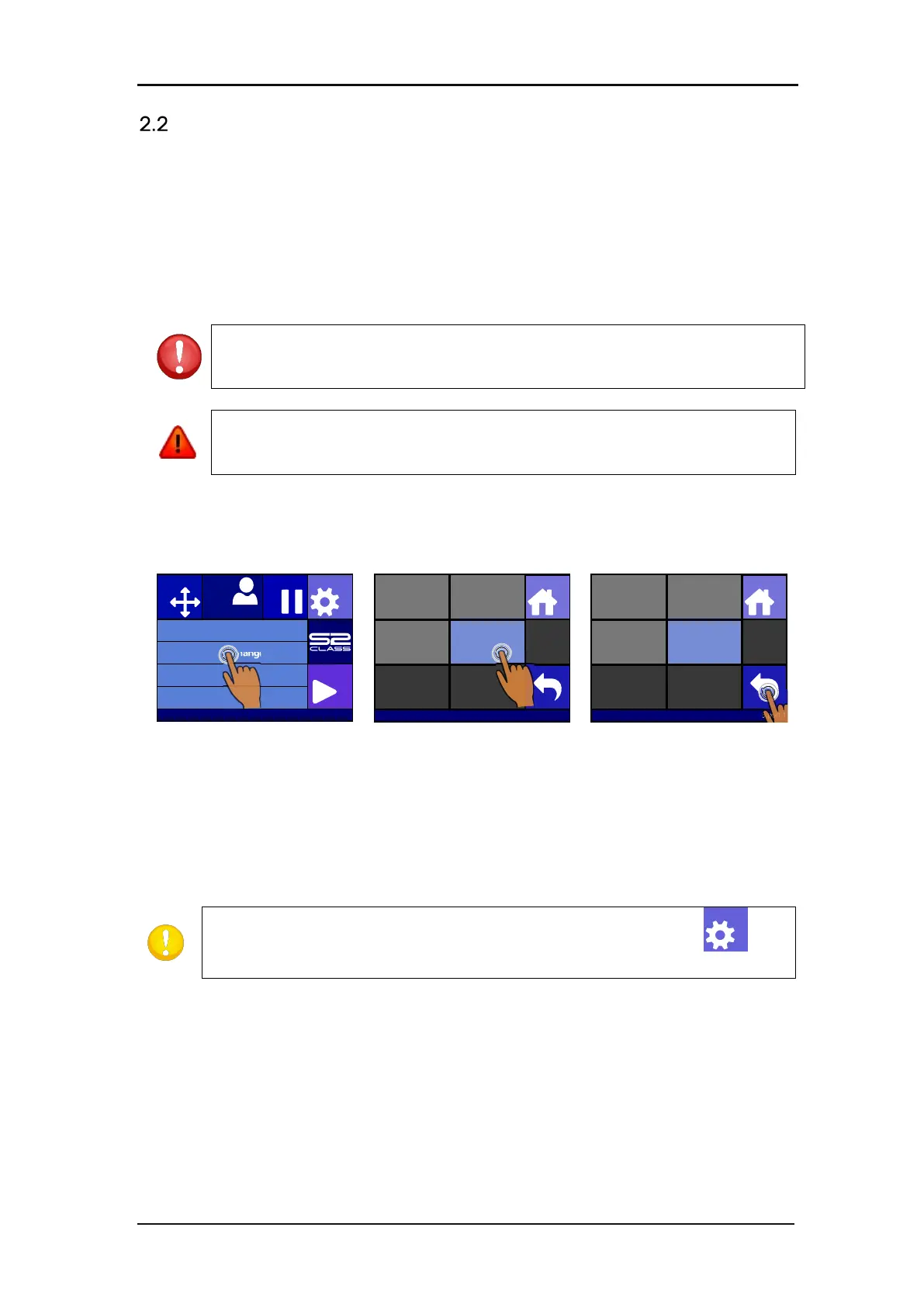

2.2.1 Setting the tool type
1. Power on the cutter and load the media.
2.
Press Tool
3.
Select tool
4.
Press Apply to select the
tool that is highlighted on
screen.
The cutter will prompt the user to change the tool if the default tool has been changed.
Knife pressure 95 gr
Velocity 800 mm/s
Tool Tangential knife
Media size 50000 x 718 mm
Actions
Settings
Configuration 1
Pause
Origin
USB port 1
USB port 1
Home
Pouncer Ballpoint
Dragknife
Tangential knife
USB port 1
Home
Pouncer Ballpoint
Dragknife
Tangential knife
NOTE: If no media is loaded, then access the tool menu by pressing . The
cutter will prompt the user after the media is loaded for a tool change if necessarry.
Settings
