S CLASS™ 2 cutter User’s Manual
Setup 1-3

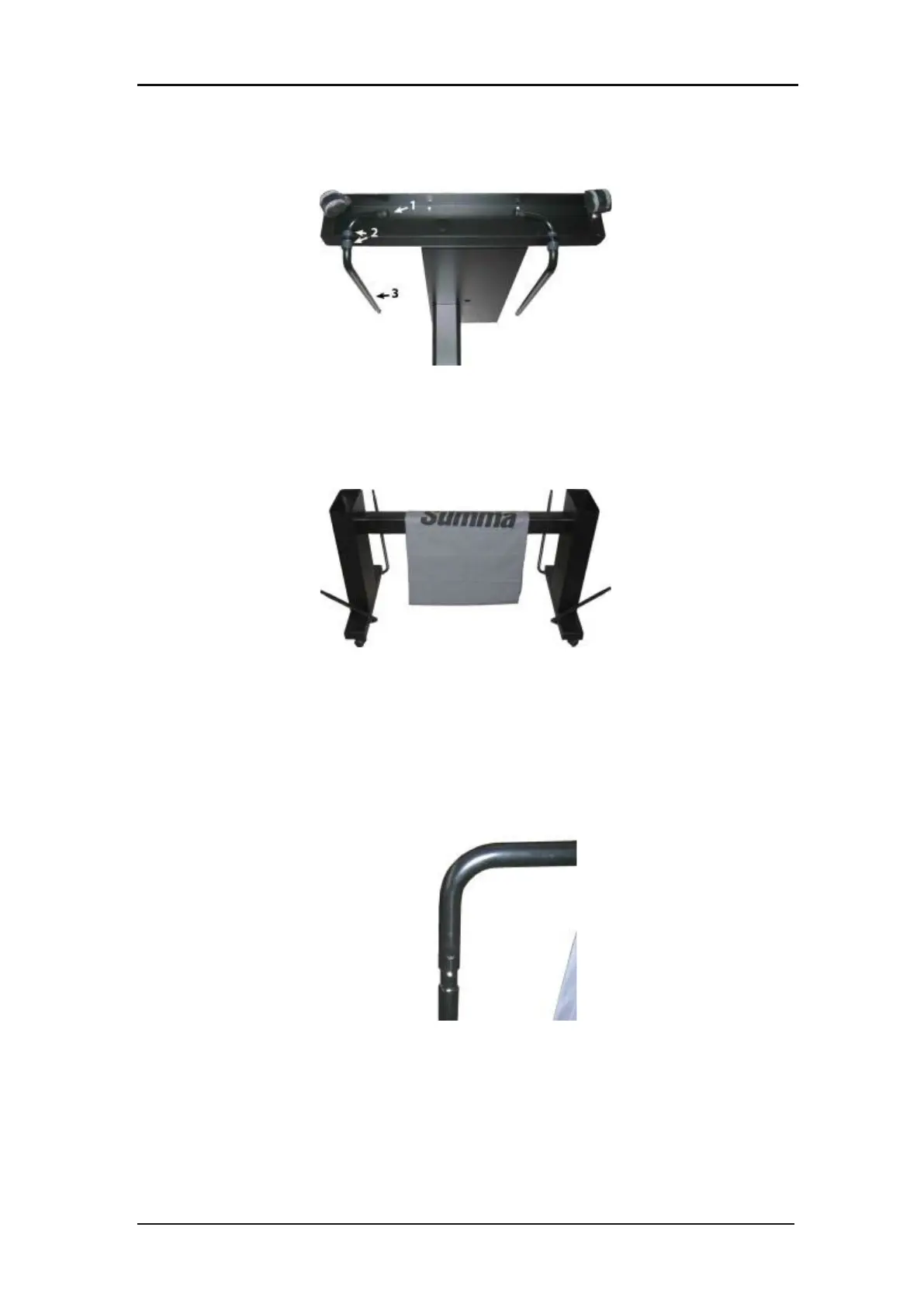

4. Attach the four tubes for the basket on the left and right, as shown in figure 1-5 below. Put
the end cap (1) and the two saddle clips (2) on each tube in order to fix the tube in its
place. Position the shorter tube (3) at the rear side (side of the horizontal panel).
FIG 1-5
1-5 MOUNTING THE BASKET TUBES
5. Turn the stand upright and put the media basket on the horizontal panel as shown in figure
1-6 below.
FIG 1-6
1-6 PREPARING TO INSTALL THE LINEN BASKET
6. Take one of the large c-shaped tubes and put it through the front hem in the linen basket.
Make sure the holes are oriented with the right side upwards, so that the tubes click in
place securely. Then put the tube on the two front tubes that stick out of the feet. Slide the
tubes together while pressing down the spring-loaded ball stopper until the ball locks into
place.
FIG 1-7
1-7 ORIENTATION OF THE HOLES IN THE C-SHAPED TUBES
7. Click a saddle clip onto one side of the tube. Insert the other end of the tube through the
middle hem of the linen basket and then into the hole in the leg of the stand. Guide the
other end of the tube into the hole on the leg and secure with a saddle clip.
